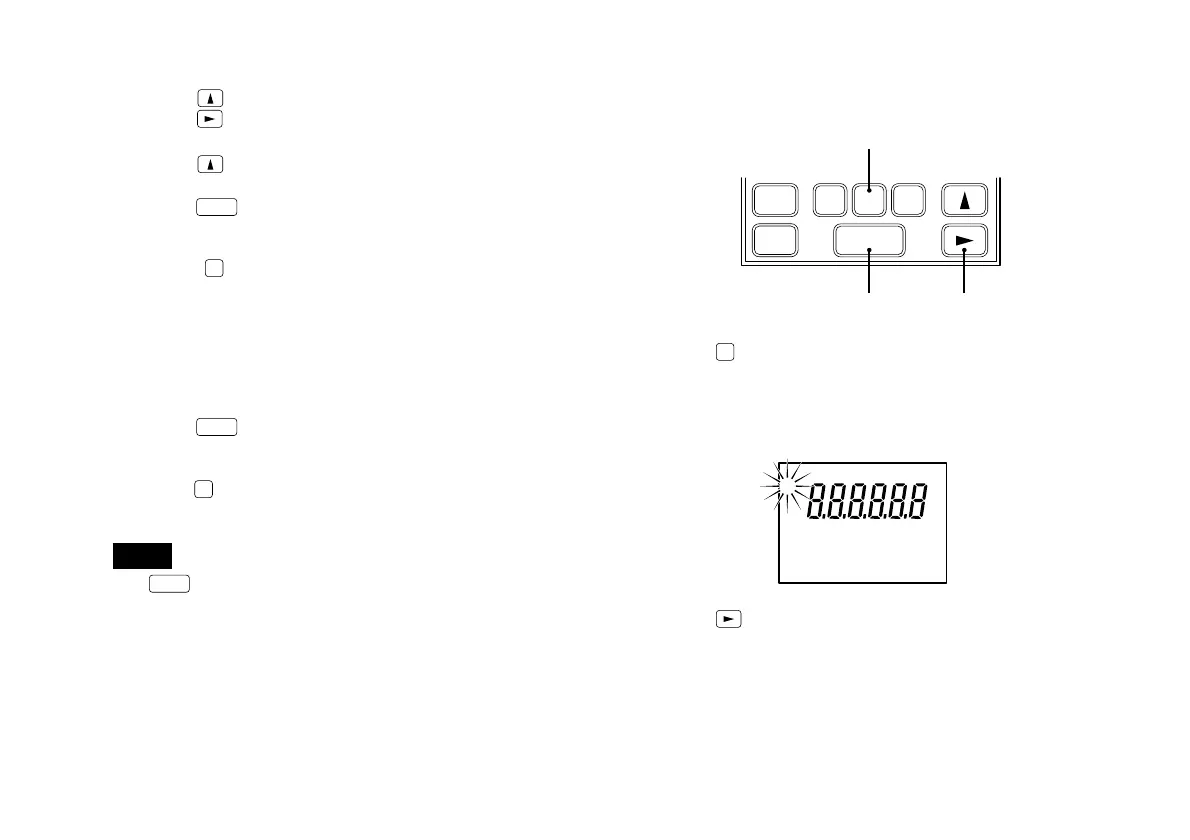

5-2-2. Setting the measuring mode
1 Push
MODE
to select the mode for setting a measuring
mode (current value, maximum value, minimum value,
or peak-to peak value) for channel A.
∗ Each of there modes are indicated “A”, “MAX”, “M IN”
and “P-P”, respectively.
2 Push to select a measuring mode.
The selected mode’s indicator flashes.
M A X M I N P ―P
A
3, 6 2, 5
1, 4, 7
SET
P
MODE COMP
RESET
B
RESET
A
2 Push to select a sign.
Push
to select a digit to be set.
The selected digit flashes.
Push to select a numeral.
3 Push
SET
to set.
P for A channel flashes.
4 Push
P
to select B channel preset value setting
mode.
B channels sign flashes “+”.
Single channel models return to the measuring state.
5 Same as 2.
6 Push
SET
to set.
Both A/B channel P flashes.
7 Push
P
to returns to the measuring state.
Both A/B channel P lights.
Note
• If
SET
is not pressed the previous setting is kept.
• In the P-P measuring mode, the preset value cannot
be set.
