Quattro DC Display Data D0 Menu
86
Parameter Description Units
Hidden
Item
RX LOGIC INPUT
(Serial Communications Logic Inputs)
Bit Name Description/Reason
0 AUX_RUN_BIT Serial Run Command bit from car controller
1
AUX_FLT_RST_REQ_BIT Serial Fault Reset Request from
car controller
2
AUX_PT_CLK_BIT Serial Pre-Torque Latch Clock Bit from
car controller
3
AUX_LOW_GAIN_BIT Serial Low PI Gain Control Bit from
car controller
4
AUX_RAMP_DWN_EN_BIT Serial Ramp Down Enable Bit
from car controller
5
AUX_BRAKE_PICK_BIT Serial Brake Pick Command Bit
from car controller
6
AUX_BRAKE_HOLD_BIT Serial Brake Hold Command Bit
from car controller
7
AUX_OSPD_TST_BIT Serial Overspeed Test Request Bit
from car controller
8 AUX_LBEF_BIT Serial Field Enable Bit from car controller
9
AUX_FLD_STANDBY_ENABLE_BIT Serial Field Standby
enabled (field goes from full field to standby field using
STNDBY FLD TIME (A1)) from car controller
10
AUX_FULL_FIELD_BIT Serial Full Field Bit with auto field
weakening when appropriate
11
N/A
1=true
0=false
N

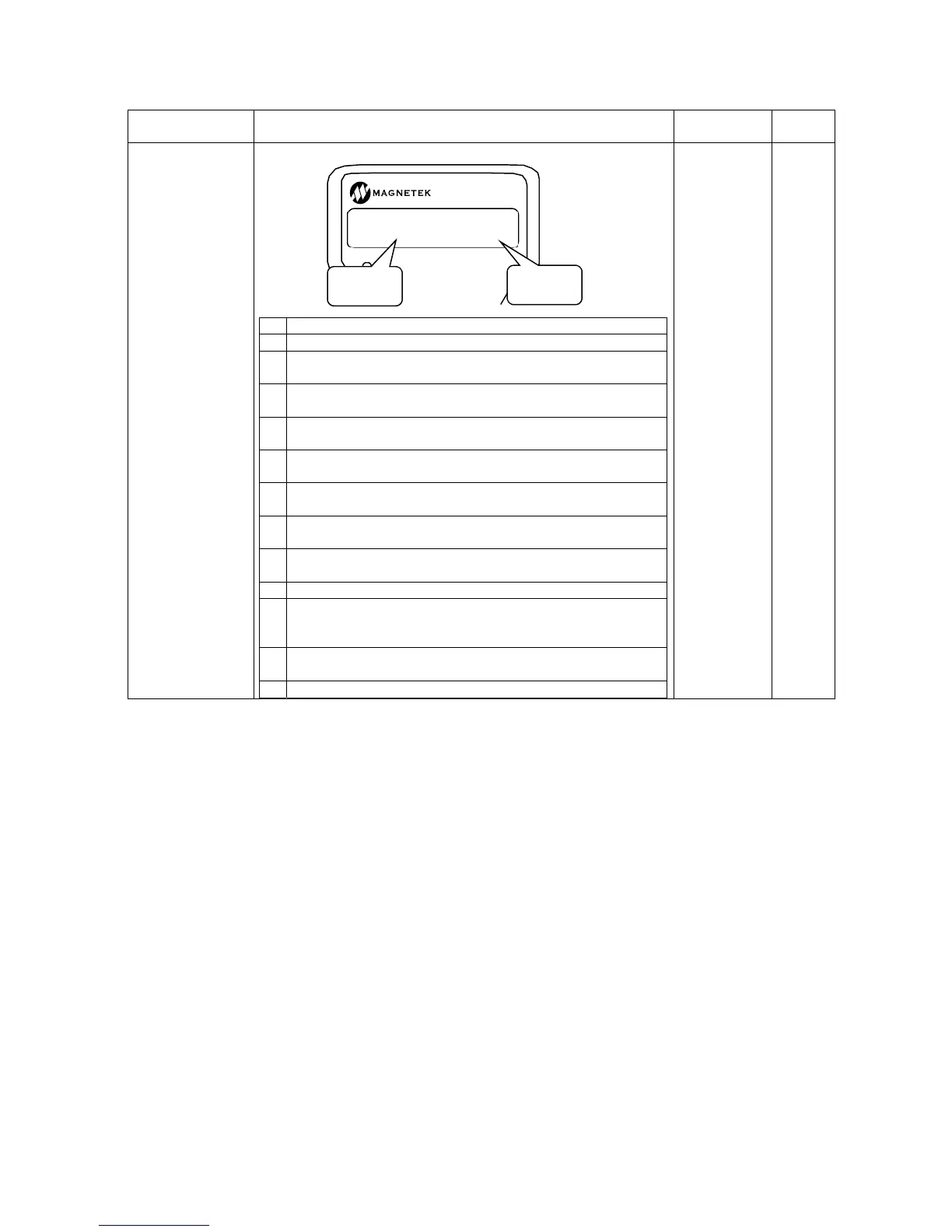

Table 15: Elevator Display Data D1 Submenu
RUN/FAULT
SUB MENU
DATA ENT
RX LOGIC INPUT
D1 0000-0000-0000
Bit 0
Bit 11
