Quattro DC Utility U0 Menu
94
LS DRIVE INFO
(Drive Information)

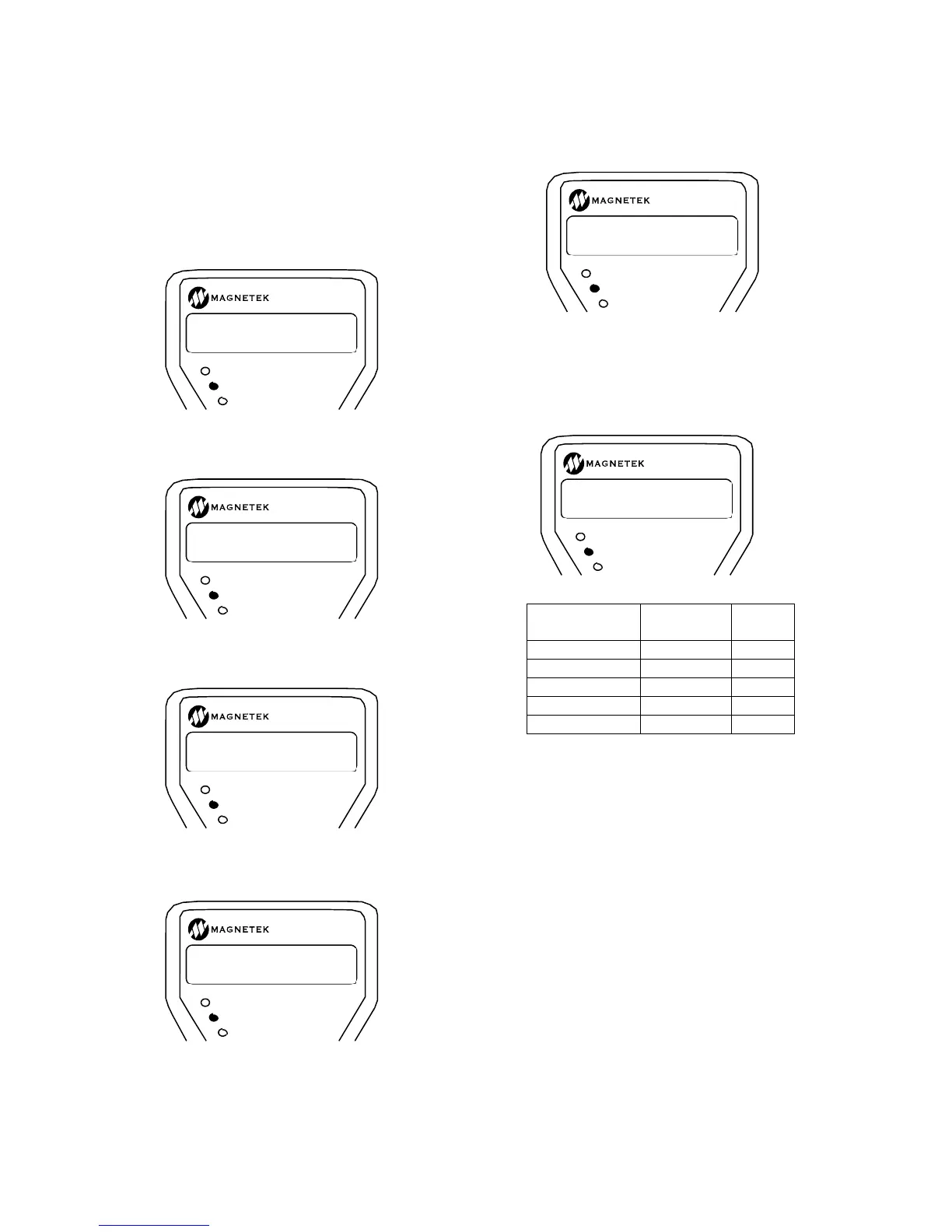

Six different screens are included in this sub-
menu, each display an identification number.
LS TYPE Screen
Shows the type of drive the software is
installed in:
LS CODE VERSION
Shows the version of code located in the Line
Side portion of the drive.
LS S/W DATE Screen
Gives the date of the released Line side code
version.
LS S/W TIME Screen
Displays the time of the released Line side
code version.
LS FPGA REV Screen
Gives the revision number for the Line side
FPGA.
LS CUBE ID Screen
Displays the cube identification number of the
drive. This number identifies specific drive
ratings related to detected equipment
hardware.
Ampere
Rating of drive
Model
Number
Cube
ID #
125A QDC125- 155
150A QDC150- 157
200A QDC200- 167
250A QDC250- 169
300A QDC300- 171
HEX MONITOR
(Hex Monitor)
The hex monitor was designed for fault and
parameter diagnostics. It is intended for use
by Magnetek personnel only. The Hex Monitor
contains 3 addresses for viewing. Address 1
may only be displayed in U8, whereas Address
2 and Address 3 may be viewed in either U8,
or D1, or may be programmed to an analog
output.
RUN/FAULT
SUB MENU
DATA ENT
LS TYPE
U7 GENERIC
RUN/FAULT
SUB MENU
DATA ENT
LS CODE VERSION
U7 A4410-L0202
RUN/FAULT
SUB MENU
DATA ENT
LS S/W DATE
U7 Mar 2 2010
RUN/FAULT
SUB MENU
DATA ENT
LS S/W TIME
U7 13:12:06
RUN/FAULT
SUB MENU
DATA ENT
LS FPGA REV
U7 34
RUN/FAULT
SUB MENU
DATA ENT
LS CUBE ID
U7 157
