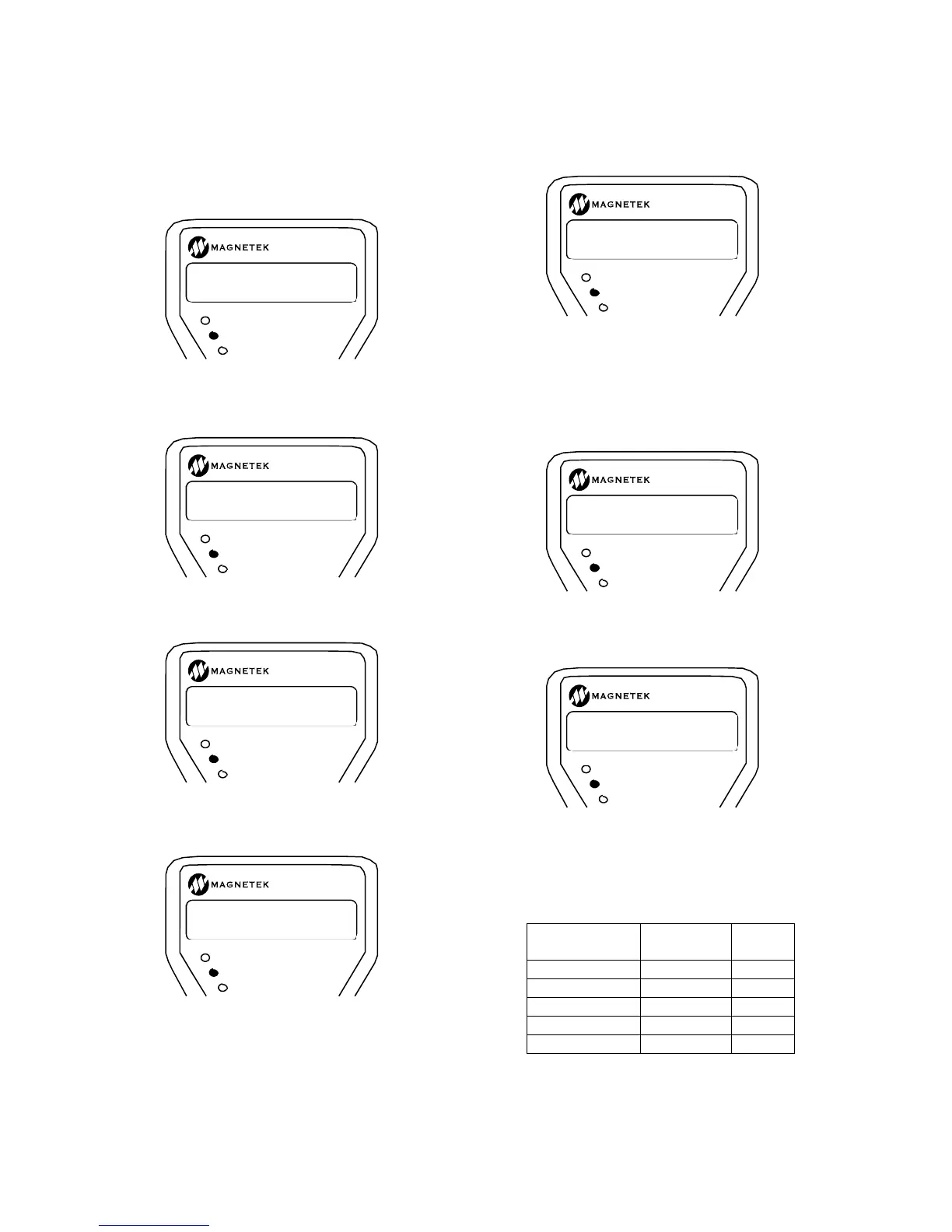

Quattro DC Utility U0 Menu
93
MS PLATFORM
Shows the platform of the drive. This display
should correspond with the selection of J1
jumper on the Product Interface Board. See
Testpoints (Product Interface Board – Other)
on page 131.
Field Module
Gives the version of field module detected by
the code.
MS CODE VERSION
Shows the version of code located in the Motor
Side portion of the drive.
MS S/W DATE Screen
Gives the date of the released motor side code
version.
MS S/W TIME Screen
Displays the time of the released motor side
code version.
MS PIB MODULE Screen
Gives the revision number for the motor side
product interface board. When 2 is displayed,
the product interface board is a -0010 or -0020
version. When 3 is displayed, the product
interface board is a -0030 and is capable of
EN81-1 Base Enable functionality.
MS FPGA REVISION Screen
Gives the revision number for the motor side
FPGA.
MS CUBE ID Screen
Displays the cube identification number of the
drive. This number identifies specific drive
ratings related to detected equipment
hardware.
Ampere
Rating of drive
Model
Number
Cube
ID #
125A QDC125- 156
150A QDC150- 158
200A QDC200- 168
250A QDC250- 170
300A QDC300- 172
RUN/FAULT
SUB MENU
DATA ENT
MS CODE VERSION
U6 A4420-DU0214
RUN/FAULT
SUB MENU
DATA ENT
MS S/W DATE
U6 Ma
y
27 2011
RUN/FAULT
SUB MENU
DATA ENT
MS S/W TIME
U6 09:50:19
RUN/FAULT
SUB MENU
DATA ENT
MS FPGA Revision
U6 34
RUN/FAULT
SUB MENU
DATA ENT
MS PLATFORM
U6 Q2B Series
RUN/FAULT
SUB MENU
DATA ENT
FIELD MODULE
U6 40 AMP H VLT
RUN/FAULT
SUB MENU
DATA ENT
MS PIB MODULE
U6 3
