For 12EX:

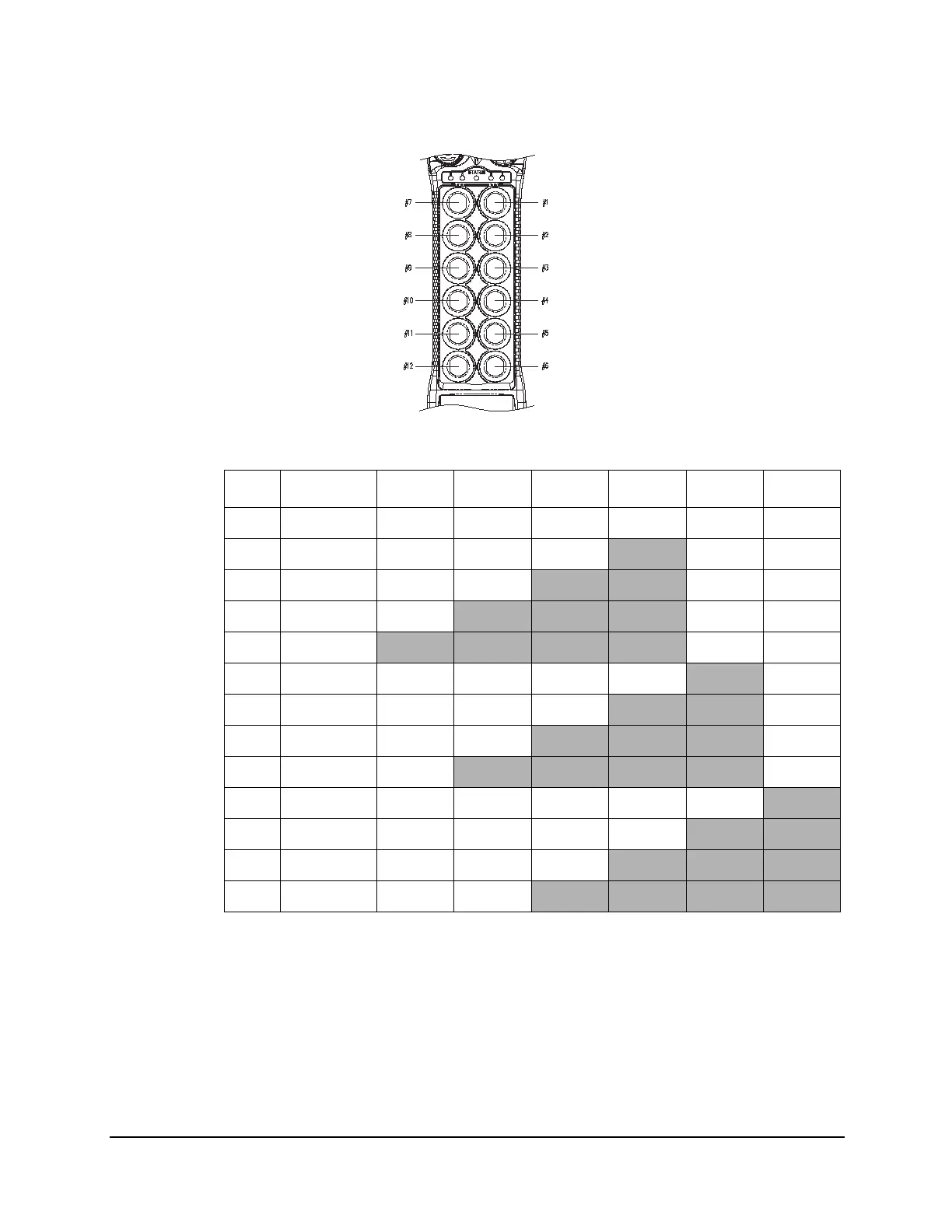

Fig. 15
NOTE: *PB12 is not available on the A/B transmitters
PB7…PB12 Pushbutton number
Normal Normal momentary contact
LED 1…LED 4 Transmitter toggled with designated LED Display
DIP PB7 PB8 PB9 PB10 PB11 PB12*
64 00000000 Normal Normal Normal Normal Normal Normal
65 00000101 Normal Normal Normal
LED 4 Normal Normal
66 00010100 Normal Normal
LED 3 LED 4 Normal Normal
67 00010101 Normal
LED 2 LED 3 LED 4 Normal Normal
68 00010110
LED 1 LED 2 LED 3 LED 4 Normal Normal
69 00001001 Normal Normal Normal Normal
LED 4 Normal
70 00010111 Normal Normal Normal
LED 3 LED 4 Normal
71 00011000 Normal Normal
LED 2 LED 3 LED 4 Normal
72 00011001 Normal
LED 1 LED 2 LED 3 LED 4 Normal
73 00001101 Normal Normal Normal Normal Normal
LED 4
74 00011010 Normal Normal Normal Normal
LED 3 LED 4
75 00011011 Normal Normal Normal
LED 2 LED 3 LED 4
76 00011100 Normal Normal
LED 1 LED 2 LED 3 LED 4
