17 - ANTI-FREEZE
This sticker indicates that there is anti-freeze in the engine.
When protection is provided by anti-freeze with properties differing from the original, the -30°or
- 40°C box must be ticked.
18 - A XY DRIVENABLE PENDULAR ARM

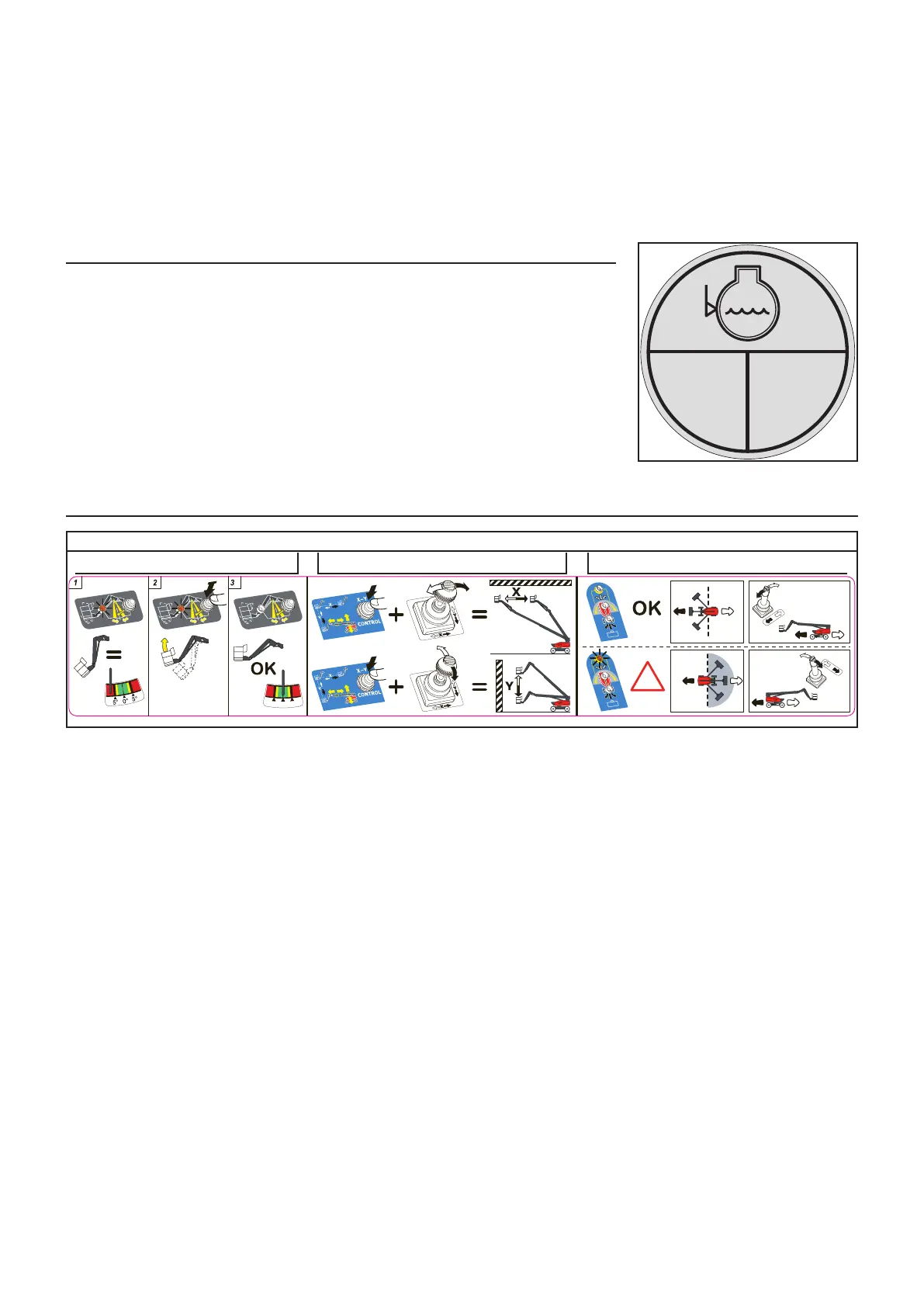

1  BASKET HORIZONTAL LEVELLING FUNCTION
Lifting platforms 260 TJ and 280 TJ are fitted with a horizontal alignment system for the basket. The sticker (see Fig. 18A-2) on the pendular
unit joint enables you to see the inclination of the pendular unit.
When the basket pendular unit assembly is within the red and yellow zones, the orange indicator light comes on. In this zone, continuously
pressing the basket horizontal levelling button causes the pendular unit to move until the basket is horizontal.
2 - X-Y CONTROL FUNCTION
X function:
- Pressing the XY-Control button simultaneously with a telescope extension or retraction control enables the basket to remain in the same
horizontal position while moving.
Y function:
- Pressing the XY-Control button simultaneously with a raising or lowering control enables the basket to remain in the same vertical
position while moving.
3  TRANSLATION DIRECTION REVERSAL WARNING
When the telescope crosses beyond the lifting platform’s median axis (represented by the hatched line) and is in the grey zone, the orange
indicator light on the basket console comes on. This light indicates that the basket’s direction of travel is opposite to that of the chassis.
Reminder: white arrow = forward motion.
Identify the lifting platform’s direction of travel by referring to the black and white arrows on the chassis (See § 1 and 2).
