2-35

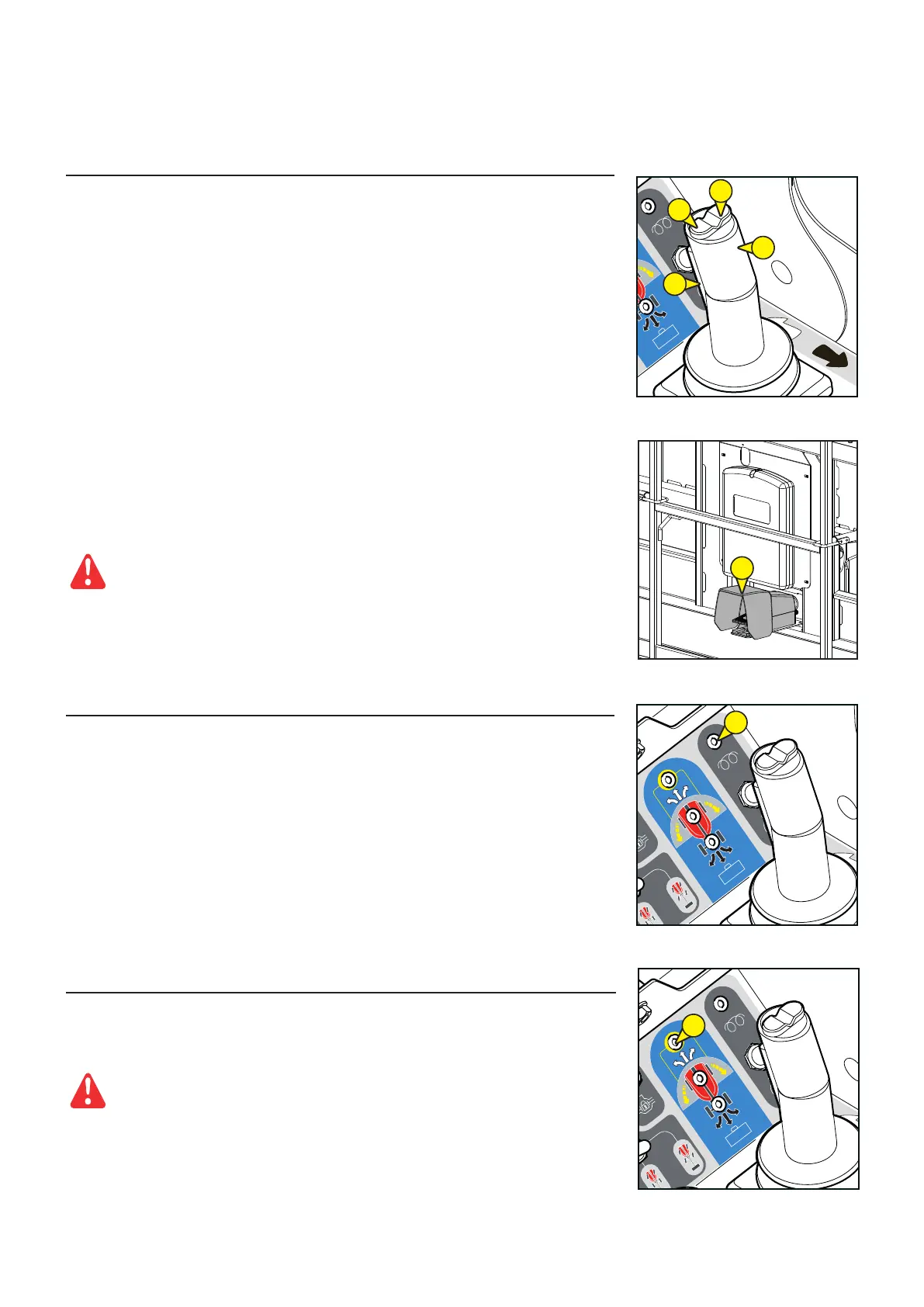

23 - LIFTING PLATFORM FORWARD / REVERSE MOTION CONTROL LEVER
- Lever 23 enables you to move the lifting platform.
- You must press trigger A together with the Dead Man’s pedal (see Rep.46) to perform
movements from the lifting platform’s control box.
- When the pedal or trigger A is released, no commands can be issued.
NB: This is a progressive control lever, which provides you with great accuracy in approach. It
must be manipulated flexibly, without jerking.
FORWARD TRANSLATION
- Push the lever forwards.
REAR TRANSLATION
- Pull the lever backwards.
STEER RIGHT
- Press button D.
STEER LEFT
- Press button G.
When the turret / arm structure is rotated more than 90° with respect to the chassis,
there is a correspondence between the direction of translation shown by the
arrows affixed to the chassis and those on the basket control console (white and
black arrows). Always refer to the arrows on the machine’s chassis to learn the
translation direction.
24 - PRE-HEATING LED
The LED comes on when the machine is switched on:
- Either by turning the ignition key on the base (the timing is identical to that shown on the bar
graph on the screen).
- Or by rearming the Emergency Stop on the basket console in the lifting platform.Wait until
the indicator light goes out before operating the starter button.
25 - TURRET ORIENTATION OVER 90° LED
This orange LED comes on when the telescope crosses over the lifting platform’s median axis
and is in the grey zone. It is advisable to identify the lifting platform’s direction of travel by
referring to the black and white arrows on the chassis (seer SECTION 1 - §: SAFETY STICKERS).
This LED shows that the direction of travel in the basket is opposite to that of the
chassis.
Reminder: white arrow = forward travel.
46
23
A
G
D
24
25
