Manitou 280 TJ - Dimensions 280 Tj

2-18

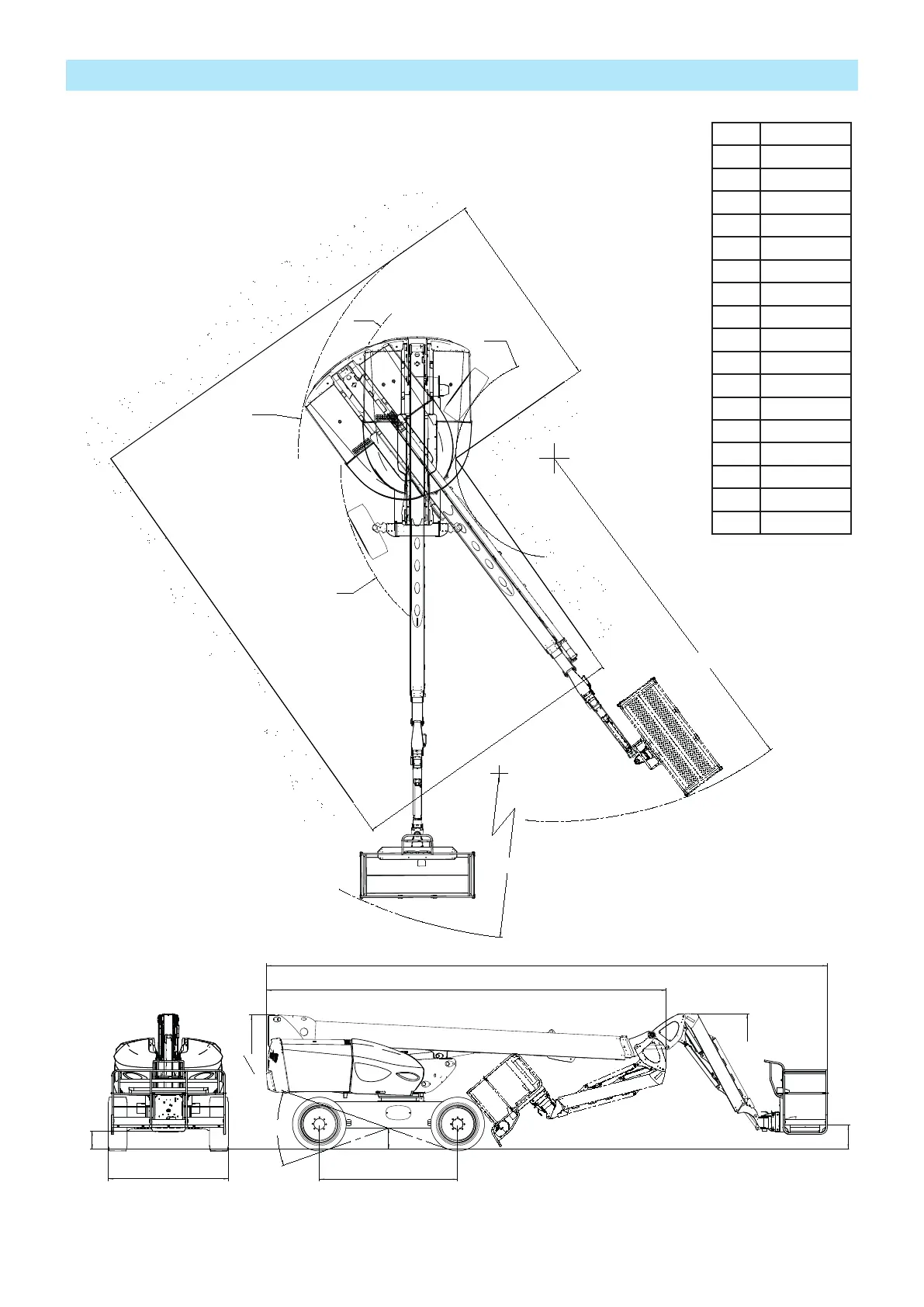

DIMENSIONS 280 TJ
F
D
E
C1
A1
C
G
P
B
A
B
H
I
M
L
K
N
J
O
A 11355 mm
A1 8040 mm
B 2800 mm
C 2750 mm
C1 2725 mm
D 2430 mm
E 430 mm
F 375 mm
G 500 mm
H 2000 mm
I 4330 mm
J 4420 mm
K 5180 mm
L 9750 mm
M 7340 mm
N 4030 mm
O 5710 mm
P 39° - 80%
647382 EN (01/02/2015)
