Manitou 280 TJ - Basket Control Station; Pendular Arm Raising and Lowering and Turret Rotation Control; Telescope Extension and Retraction Control

2-34

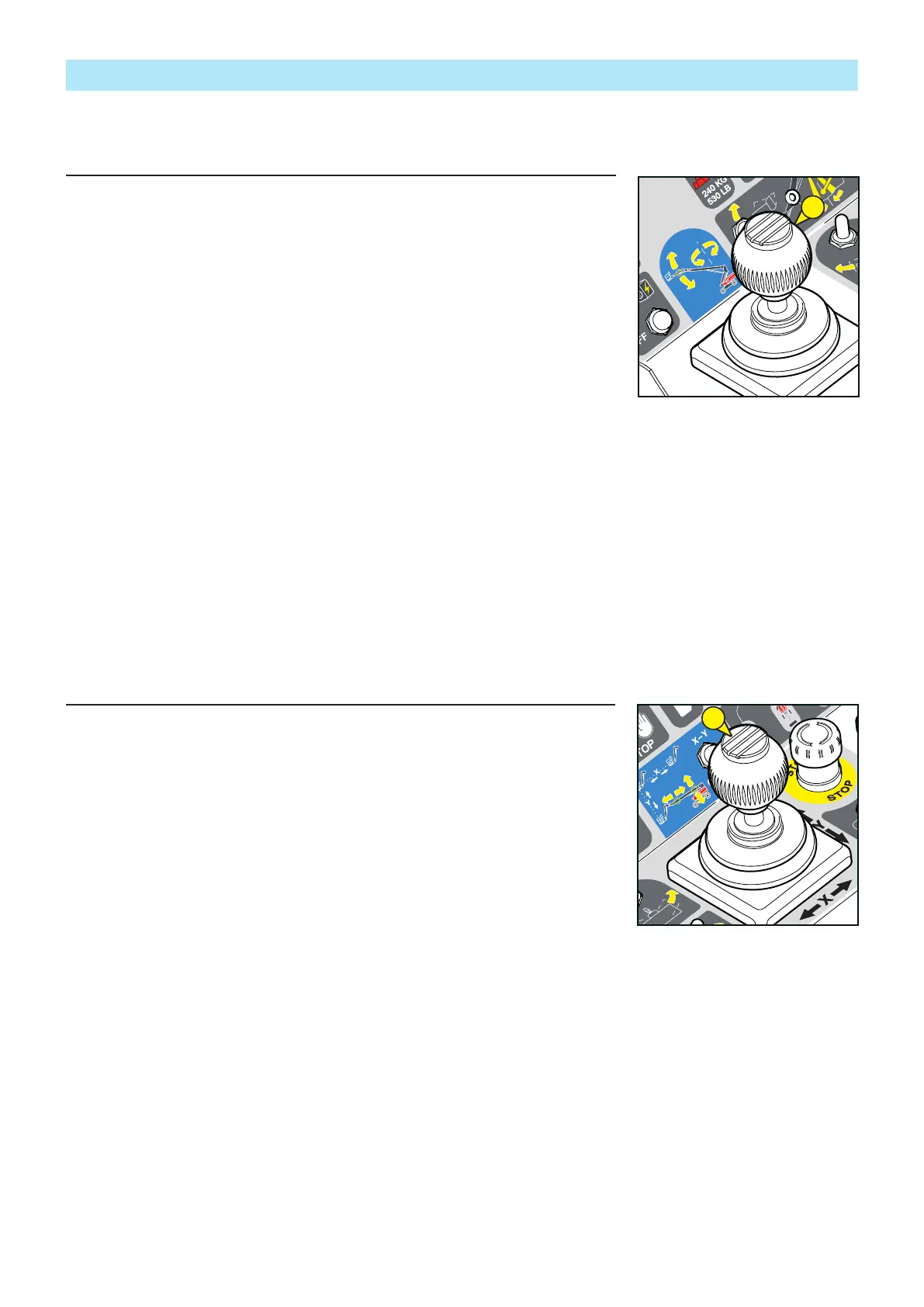

BASKET CONTROL STATION
21 - PENDULAR ARM RAISING AND LOWERING AND TURRET ROTATION CONTROL
- Lever 21 enables you to raise the pendular unit and rotate the turret.
NB: This is a progressive control lever, which provides you with great accuracy in approach. It
must be manipulated flexibly, without jerking.
TO RAISE THE PENDULAR UNIT
- Push the lever upwards.
TO LOWERING THE PENDULAR UNIT
- Pull the lever downwards.
ROTATING RIGHT
- Push the lever to the right.
ROTATING LEFT
- Push the lever to the left.
22 - ARM – TELESCOPE RAISING AND LOWERING, TELESCOPE EXTENSION AND RETRACTION CONTROL
- Lever 21 enables you to raise the arm and the telescope and to extend or retract the telescope.
NB: This is a progressive control lever, which provides you with great accuracy in approach. It
must be manipulated flexibly, without jerking.
TO RAISE THE ARM
- Push the lever upwards.
TO LOWER THE ARM
- Pull the lever downwards.
EXTENDING THE TELESCOPE
- Push the lever to the left.
RETRACTING THE TELESCOPE
- Push the lever to the right.
21
22
647382 EN (01/02/2015)
