Manitou 280 TJ - Dimensions 260 Tj

2-16

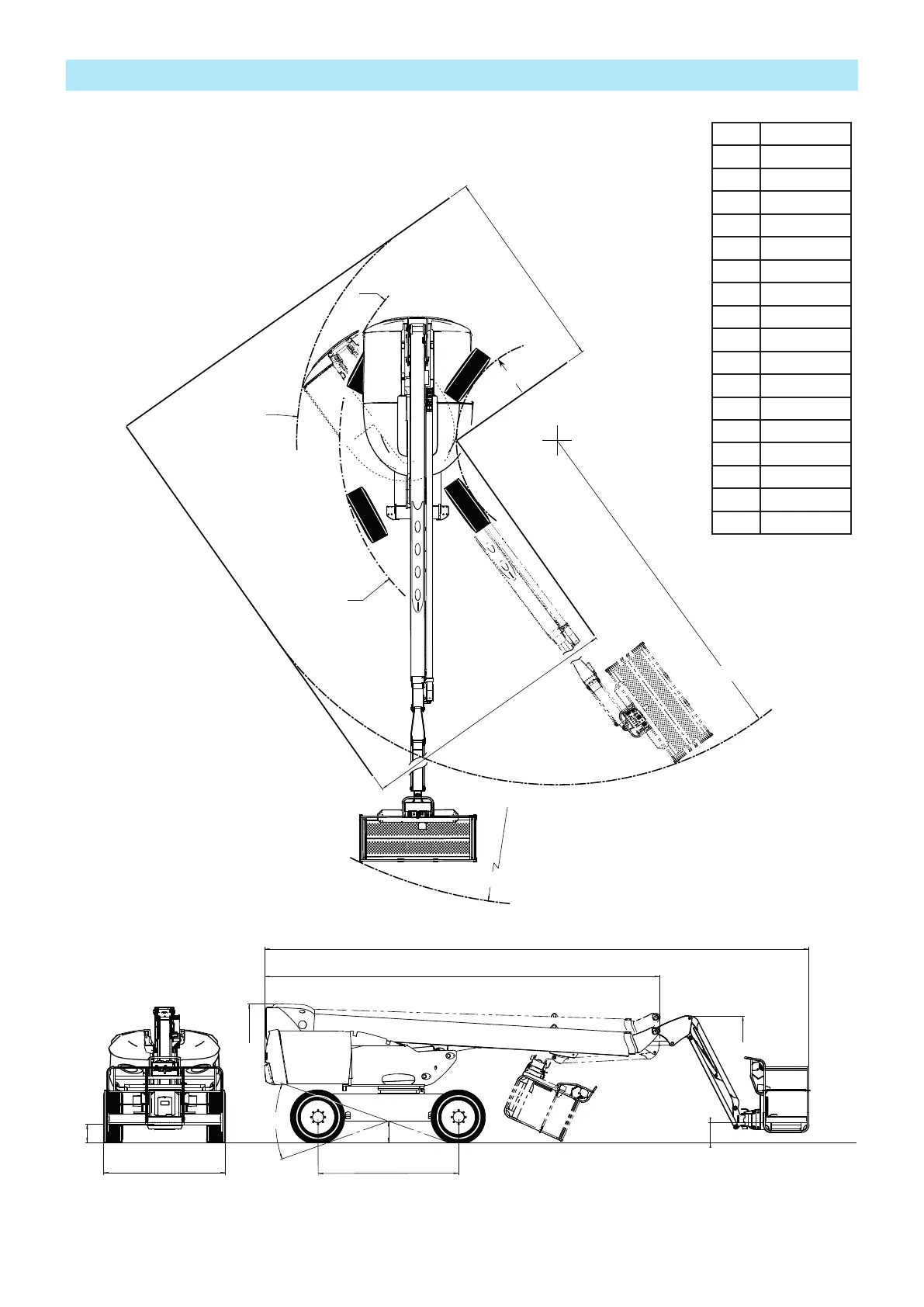

DIMENSIONS 260 TJ
G
C
E
C1
P
A1
F
L
M
K
N
H
J
O
I
D
A
B
A 10840 mm
A1 7880 mm
B 2800 mm
C 2510 mm
C1 2705 mm
D 2430 mm
E 410 mm
F 355 mm
G 385 mm
H 2000 mm
I 4330 mm
J 4420 mm
K 5180 mm
L 9270 mm
M 6845 mm
N 4030 mm
O 5160 mm
P 39° - 80%
647382 EN (01/02/2015)
