2-31

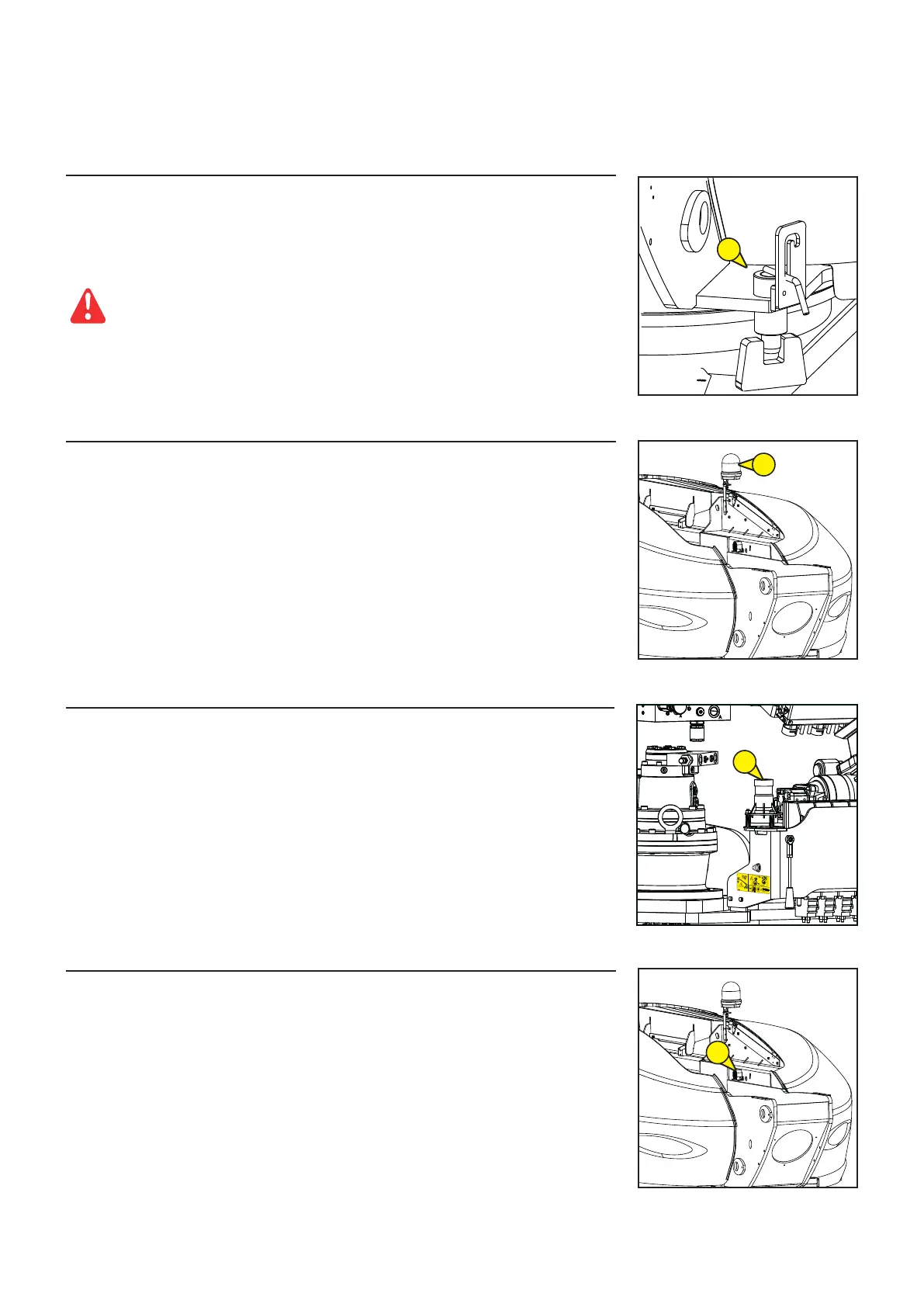

15 - BLOCKING TURRET ROTATION
- This pin must be used to lock the turret rotation when the lifting platform is transported by
truck or by some other means of transport (train, etc...).
- Swivel the pin to the left.
- Push the pin into the hole in the turret provided for this purpose to lock it.
Remember to remove the turret locking pin when using the lifting platform.
16 - FLASHING LIGHT
- The flashing light comes on automatically when the lifting platform is in translation or when a
raising or lowering movement is instructed.
17 - TILT SENSOR
- This sensor controls the safety buzzer 47 when the lifting platform has reached the maximum
authorised level of tilt. The buzzer sounds intermittently (see the “SAFETIES” section).
- Two LEDs located under the tilt sensor show its operating status:
• Red LED lit: maximum permissible tilt not yet reached.
• Yellow and red LEDs lit: maximum permissible tilt reached.
18 - BUZZER
- This buzzer (fixed to the inside of the turret near to the flashing light) is activated when button
27 on the basket control station is pressed.
15
16
17
18
