Manitou 280 TJ - Operated Ignition Switch; Tarter Button

2-26
GROUND MAINTENANCE AND RESCUE STATION

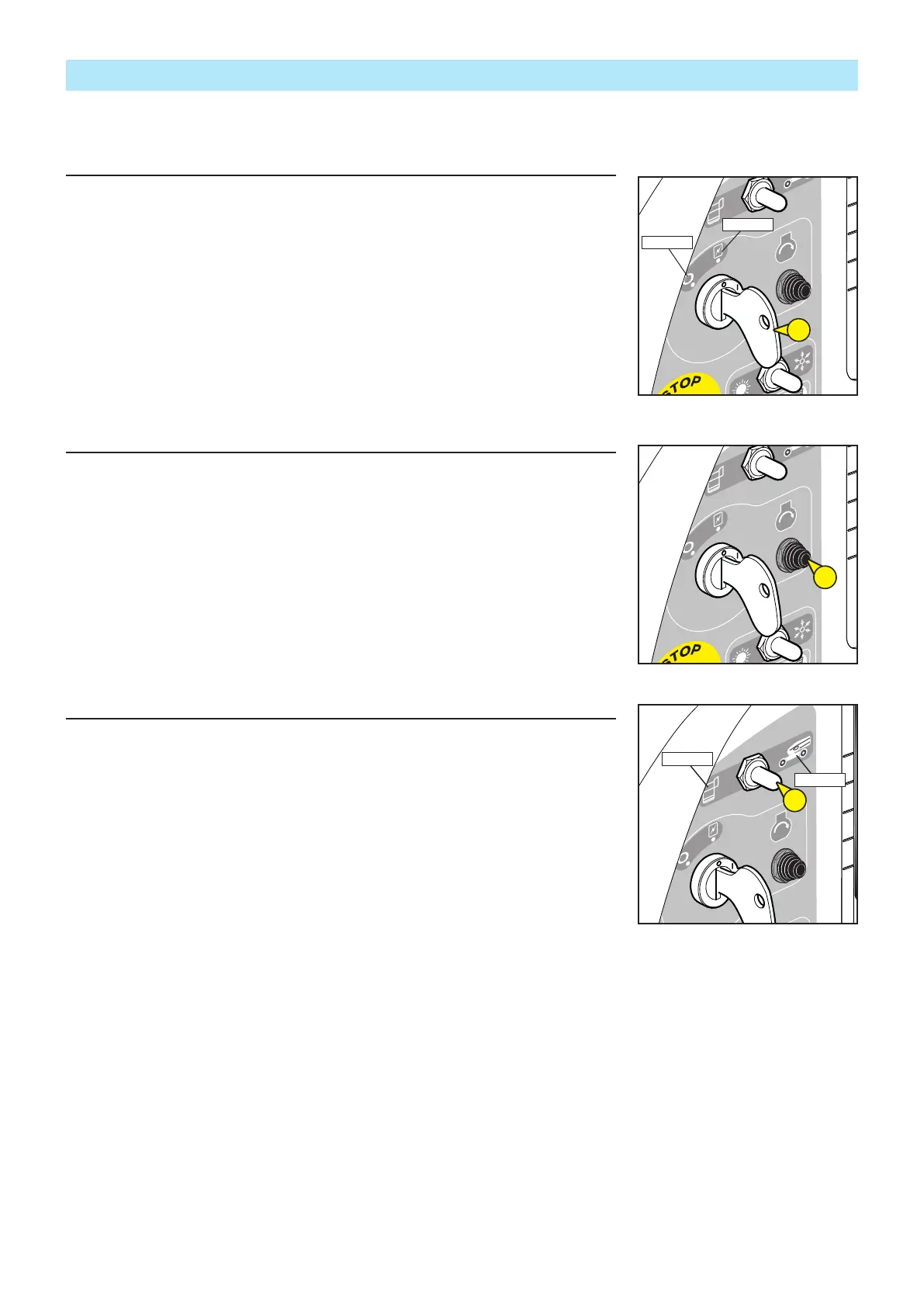

1 - KEY-OPERATED IGNITION SWITCH
This key-operated contactor has two positions.
POSITION 1
- Engine stop and electrical circuit supply off.
POSITION 2
- Electrical circuit supply on and automatic engine preheating.
2 - STARTER BUTTON
BUTTON 2
- Engine start-up.
3 - GROUND OR PLATFORM CONTROL SELECTION SWITCH
This contactor has two positions.
POSITION 1
- Control is from the basket.
POSITION 2
- The commands come from the ground (base control). The button must be held down in
position 2 (dead Man’s system) to provide power to the base control. Releasing it prevents any
movements from being made.
Position 1
Position 2
Position 1
Position 2
1
2
3
647382 EN (01/02/2015)
