Manitou 280 TJ - Aising and Lowering of the Pendular Unit; Ilting of the Basket Downwards and Upwards

2-30

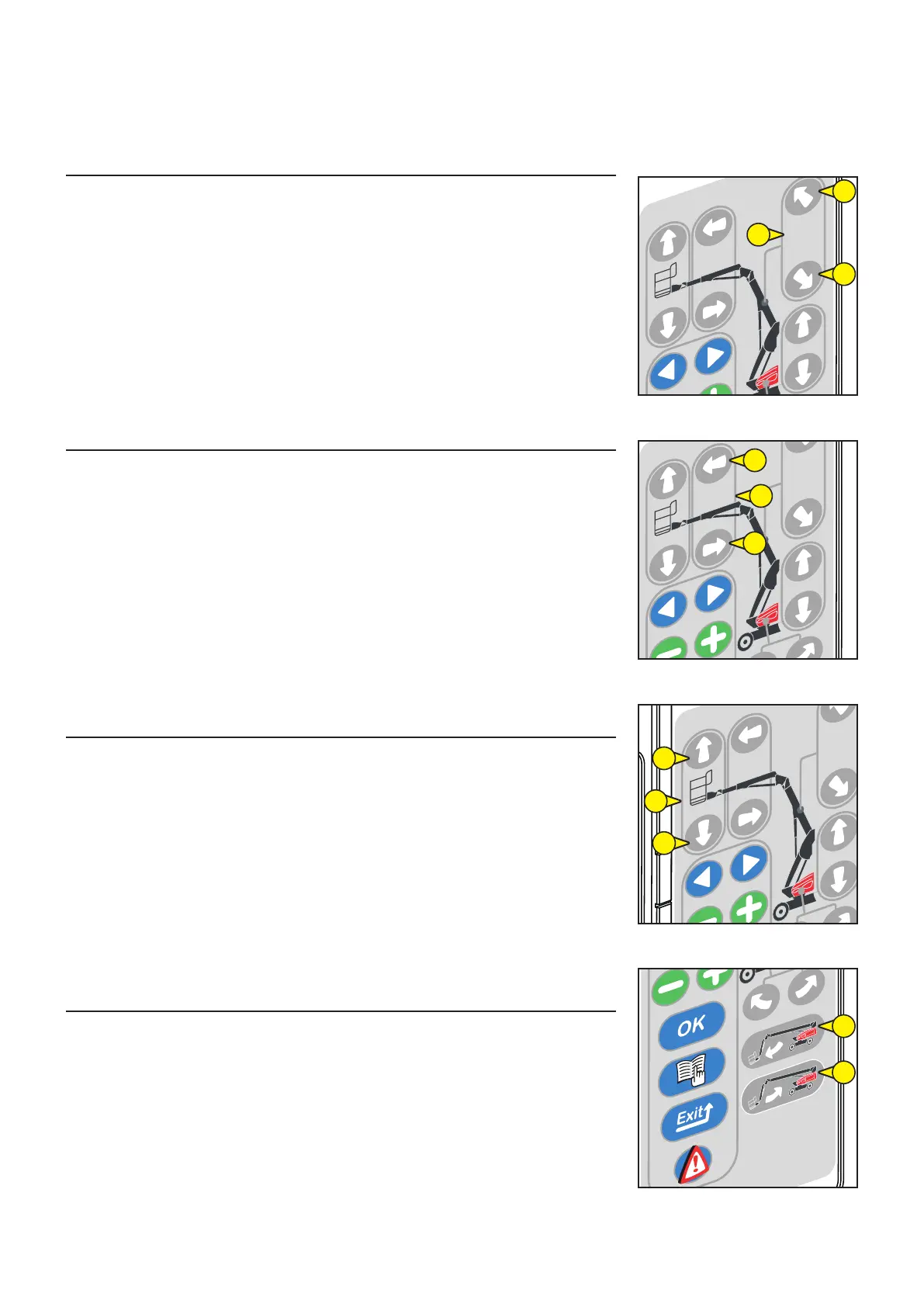

11 - TELESCOPE EXTENSION AND RETRACTION
- These keys, used simultaneously with button 8 in the ‘Dead Man’s” position, enable you to
extend and retract the telescope.
A: TELESCOPE EXTENSION
- Hold down the Dead Man’s function 8 and press key 11B.
B: TÉLESCOPE RETRACTION
- Hold down the Dead Man’s function 8 and press key 11A.
12- EXTENSION AND RETRACTION OF THE TELESCOPIC PENDULAR UNIT
- These keys, used simultaneously with button 8 in ‘Dead Man’s” position, enable you to extend
and retract the telescopic pendular arm.
A: TO EXTEND THE TELESCOPIC PENDULAR UNIT
- Hold down the Dead Man’s function 8 and press key 12B.
B: TO RETRACT THE TELESCOPIC PENDULAR UNIT
- Hold down the Dead Man’s function 8 and press key 12A.
13 - RAISING AND LOWERING OF THE PENDULAR UNIT
- These keys, used simultaneously with button 8 in the “Dead Man’s” position, enable you to
raise and lower the pendular arm.
A: TO RAISE THE PENDULAR ARM
- Hold down the Dead Man’s function 8 and press key 13A.
B: TO LOWER THE PENDULAR ARM
- Hold down the Dead Man’s function 8 and press key 13B.
14 - TILTING THE BASKET DOWNWARDS AND UPWARDS
- These keys, used simultaneously with button 8 in ‘Dead Man’s” position, enable the basket’s
horizontality to be corrected and the basket to be folded back completely into transport
position.
A : TILTING OF THE PENDULAR ARM ASSEMBLY UPWARDS
- Hold down the Dead Man’s function 8 and press key 14A..
B : TILTING OF THE PENDULAR ARM ASSEMBLY DOWNWARDS
- Hold down the Dead Man’s function 8 and press key 14
11
11A
11B
13A
13B
13
12A
12B
12
14A
14B
