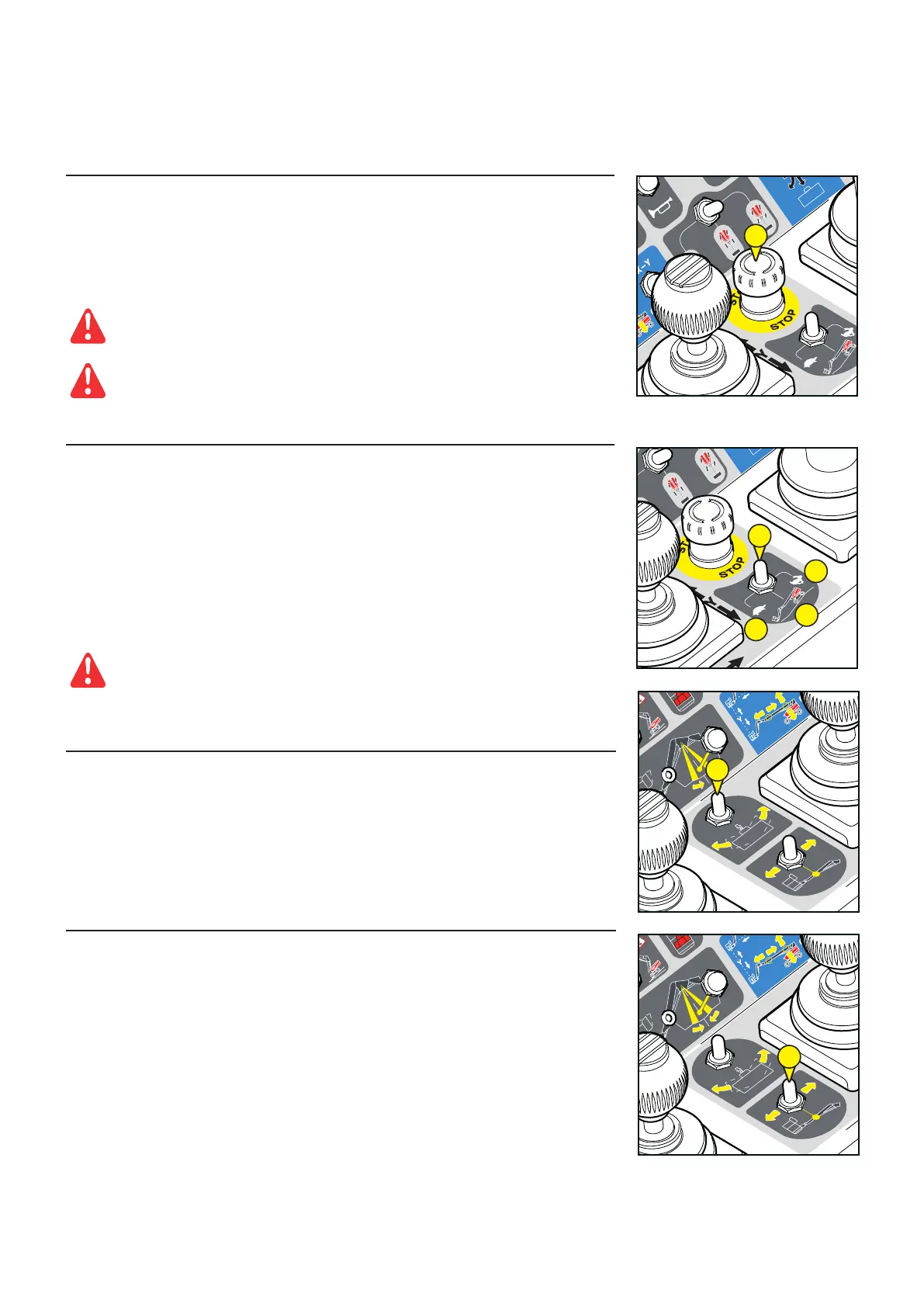

41 - EMERGENCY STOP
- This switch enables you to cut off all the machine’s movements in the event of an anomaly or
danger arising.
- Press the knob to cut off all movements.
- Turn the knob a quarter turn to the right to deactivate it (the switch will automatically return
to its initial position).
In all cases, this control has priority; except when movements are being made from
the base control station.
Do not use the emergency stop to simply shut down the nacelle, otherwise, rearm
it immediately as no action can be performed on the control panel in the basket.
42 - TRANSLATION SPEED SELECTION CONTACTOR
- This contactor has 3 positions.
POSITION 1 : TORTOISE (SLOW SPEED)
POSITION 2 : RAMP (SLOW SPEED WITH FULL POWER) Only if crossing a very steep ramp.
POSITION 3 : HARE (HIGH SPEED), Only with steering selector mode 35 in the “crab position” or
“two wheel drive position”.
NB : When the selector switch is in position 3 (high speed) and the machine is in 4-wheel drive,
the switch moves automatically to position 2 (ramp speed).
NB : When the selector switch is in position 3 (high speed), and the machine is in reverse
mode, the switch moves automatically to position 2 (ramp speed).
While in Hare/high speed mode (position 3), the turret must be in the machine’s
axis.
43 - BASKET ROTATION
- This contactor enables you to rotate the basket left and right
RIGHT ROTATION
- Push the contactor to the right.
LEFT ROTATION
- Push the contactor to the left.
44 - PENDULAR UNIT TELESCOPE EXTENSION AND RETRACTION (EXCEPT 260TJ)
- This contactor enables you to extend and retract the pendular unit telescope.
TO EXTEND THE PENDULAR UNIT TELESCOPE
- Push the contactor to the left.
TO RETRACT THE PENDULAR TELESCOPE
- Push the contactor to the right.
