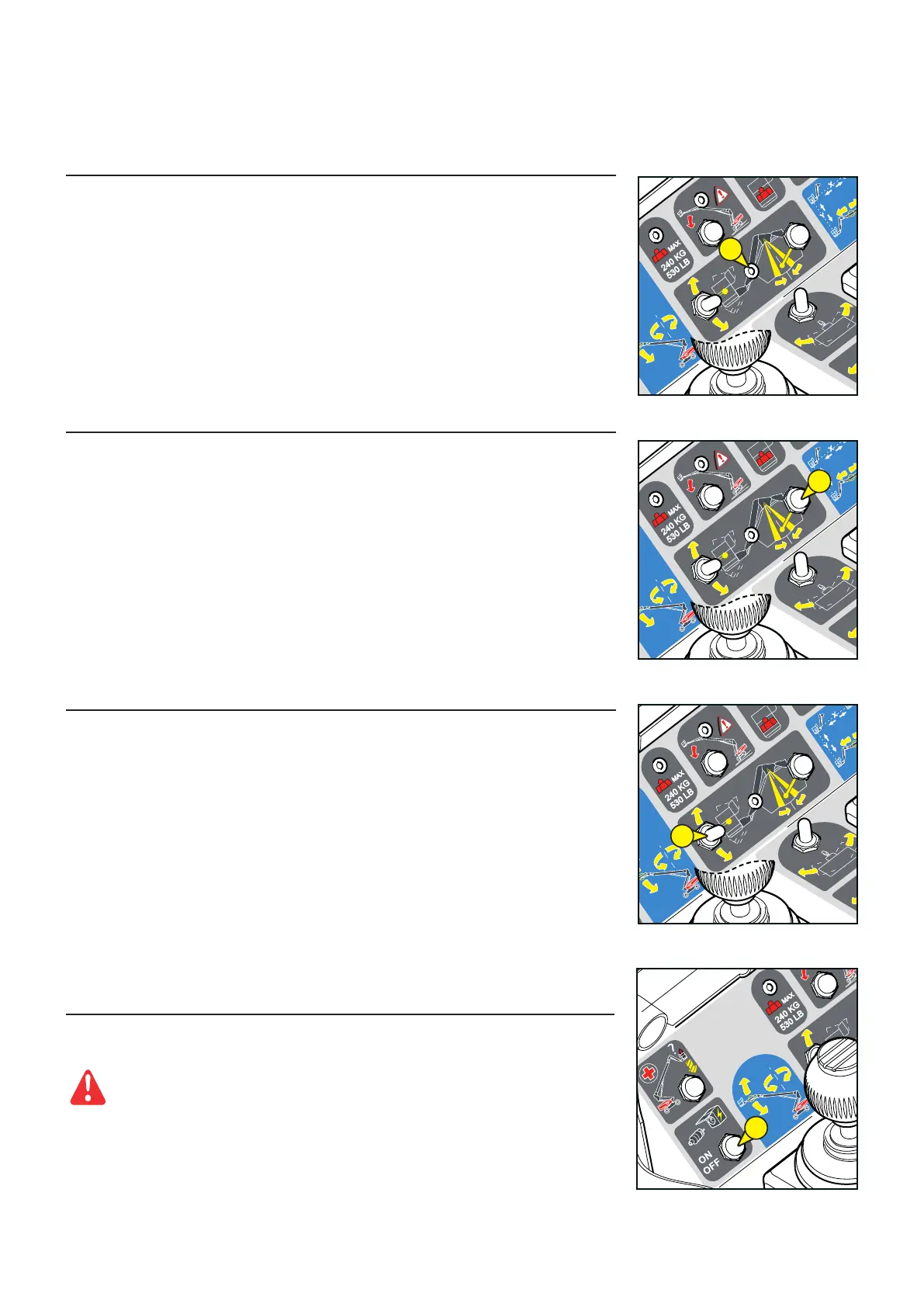

37 - PENDULAR UNIT ZERO FUNCTION LED
This LED comes on when the basket/pendular unit assembly is in the red zones on the sticker
affixed to the pendular unit’s joint (see SECTION 1 - §: SAFETY STICKERS).
- Correct the pendular unit’s horizontality by pressing button 38.
38 - PENDULAR UNIT ZERO POSITION CONTROL
This contactor automatically corrects the basket’s horizontality when the basket/pendular unit
assembly is in the red zones on the sticker affixed to the pendular unit’s joint (see SECTION 1 -
§: SAFETY STICKERS).
- Automatic stop on “0”.
39 - BASKET TILT (EXCEPT 260TJ)
This contactor enables you to raise and lower the basket and can be used to correct the basket’s
horizontality manually.
TO RAISE THE BASKET
- Push the contactor upwards.
TO LOWER THE BASKET
- Pull the contactor downwards.
Only the basket tilt function is inactive when the pendular unit is outside the green zone.
40 - GENERATOR OPTION
This contactor activates or deactivates the generator option.
Please do not connect electrical appliances not fitted with a shut-off switch.
Voltage spikes may occur when starting the generator.
39
37
38
40
