1-33

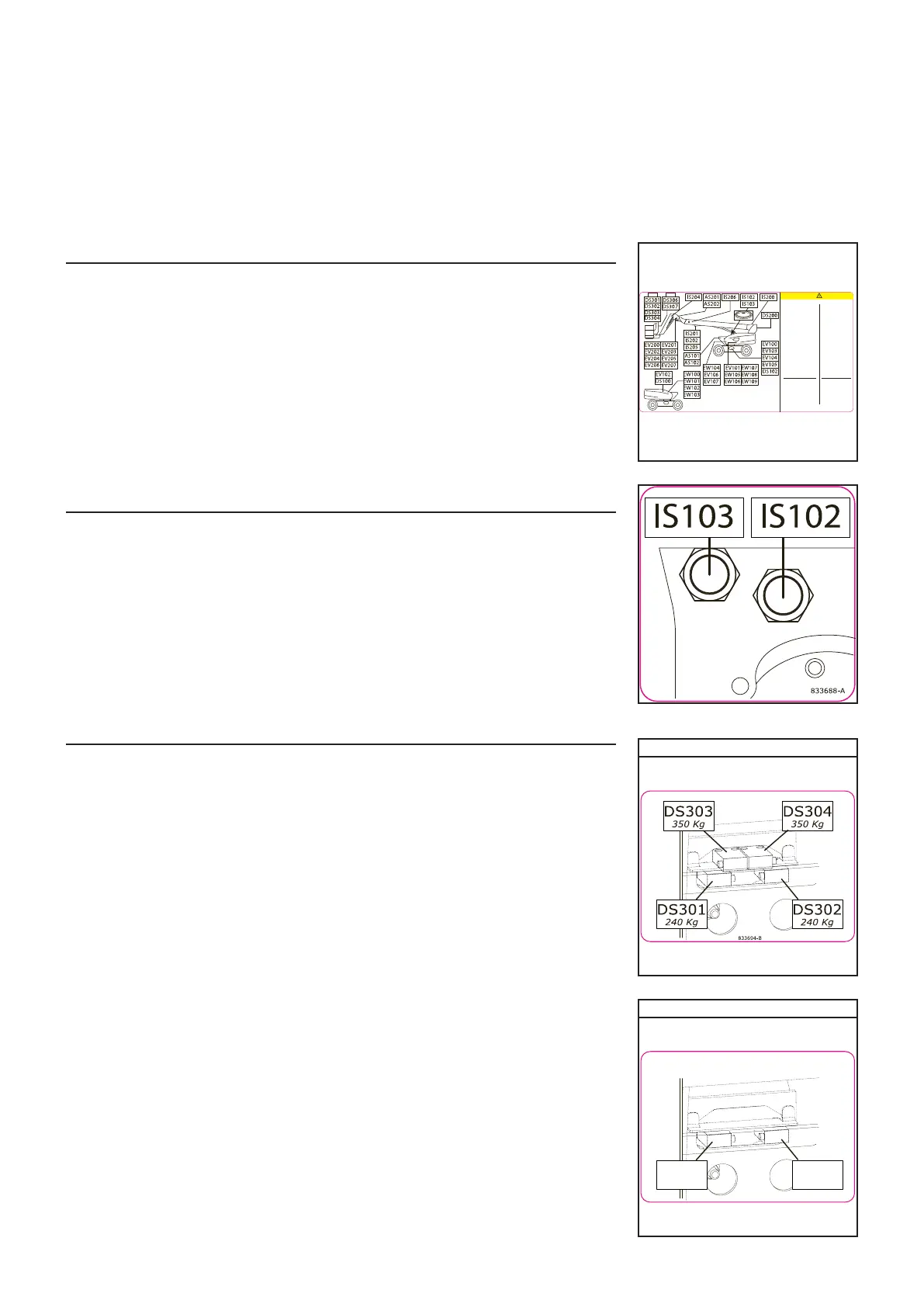

24 - SENSORS AND COILS
This adhesive shows the fault codes and the location of the electrical components, such as
sensors (DS, AS, IS), the solenoid valves (EV) and the solenoid coils (EW).
25 - TURRET ROTATION SENSORS
This adhesive shows the location of turret rotation sensors and the corresponding fault codes.
26 - OVERLOAD SENSORS
This adhesive shows the location of overload sensors and the corresponding fault codes.
833687-D
CODES DÉFAUTS
A- Short circuit at
starting before power
to component
B- Out neutral
movement at
starting
D- Short circuit
(To +)
E- Redundant sensor
failure
(TOR or ANA)
F- Out range valve
G- High level default
H- Low level default
S-
Communication
default
T- Memory default
U- Functional warning
V- Activating default
C- Open circuit
(wire cut)
DEFAULT CODE
A- Court-circuit au
démarrage avant
alimentation du
composant
B- Hors neutre mouve-
ment au démarrage
C- Circuit ouvert
(Fil coupé)
D- Court-circuit (au +)
E- Incohérence capteurs
redondants
(TOR ou ANA)
F- Valeur hors plage
G- Défaut niveau haut
H- Défaut niveau bas
S- Défaut communication
T- Défaut mémoire
V- Défaut asservissement
U- Alerte fonctionnelle
280 TJ 260 TJ
280 TJ
DS306
400 Kg
DS307
400 Kg
52523374-A
260 TJ
