Manitou 280 TJ - Starting Control; Steering Selection Mode and Axle Alignment Led; X-Ycontrol Function

2-38

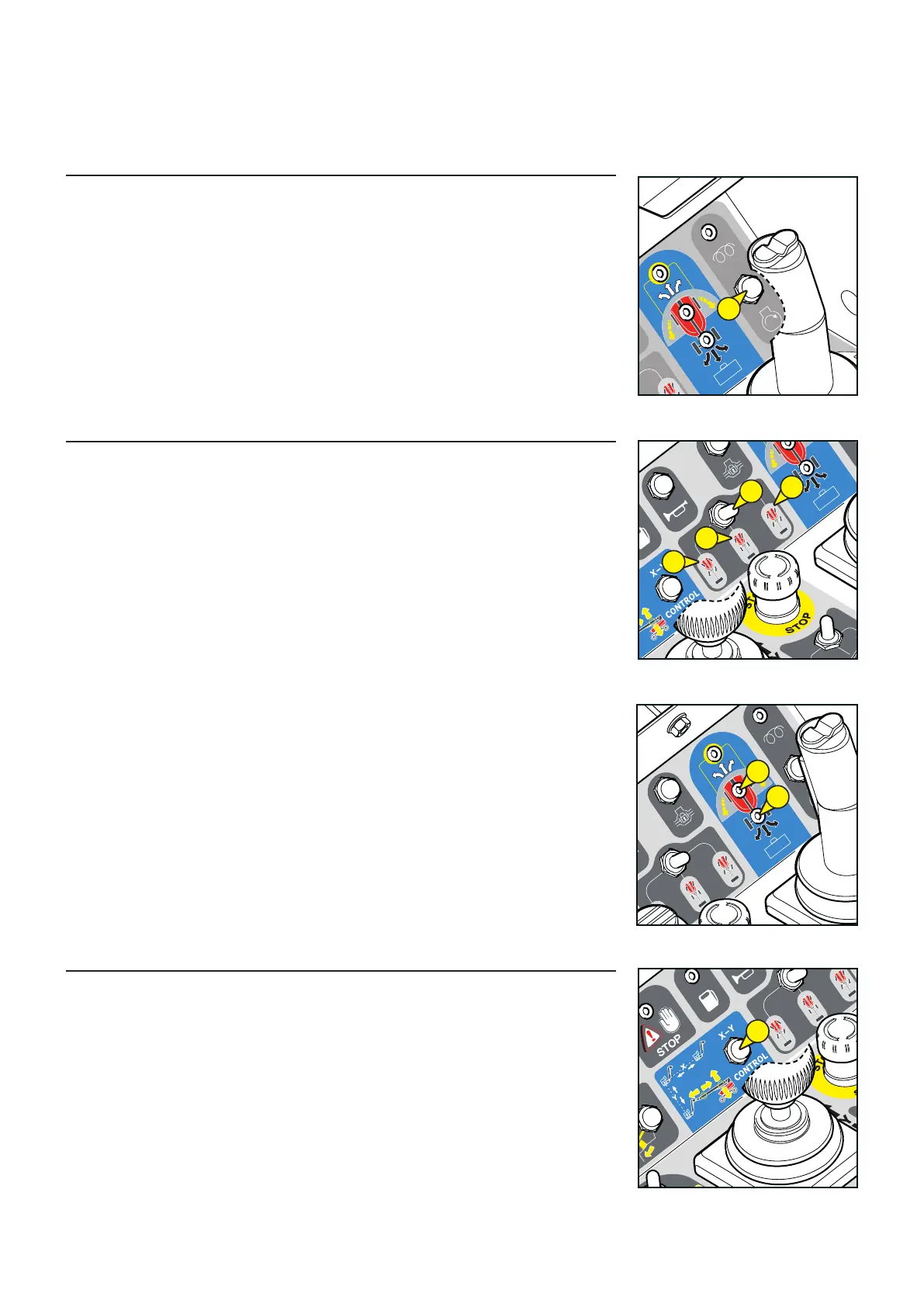

34 - STARTING CONTROL
- Wait for the ”Preheating” light to go out and then press button 34 to start the lifting platform
from the basket console.
35 - STEERING SELECTION MODE AND AXLE ALIGNMENT LED
This contactor has three positions.
POSITION P1
- Select “Crab” mode.
POSITION P2
- Select 2-wheel drive mode.
POSITION P3
- Select 4-wheel drive mode. In this configuration, the possible translation speeds are only :
Turtle or ramp.
35A FRONT WHEEL ALIGNMENT
- This indicator light illuminates when the front wheels are correctly aligned with the machine’s
axis.
35B REAR WHEEL ALIGNMENT
- This indicator light illuminates when the rear wheels are correctly aligned with the machine’s
axis.
36 - X-Y CONTROL FUNCTION
This control must be operated simultaneously with operation of lever 22.
X function:
- A pressure maintened on the XY control button simultaneously with a telescope extension or
retraction command enables you to keep the same horizontal position for the basket during
the movement.
Y function:
- A pressure maintened on the XY control button simultaneously with a raising or lowering
command enables you to keep the same vertical position for the basket during the movement.
34
P3
P2
35
P1
35A
35B
36
647382 EN (01/02/2015)
