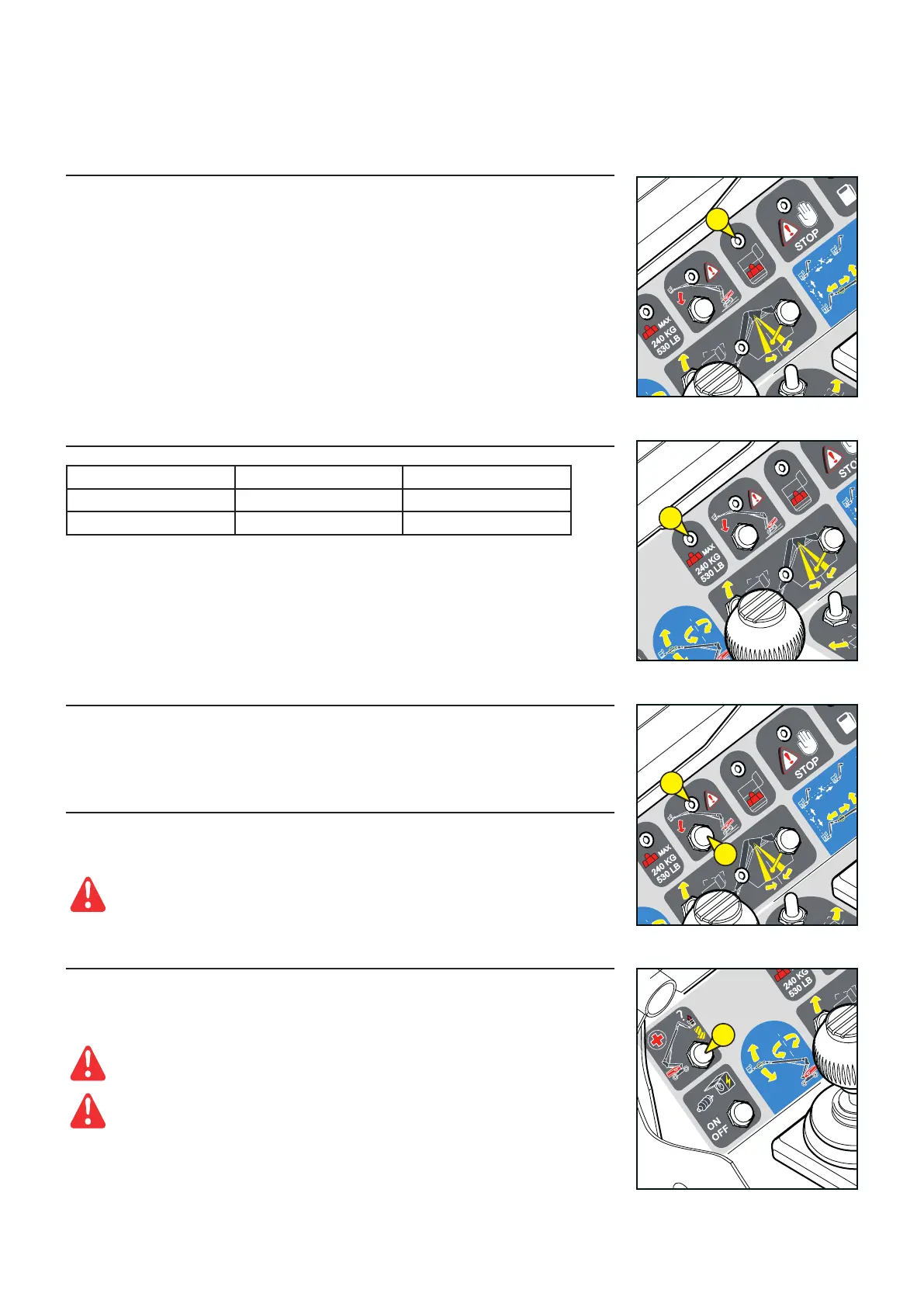

30 - “OVERLOAD” LED
- If there is an overload in the basket in the 240 Kg, 350 kg or 400 Kg zone, this LED flashes and
the buzzer 47 sounds continuously (see the “SAFETY SYSTEMS” section).
31 - 240KG LOAD AND ZONE LED (EXCEPT 260 TJ)
350 Kg zone 240 Kg zone
Load < 240 Kg Inactive Intermittent
Load > 240 Kg Intermittent Continuously active
32 A - “TILT” LED
- When the lifting platform reaches the maximum authorized level of tilt, the LED flashes and
the buzzer 46 on the basket console sounds intermittently. Any “aggravating” movements are
prohibited as a safety measure (see the “SAFETY SYSTEMS” section).
32 B - USE WHILE UNDER TILT
- This button neutralizes the ban on movements when the lifting platform is tilting (see the
“SAFETY SYSTEMS” section).
If you are using the lifting platform while it is tilted, there is a risk of loss of stability.
The basket overload still remains activated.
33 - EMERGENCY PUMP
- This button enables you to make all the basket’s movements to bring it back to the ground in
the event of a breakdown (see the RESCUE PROCEDURE section).
Only to be used in the event of a breakdown in the electrical system or the engine
Check the engine battery’s charge; this must be charged, otherwise the emergency
pump cannot be operated.
