Swing-away lattice
3.3 Rigging work checklists
Lattice extension operating instructions 3 112 441 en 3 - 9
GMK 4100/4100-L/5095
11.01.2008

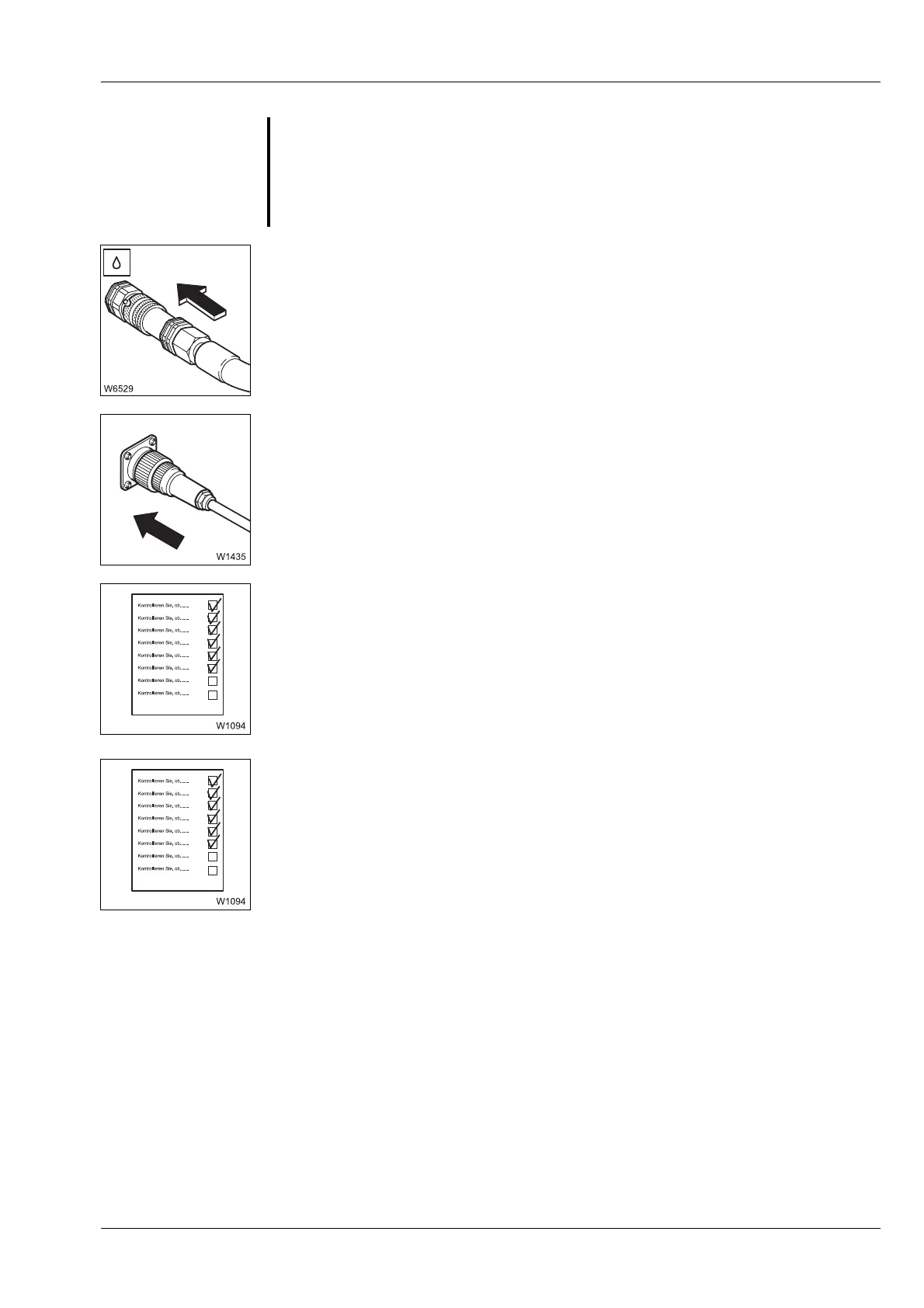

5. For derricking swing-away lattice, establish a hydraulic connection;
à p. 3 - 35.
6. Establish the electrical connection;
à p. 3 - 61.
7. For further folding:
à CHECKLIST: Unrigging the 10 / 17 m (33 / 56 ft) swing-away lattice
beginning with point 19.
à p. 3 - 24.
8. For further rigging:
à CHECKLIST: Rigging the 10 / 17 m (33 / 56 ft) swing-away lattice begin-
ning with point 14.
à p. 3 - 17.
G
Risk of crushing due to the swing-away lattice swinging around
Secure the swing-away lattice against swinging always with the guide rope
before establishing the hydraulic or electrical connection.
This will prevent the swing-away lattice from swinging inadvertently to the
side of the main boom and crushing you.
