Swing-away lattice
3.3 Rigging work checklists
Lattice extension operating instructions 3 112 441 en 3 - 17
GMK 4100/4100-L/5095
11.01.2008

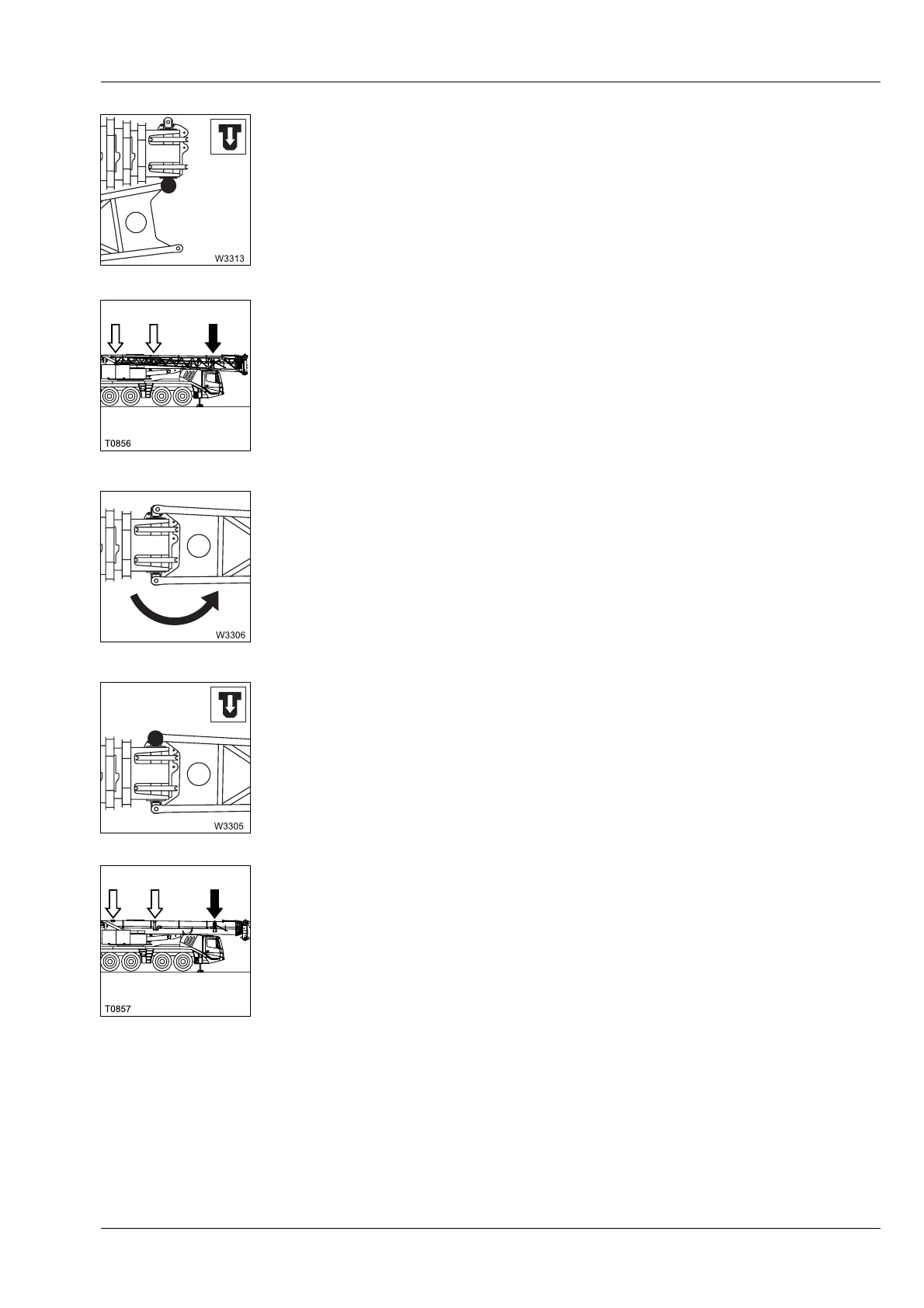

12. Pin section 1 onto the main boom head, on the right-hand side;
à p. 3 - 49.
13. Undo the connection in the
Front area; à p. 3 - 39.
14. Swing the lattice extension in front of the main boom head;
à When
rigging – section 1
, p. 3 - 55.
15. Pin section 1 onto the main boom head, on left-hand side. At the same
time, release the bearing points if necessary or use the hydraulic rig-
ging aid (additional equipment);
à Left-hand connection, p. 3 - 50,
à Relieving the connecting points, p. 3 - 51.
à Hydraulic rigging aid (additional equipment), p. 3 - 51.
16. Move the connection in the
Front area into the Unrigging position;
à p. 3 - 41.
H
If the 10 m (33 ft) swing-away lattice is rigged – continue with point 23.;
à p. 3 - 19.
