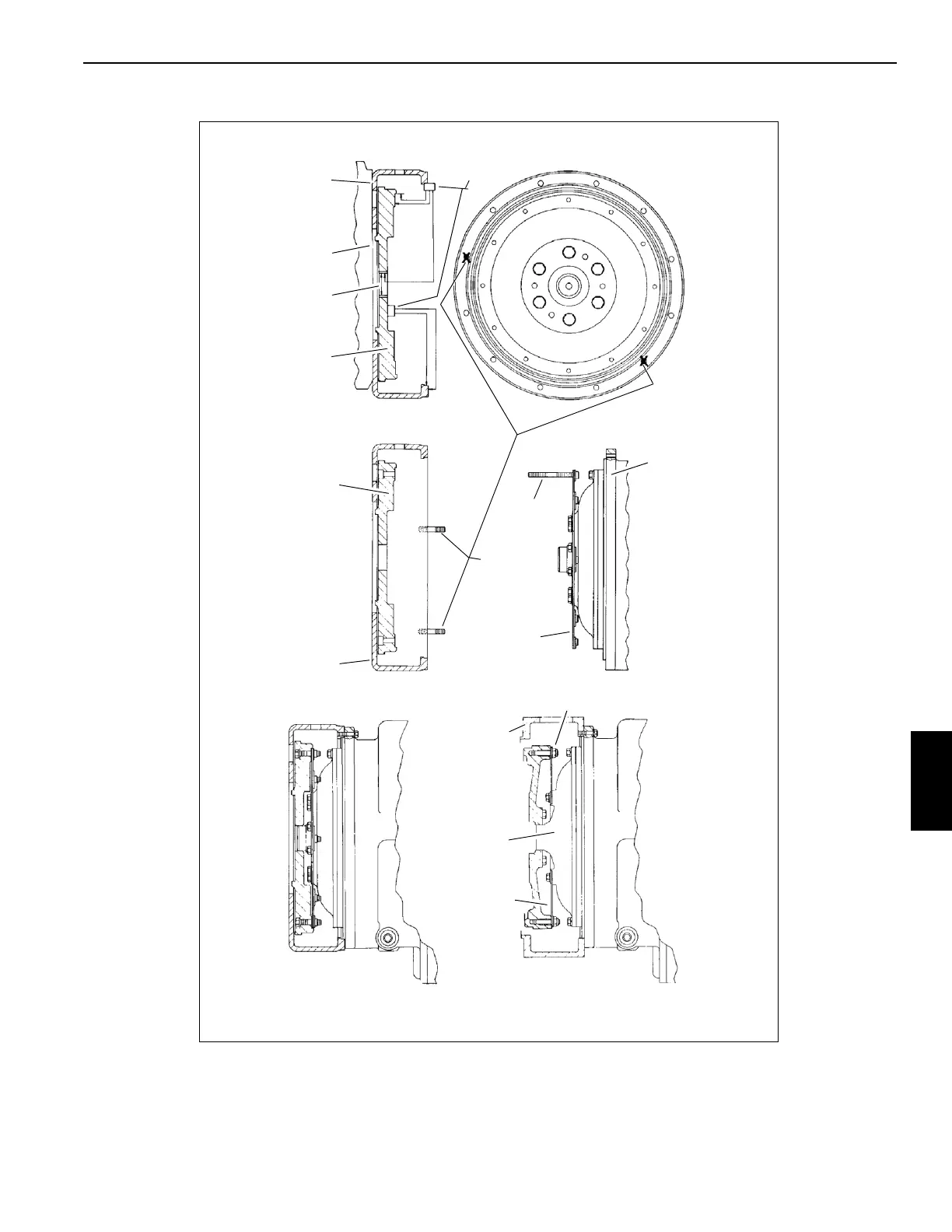

Grove Published 11-10-2014, Control # 524-00 7-31
RT880E SERVICE MANUAL POWER TRAIN
7
Mount
Dial
Indicator
Here
Flywheel
Housing
Engine
Flywheel
Pilot
Bore
Flywheel
2-1/2 in
(6.4 cm)
Aligning
Studs
Drive
Plate
4 in
(10.2 cm) Stud
Converter
Housing
Flywheel
Flywheel
Housing
Special Stud, Washer and
Self-lock Nut Furnished
by Engine Manufacturer
Flywheel
Housing
Impeller
Cover
(3) Intermediate
Drive Plates
FIGURE 7-15
