Manitowoc Grove RT880E - Page 49

Grove Published 11-10-2014, Control # 524-00 2-11
RT880E SERVICE MANUAL HYDRAULIC SYSTEM
2

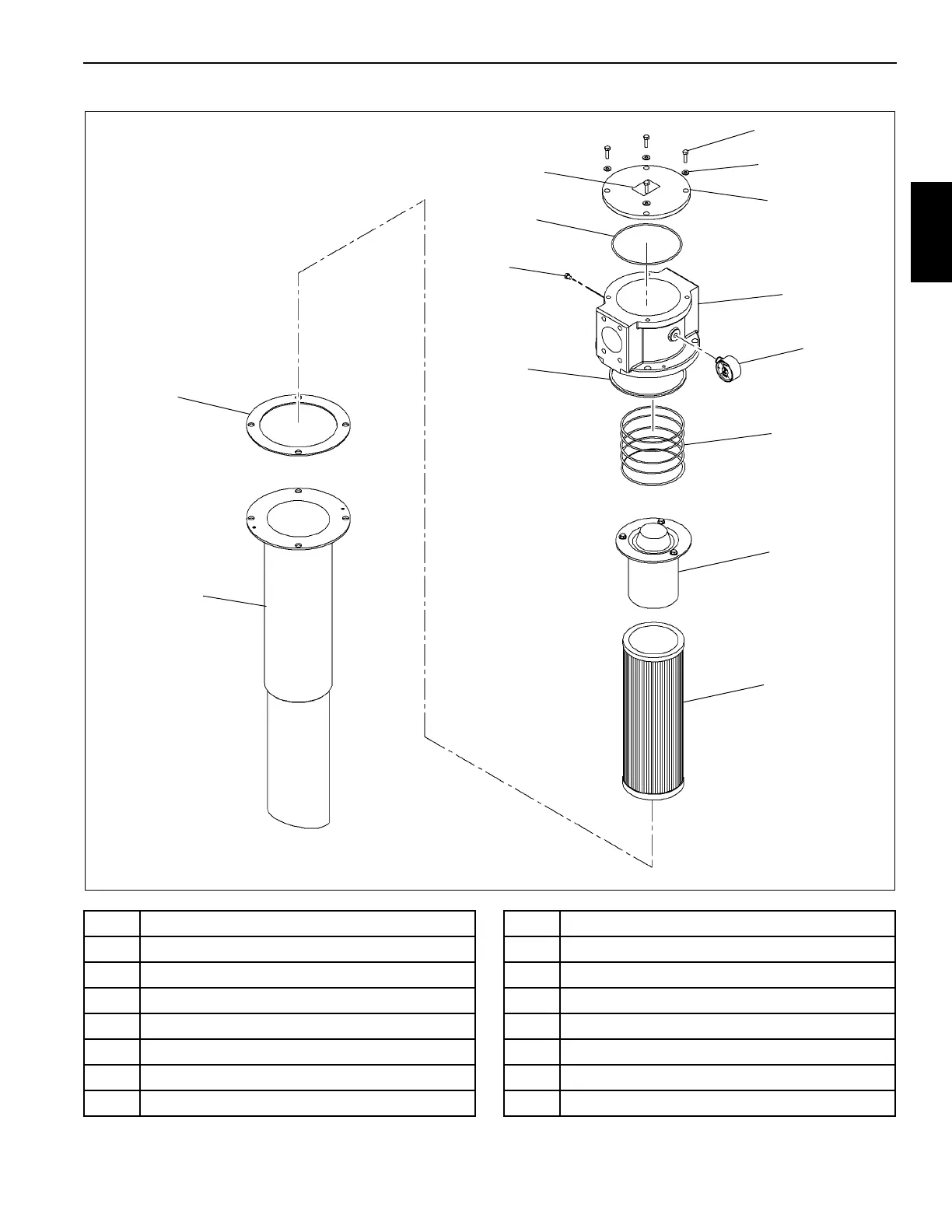

FIGURE 2-4
7820
1
5
6
3
7
8
4
2
10
9
11
12
13
14
Item Description
1 Filter Head
2 Bowl Assembly
3 Compression Spring
4 Bypass Valve Assembly
5I.D. Plate
6 Gasket
7 Gauge Assembly
Item Description
8Plug
9O-ring
10 Element
11 Cap
12 O-ring
13 Screw
14 Washer
