HYDRAULIC SYSTEM RT880E SERVICE MANUAL
2-34 Published 11-10-2014, Control # 524-00
9
10
12
11
8
6338
CARRIER

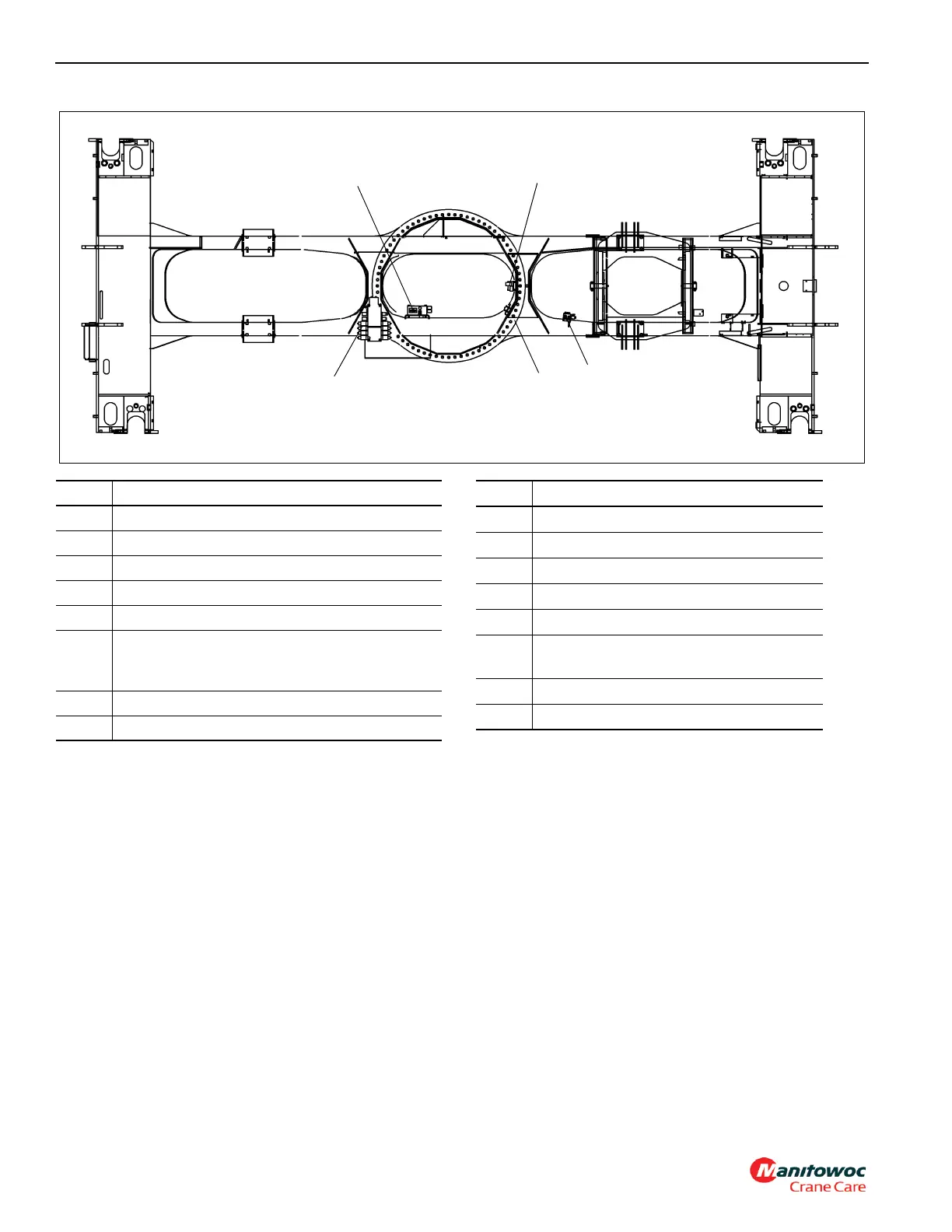

FIGURE 2-17 continued
Item Description
1 Cab Tilt Directional Valve
2 Cab Tilt Check Valve
3 Counterweight Removal Directional Valve
4 Telescope Rod Manifold Drain
5 Accumulator Brake Charge Valve
6 Directional Valve (Boom/Lift/Telescope(s)/
Hoist(s)/Counterweight Removal/Cab Tilt/
Luffing Jib)
7 Swing/Steer/Brake Valve
8 Outrigger Manifold
Item Description
9 Rear Steer/Axle Lockout/Fan Drive Valve
10 Range Shift/Park Brake Manifold
11 Differential Lock Valve
12 Load Sense Dump Valve
13 Two Speed Swing Valve
14 Emergency Steer Accumulators (CE
Machines)
15 Brake Accumulator
16 Make-up Oil Manifold
