Grove Published 11-10-2014, Control # 524-00 2-55
RT880E SERVICE MANUAL HYDRAULIC SYSTEM
2

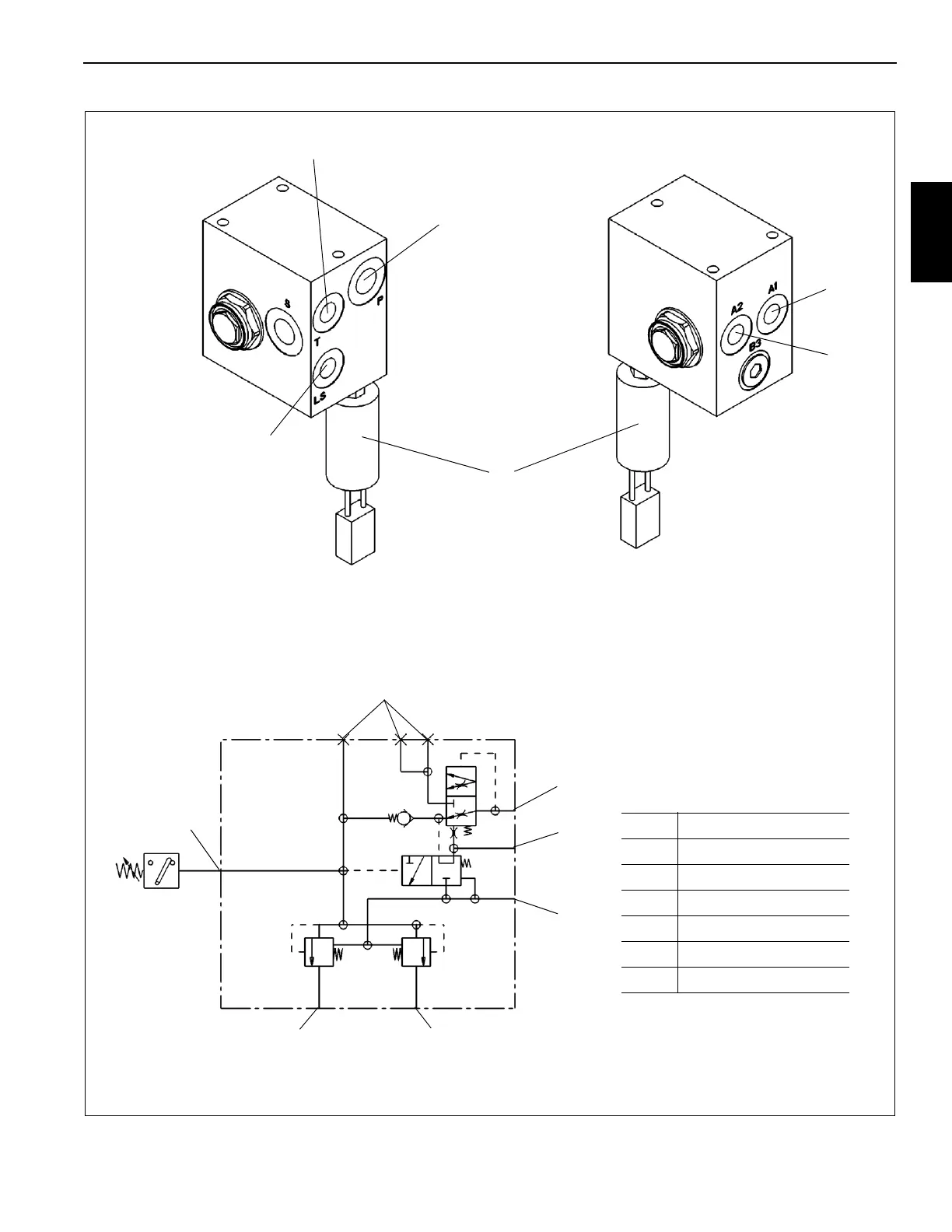

FIGURE 2-29
Valve Hydraulic Schematic
7752-01
7752-02
7752-03
4
6
2
1
3
5
Item Description
1 Load Sense Port
2 Tank Port
3 Pressure Port
4 Accumulator Port 1A
5 Accumulator Port 2A
6 Pressure Switch
4
6
2
1
3
5
These ports plugged
