HYDRAULIC SYSTEM 5540F/YB5515 SERVICE MANUAL
4-38 Published 10-21-2010, Control# 198-04

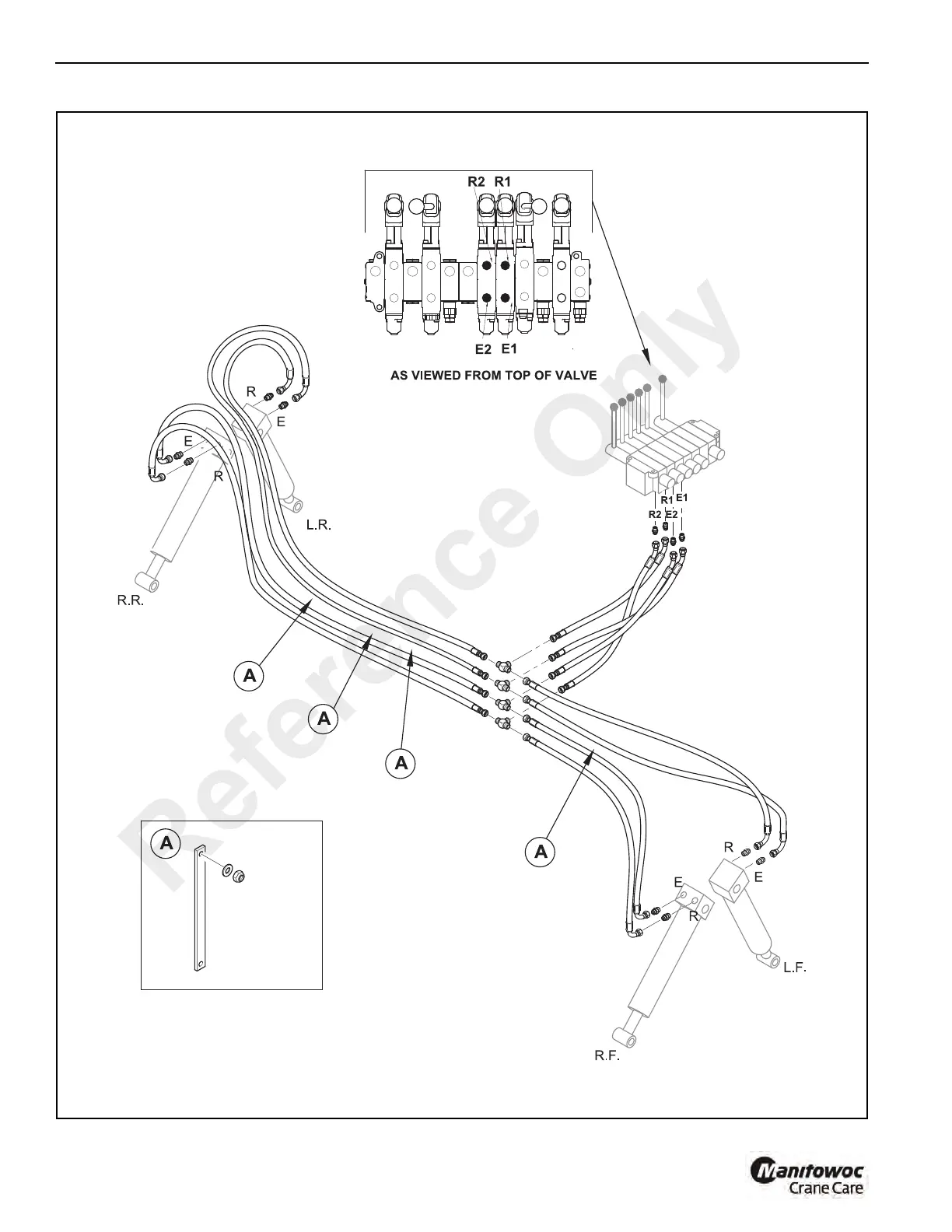

FIGURE 4-38
a0412
Outrigger Hydraulic Lines (Standard Outriggers)
Reference Only
