GROVE Published 10-21-2010, Control# 198-04 1-1
5540F/YB5515 SERVICE MANUAL INTRODUCTION
SECTION 1
INTRODUCTION
This manual contains information on maintenance, service
and repair of the Models 5540F & YB5515 cranes. Major
components and systems are included, except service on
the engine. This information will be found in the engine
manufacturer’s service manual.
DIRECTIONAL REFERENCE
All directional references in this manual, unless otherwise
noted, are viewed from the normal operator’s working
position at the main controls. “LEFT” is the operator’s left and
“RIGHT” is the operator’s right.
IDENTIFICATION PLATES
When assistance is required for parts and service, be sure to
include the model number and serial number of the crane in
the correspondence. Location of serial number plates are
shown below.

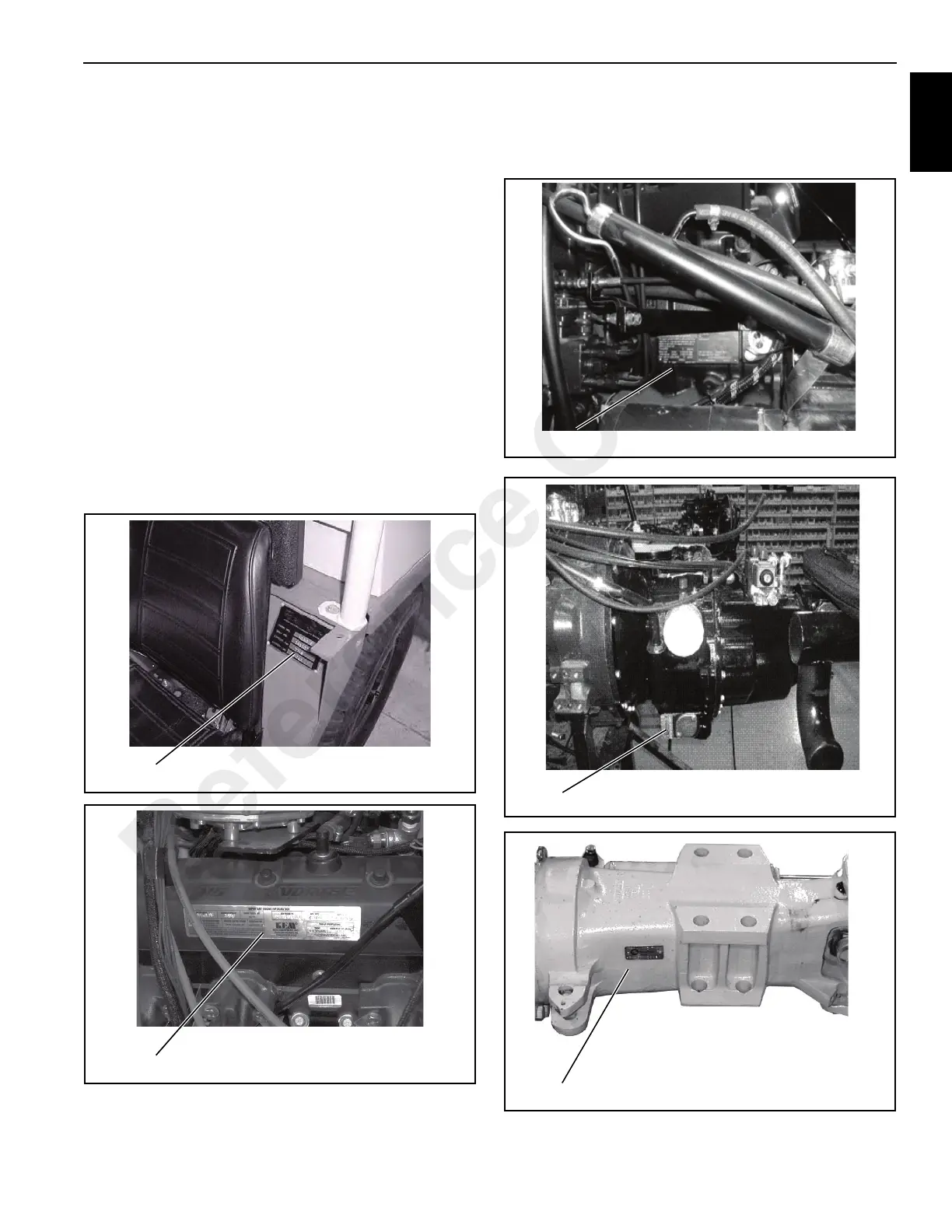

FIGURE 1-1
Crane S/N Location
p0993
FIGURE 1-2
Gasoline Engine S/N Location
p3077
FIGURE 1-3
Diesel Engine S/N Location
p1878
FIGURE 1-4
Transmission S/N Location
p0076
FIGURE 1-5
Front Drive/Steer Axle
p0074
