INTRODUCTION 5540F/YB5515 SERVICE MANUAL
1-2 Published 10-21-2010, Control# 198-04
SPECIFICATIONS
ENGINE
Diesel Engine
Make and Model.........................................................................................Cummins 4B3T.3 – 85 diesel, Tier II
Type of Aspiration ......................................................................................Turbocharged
Horsepower................................................................................................85 hp @ 2500 rpm
Low Engine Idle Speed...............................................................................800 rpm
Maximum Engine Speed ............................................................................2600 rpm
Gasoline/L.P.G. Engine
Make and Model.........................................................................................GM4.3L EFI V6, ZEPA & CARB 2004
Horsepower................................................................................................110 hp @ 2500 rpm
Low Idle Speed...........................................................................................700 rpm
Maximum Engine Speed ............................................................................2600 rpm
BOOM
Construction...............................................................................................Telescopic, welded box sections
Number of Sections....................................................................................Three or Four
Reach
Three Section .........................................................................................18 ft. 6 in. to 41 ft. (5.65 m to 12.5 m)
Four Section ...........................................................................................18 ft. 6 in. to 52 ft. 3 in. (5.65 m to 15.03 m)
MAST ROTATION - 360°
Mast Bearing (Diameter)............................................................................33.884 inches (860.6 mm)
Swing Drive Mechanism.............................................................................Hydraulic motor driven gearbox
Swing Speed ..............................................................................................2.1 rpm
ELECTRICAL
Type ...........................................................................................................12 volts, direct current
Alternator ...................................................................................................63 amps
Battery (Two with cold weather start) .........................................................90 amp/hr each
FUEL TANK
Capacity.....................................................................................................18.5 gal. (70 L)
HYDRAULIC SYSTEM

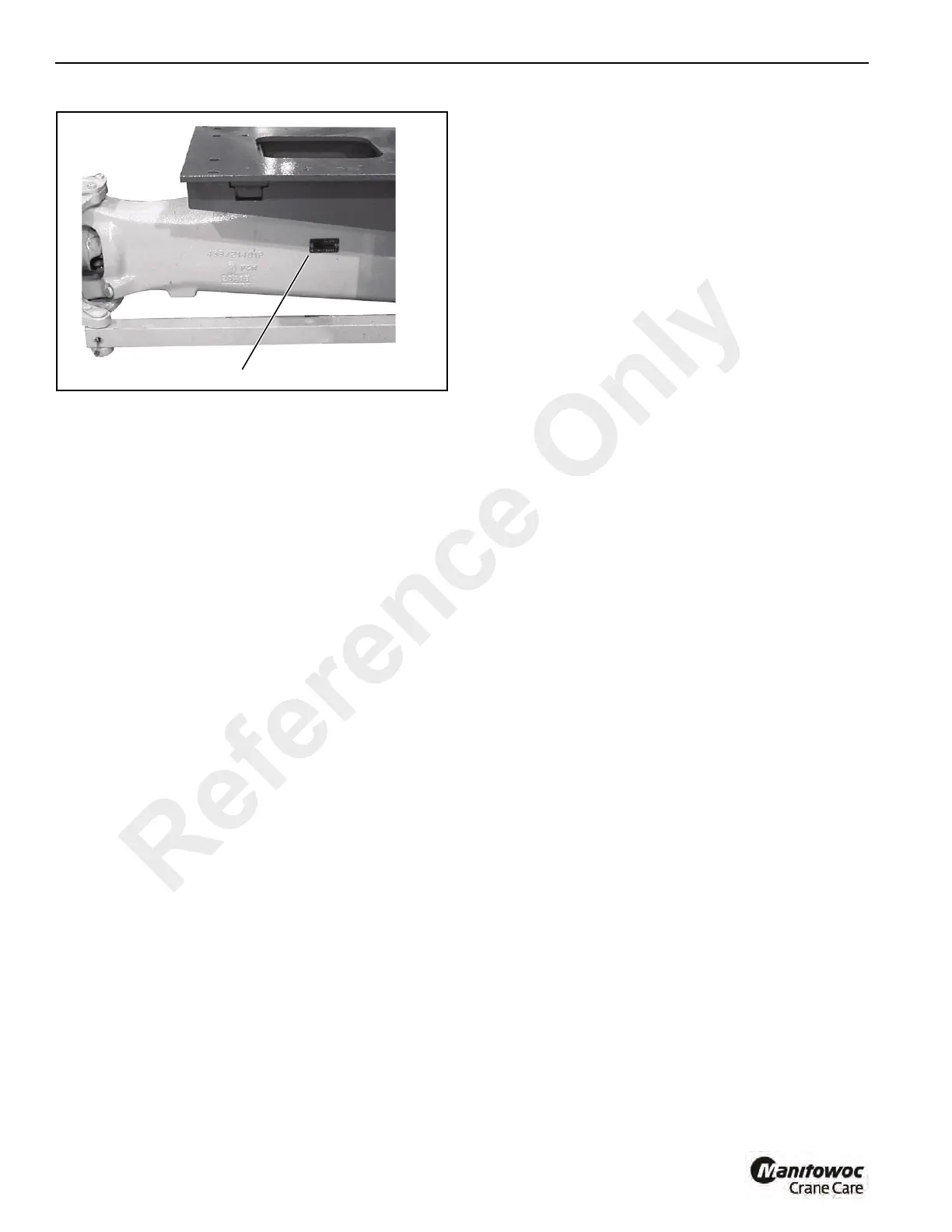

FIGURE 1-6
Rear Drive Axle S/N Location
p0073
Reference Only
