GROVE Published 10-21-2010, Control# 198-04 4-63
5540F/YB5515 SERVICE MANUAL HYDRAULIC SYSTEM
4
Tighten nut to a
torque of 175 lb.
ft (238 NM0
a0437

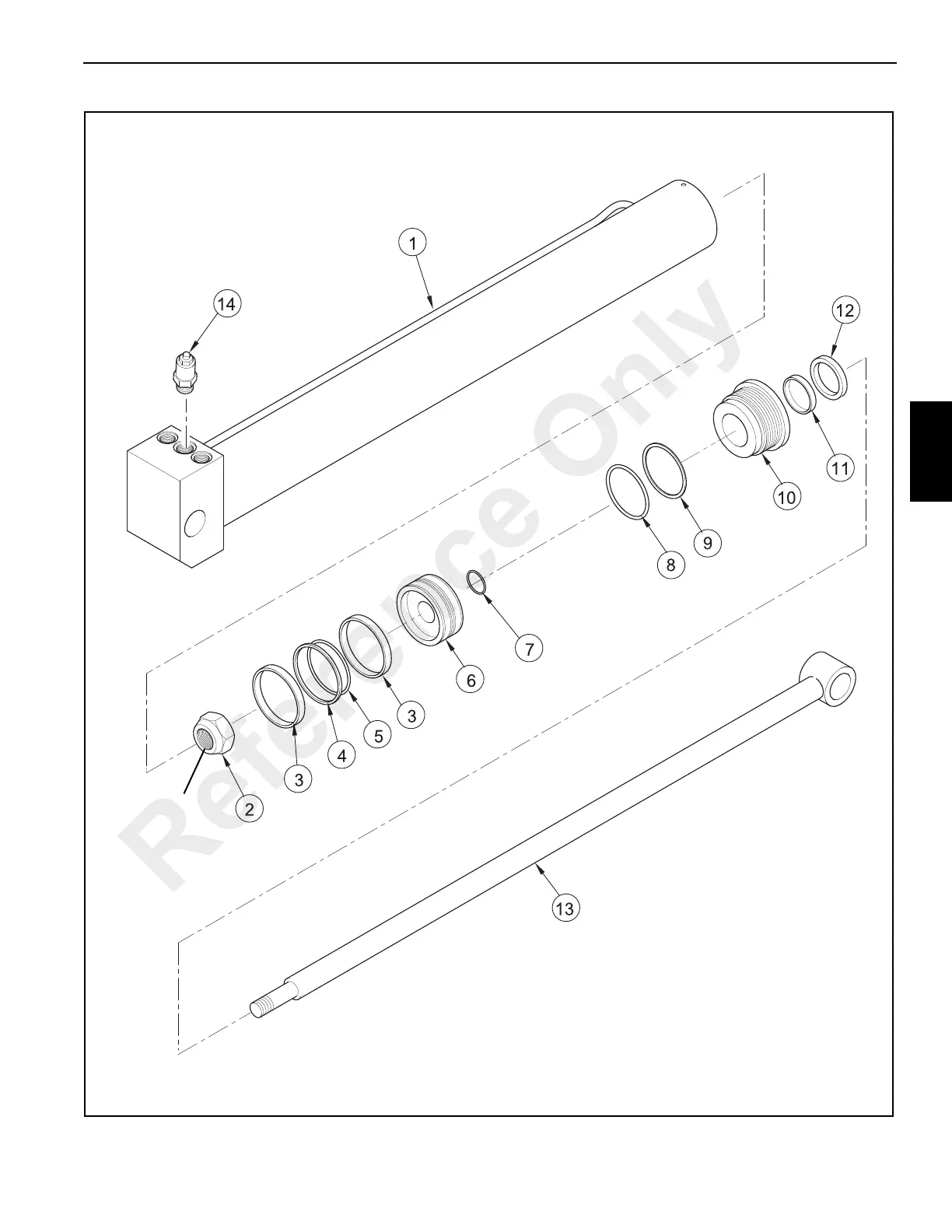

FIGURE 4-65
1. Cylinder Tube
2. Piston Nut
3. Piston Wear Ring (2) *
4. Piston Seal *
5. O-Ring *
6. Piston
7. O-Ring *
8. O-Ring *
9. Back-up Ring *
10. Gland
11. Rod Seal *
12. Wiper *
13. Rod
14.) Pilot
Operated
Check
Valve
*= Seal Kit
Outrigger Cylinder
Reference Only
