Manitowoc Grove YB5515

GROVE Published 10-21-2010, Control# 198-04 8-5
5540F/YB5515 SERVICE MANUAL AXLES/DRIVE SHAFTS/WHEELS AND TIRES
8
FIGURE 8-3
a0167
a0168
a0169
a0173
a0179
a0174
a0171
a0172
a0175
a0180

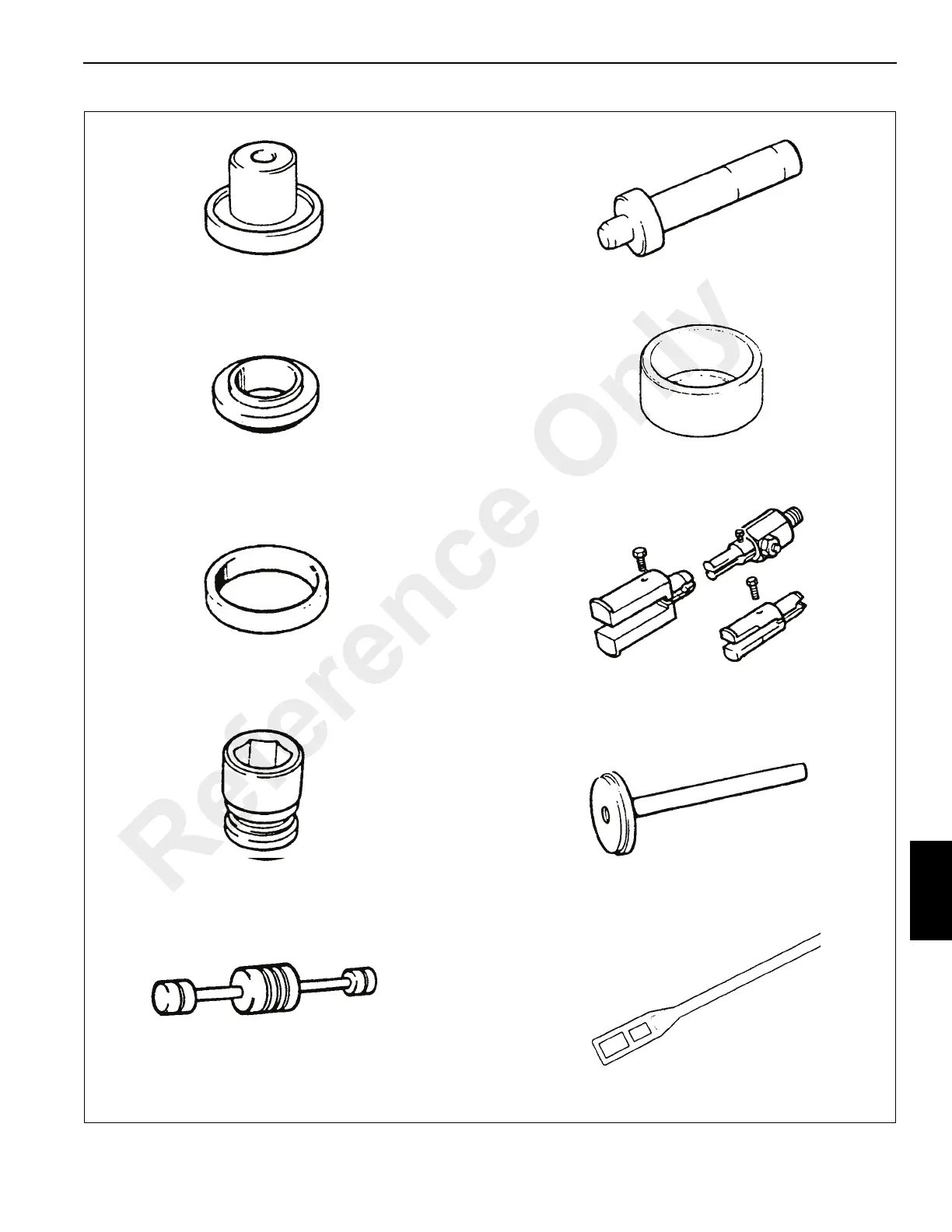

Driver - Crownwheel Bearing
and Differential Bearing Cones
Adapter - Steer/Drive Axle
Pinion Bearing Cone
Spacer - Pinion Bearing Pre-load
17 mm A/F x 3/4 in. square drive
Impulse Extractor Set for Hub
Bearing Seals
Adapter - Steer/Drive Axle
Pinion Bearing Cone
Bearing Pad Driver
Measuring Cup - Pinion Head
Bearing
Adapter - Impulse Extractor
Small - 17 to 25 mm
Medium - 25 to 45 mm
Large 45 to 80 mm
Driver - Pinion Head Bearing
Cup
Drive Coupling Spanner for
Axle York Couplings
Reference Only
