AXLES/DRIVE SHAFTS/WHEELS AND TIRES 5540F/YB5515 SERVICE MANUAL

8-8 Published 10-21-2010, Control# 198-04

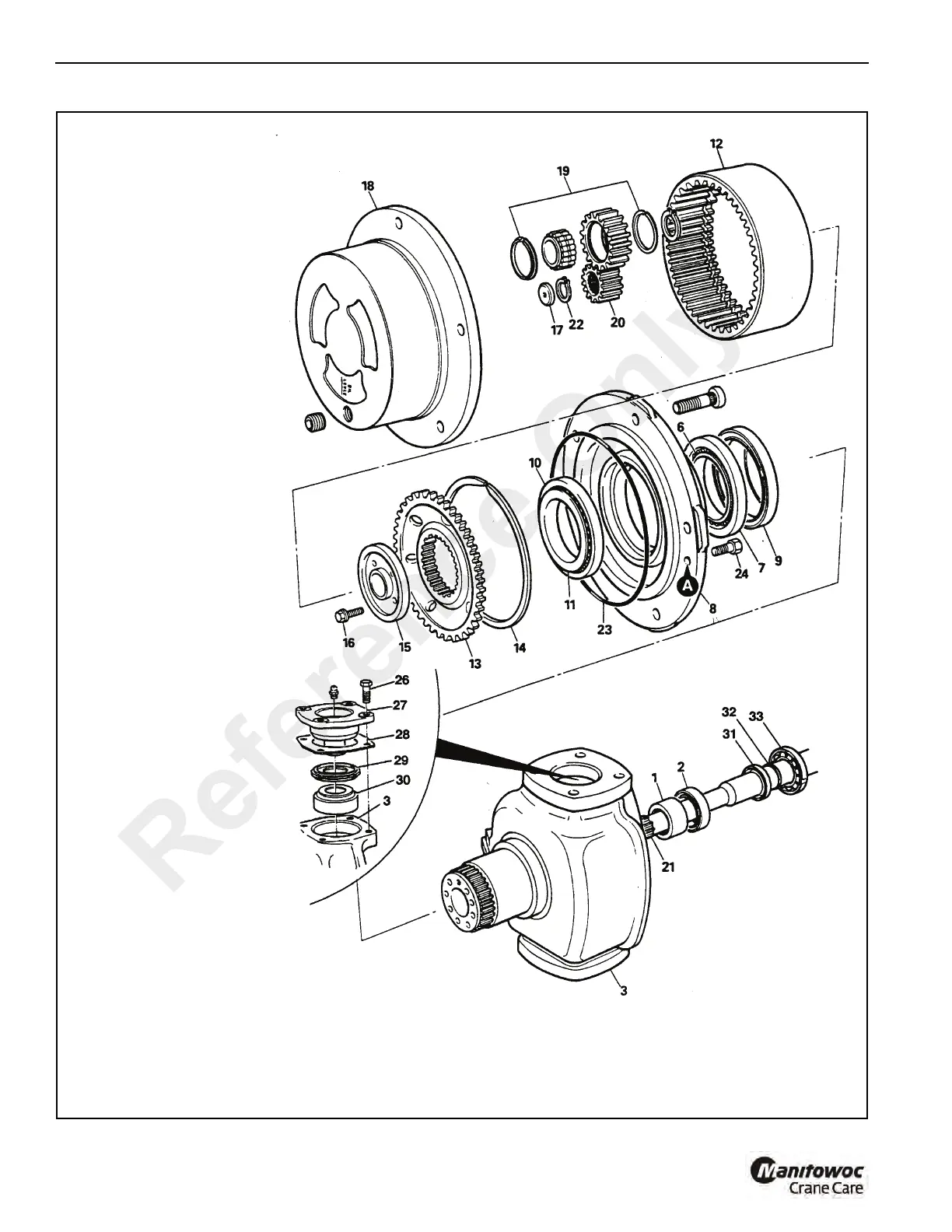

FIGURE 8-8

a0181

1. Bearing

2. Oil Seal

3. Hub Swivel

4. Snap Ring

6. Wheel Bearing Cone

7. Wheel Bearing Cup

8. Bearing Carrier

9. Combination Seal

10. Wheel Bearing Cone

11. Wheel Bearing Cup

12. Annulus Ring

13. Brake Carrier

14. Retaining Ring

15. Retainer Plate

16. Verbus Ripp Bolts (4)

17. Thrust Pad

18. Planetary Gear Carrier

19. Planet Gear Assembly (3)

20. Sun Gear

21. Drive Shaft

22. Snap Ring (3)

23. O-Ring

24. Capscrew (2)

26. Trunnion Bolts (8)

27. Trunnion (2)

28. Shim

29. Seal (2)

30. Bearing (2)

31. Oil Seal

32. Retaining Ring

33. Bearing


