STRUCTURALS 5540F/YB5515 SERVICE MANUAL
11-10
*
*
*
*
*
*

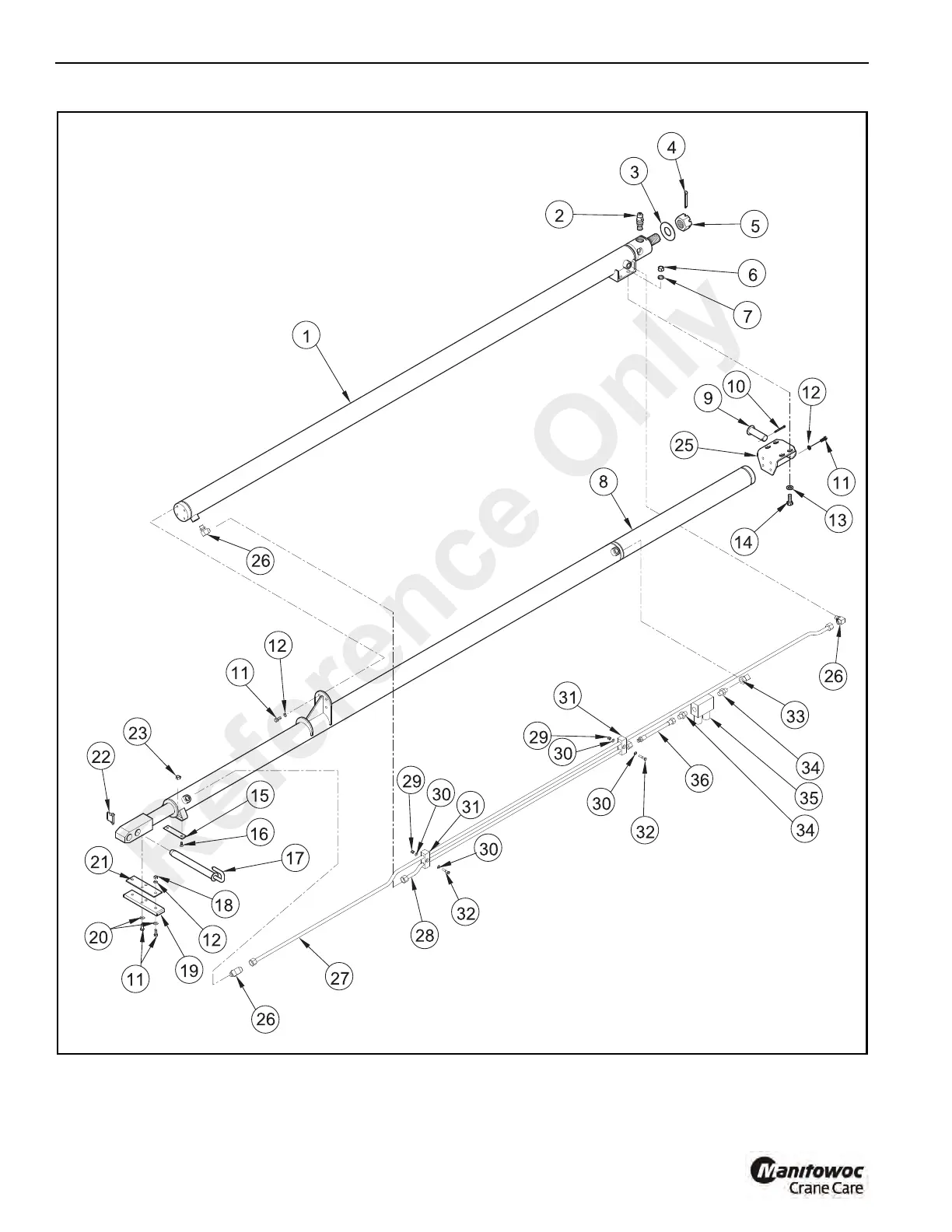

FIGURE 11-11
11527-A
1. Upper Telescope Cylinder
2. Counterbalance Valve
3. Washer
4. Cotter Pin
5. Nut
6. Nut
7. Lockwasher
8. Lower Telescope Cylinder
9. Pin
10. Cotter pin
11. Bolt
12. Lockwasher
13. Washer
14. Bolt
15. Wear Pad
16. Bolt
17. Pin
18. Nut *
19. Guide Pad *
20. Washer *
21. Pad Support Bar *
22. Snapper Pin
23. Nut
24. Omitted
25. Bracket
26. Elbow
Fitting
27. Tube
Assembly
28. Tube
Assembly
29. Nut
30. Washer
31. Tube Block
32. Bolt
33. Elbow Fitting
Reference Only
