11-49

5540F/YB5515 SERVICE MANUAL STRUCTURALS

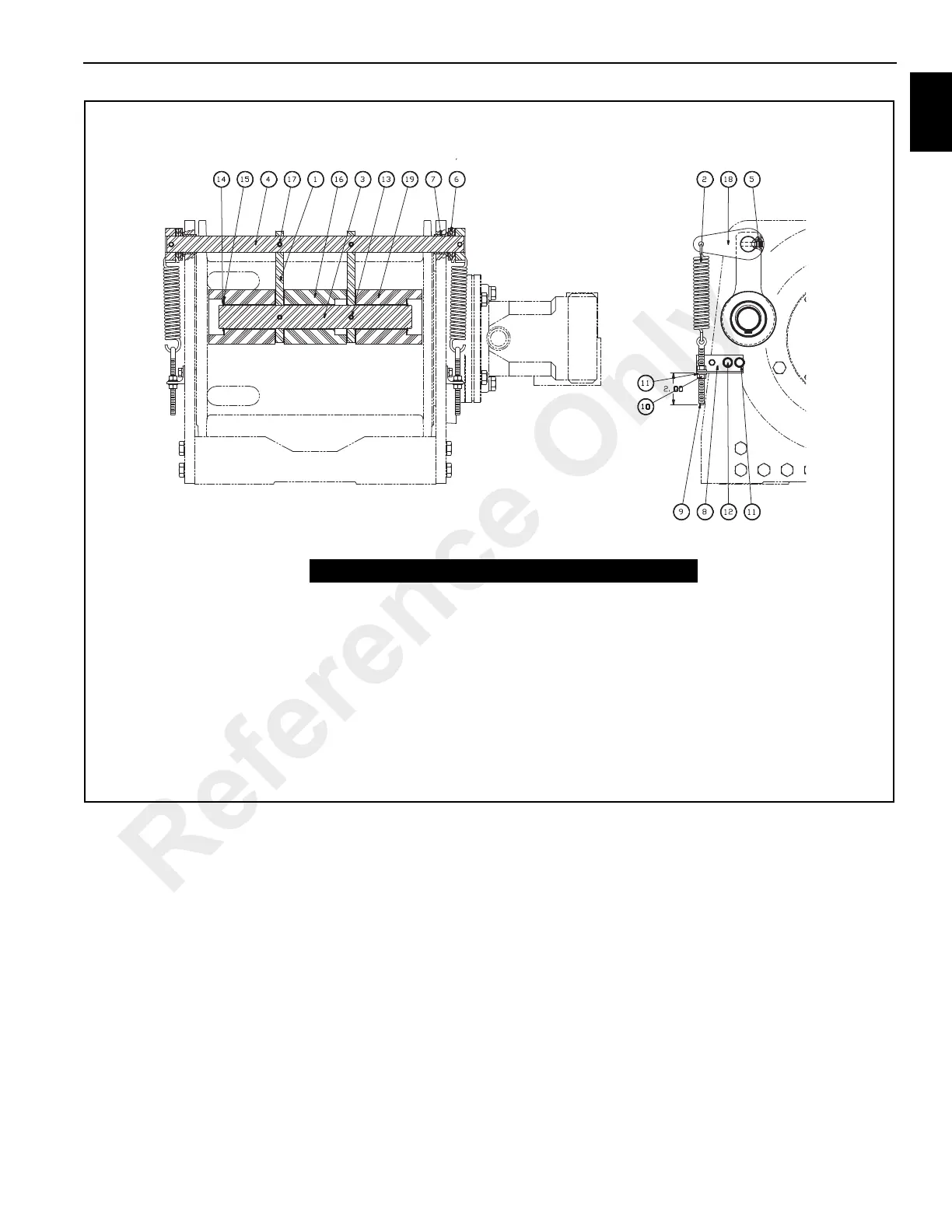

FIGURE 11-120

a2270

Winch Tension Roller Subassembly Cut-Away View

Item Description

1. Tension Roller Arm

2. Tension Spring (2)

3. Tension Roller Shaft

4. Tension Arm Shaft

5. Set Screw (2)

6. Washer (6)

7. Roller Bushing (2)

8. Spring Anchor (2)

9. Roller Rod End (2)

10. Nut (4)

Item Description

11. Lockwasher (8)

12. Capscrew (4)

13. Roll Pin (2)

14. Snap Ring (2)

15. Thrust Race (2)

16. Roller

17. Roll Pin (2)

18. Lever Arm (2)

19. Roller (2)

Reference Only
