STRUCTURALS 5540F/YB5515 SERVICE MANUAL

11-58

FIGURE 11-127

a0489

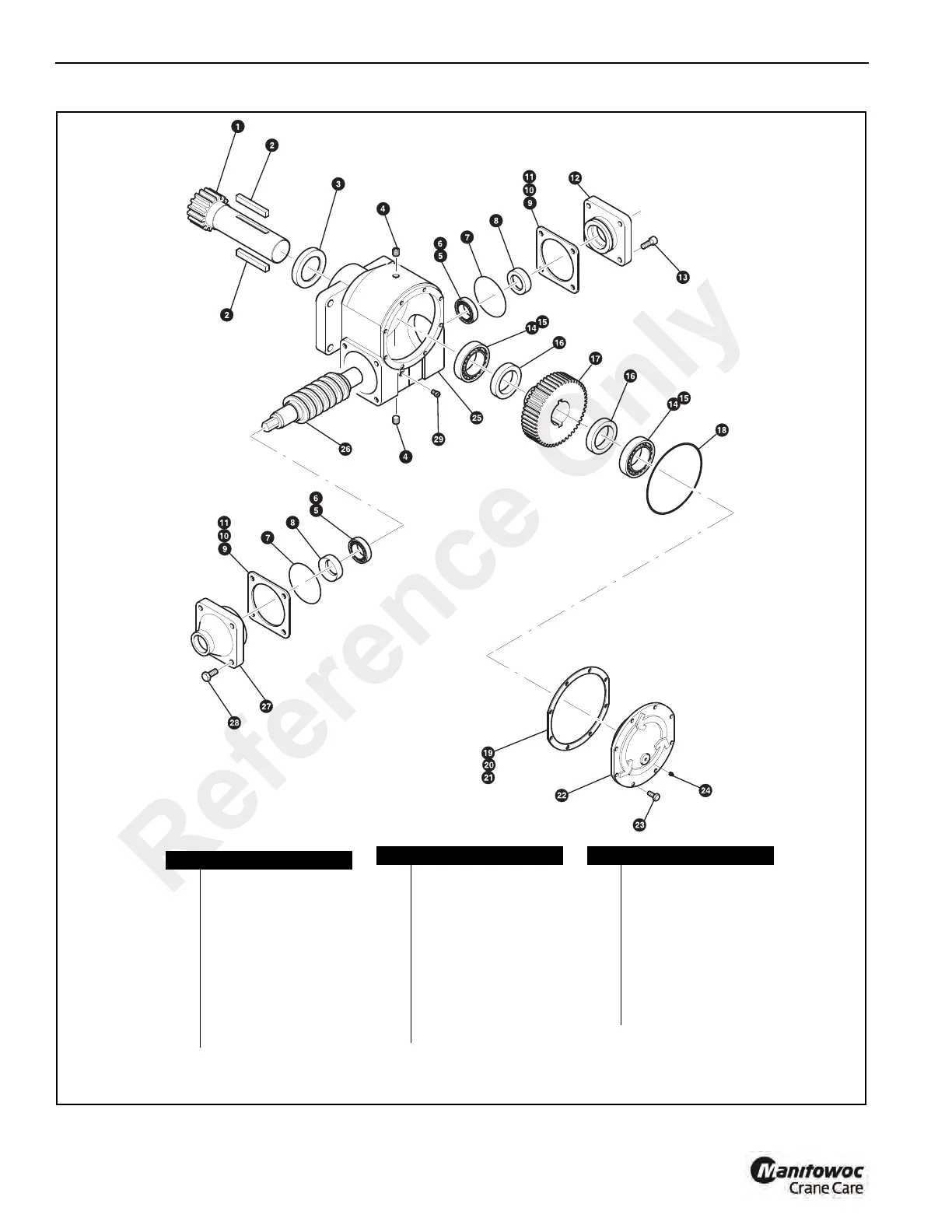

Tulsa Swing Gearbox Exploded View

Item Description

1 Pinion Shaft

2Key (2)

3 Oil Seal

4 Pipe Plug (2)

5 Bearing Cup (2)

6 Bearing Cone (2)

7 O-Ring (2)

8Seal (2)

9Shim (2)

10 Shim (2)

11 Shim (2)

12 End Motor Cap

13 Socket Head Capscrew

14 Bearing Cup (2)

15 Bearing Cone (2)

16 Spacer (2)

17 Worm Gear

18 O-Ring

19 Shim

20 Shim

Item Description

21 Shim

22 Cover

23 Capscrew (8)

24 Grease Fitting

25 Housing

26 Worm

27 End Cap

28 Capscrew (4)

29 Breather

Item Description



Reference Only
