WiringSeparation
Allhighvoltageandnon‐powerlimitedwiringmustbeseparatedfrompowerlimitedwiring.Aseparationofat
least1/4inchmustbemaintainedwithhighvoltageandnon‐powerlimitedwiringrunninginseparateconduit
openingsfrompowerlimitedwiring.


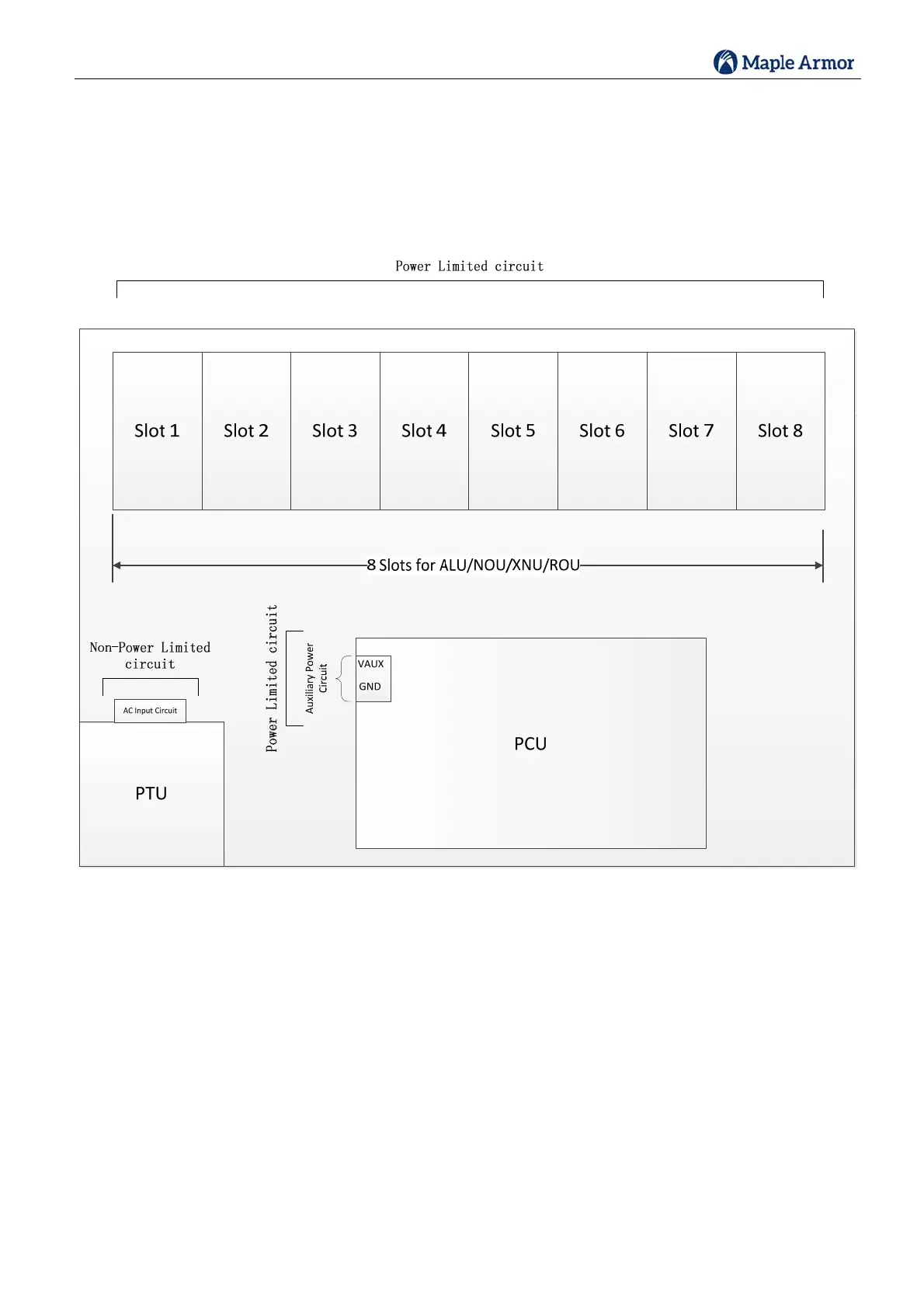

Figure17WiringTerminalsLocation

PowerSupplyWiring
ACConnection
WiretheACsupplytothepowersupplyonthebackoftheenclosure.Thesupplyshouldoriginatefroma
dedicated15Abranchcircuit.Itshouldbeprovidedwithabreakerorothermeansofisolationthatmustbe
coloredred.
