 Dangerousvoltageswillbepresentontheterminalblockandonothercomponentssurroundingit
whentheACsupplyisturnedon.Donottouch.

 ACInputterminalsmustbelocatedontheleftsideoftheenclosureand intheknockoutspositionshownin
Figure18.

Route
all high voltage and non‐power limited wiring together and away fr om power limited
wiring.RefertothePowerLimitingsectionformoredetails.



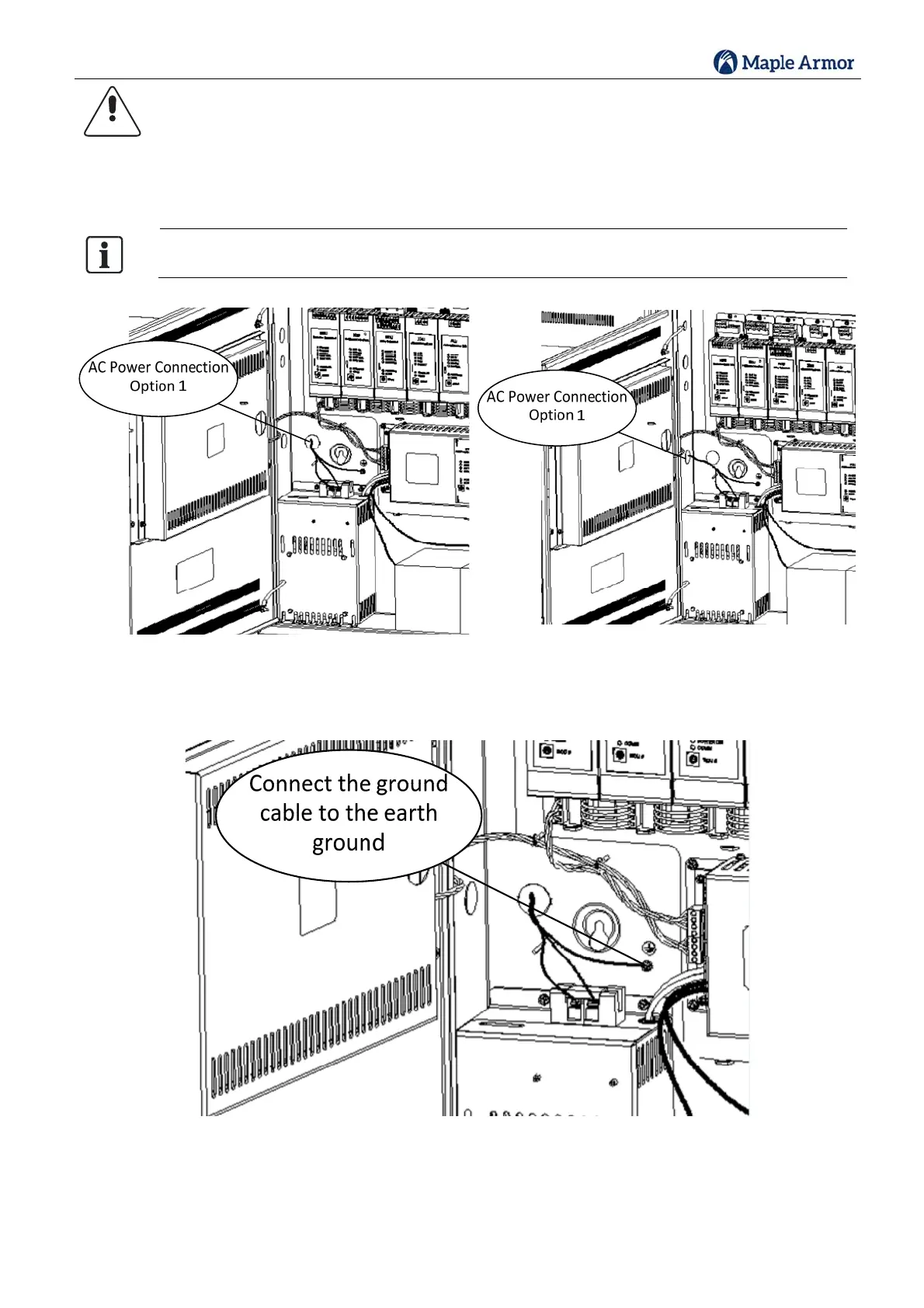

Figure18ACPowerSupplyWiring

Connectthegroundcabletotheearthstudontheenclosurebackbox.

Figure19GroundWiring
CAUTION
