PositiveAlarmSequence(PAS)
WhenanalarmcausingdeviceassociatedwithazonewithPASfeatureisinitiated,thealertconditionisreported
onthepanel.Theactivationofallsystemevacuationsignalsaredelayedfor15seconds(PASdelaytime)waiting
foramanualacknowledgementresponse.
If no response is received within  15 seconds,
 the panel proceeds to activate system evacuation signals. See
FigureA.
If the alarm event is acknowledged during the PAS delay time, the programmable  PAS investigation time (180
seconds)isaddedtothePASdelaytimebeforesystemevacuationsignalsareactivated.SeeFigureB.
However, if a 2nd alarm
is initiated anytime during the PAS delay time or PAS investigation time, the system
evacuationsignalsareimmediatelyactivated.SeeFigureC.
Pressingthe Reset buttonat anytime during the PAS sequence will initiatea reset condition and try torestore
thepaneltost and‐bystate.


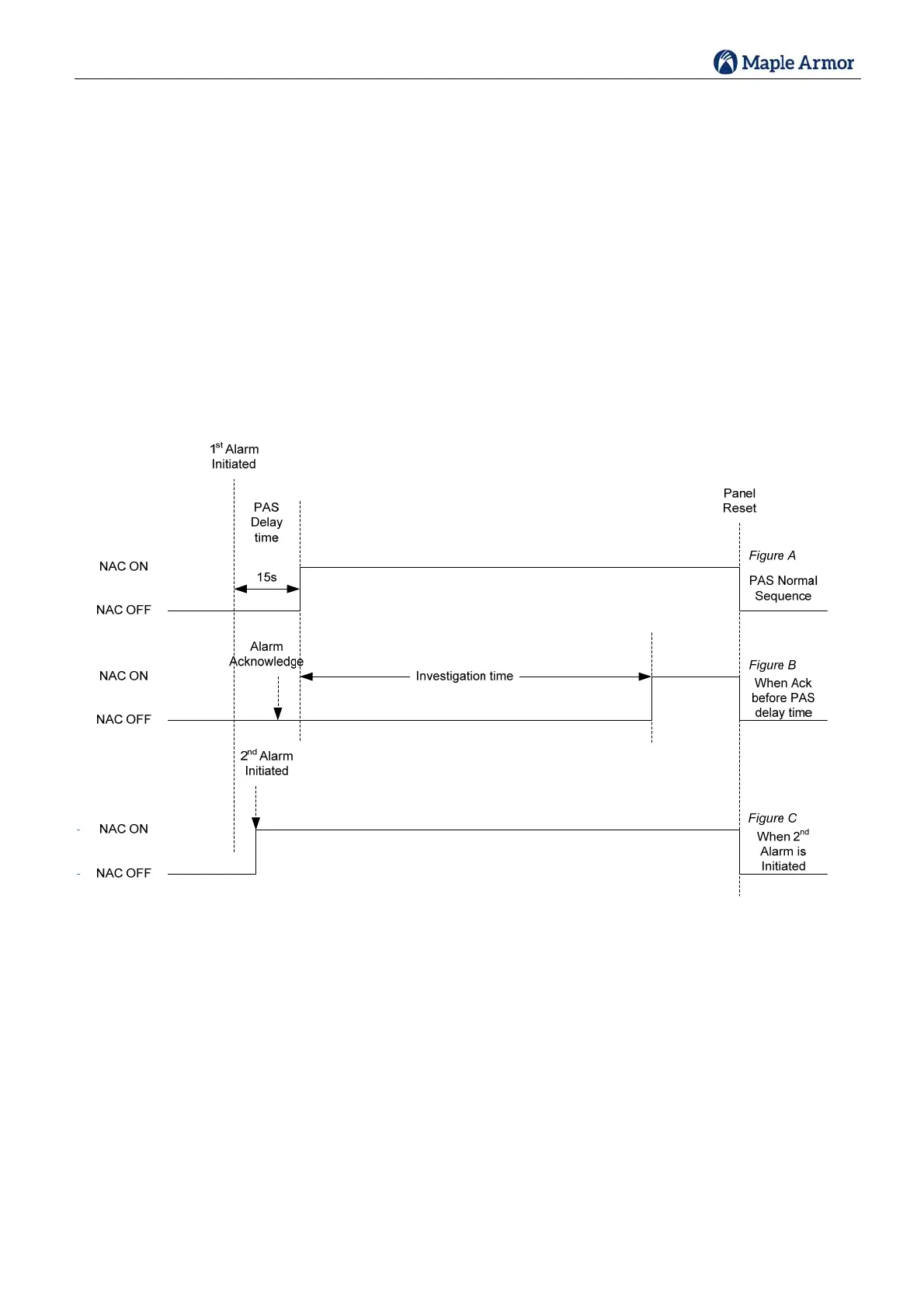

Figure33PositiveAlarmSequence
 
