TSC 900 TRANSFER SWITCH CONTROLLER
PM 151 REV 1 15/10/08 Thomson Power Systems

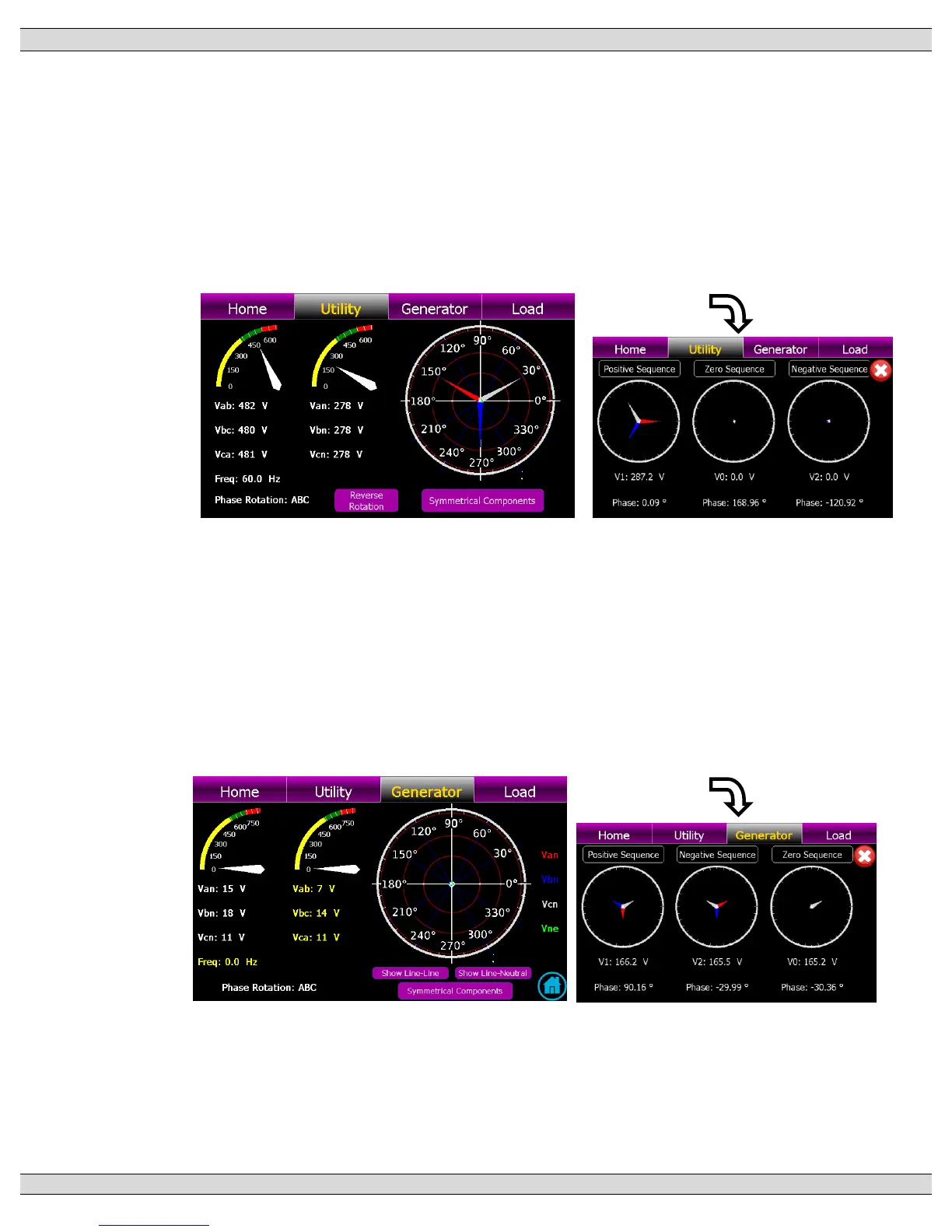

3.5.2. UTILITY METERING PAGE
The utility metering page provides detailed voltage and frequency metering data for the
utility supply. Metering data is displayed in both text and graphical representation. On
3 phase systems, all phase to phase and phase to neutral voltages are displayed as
well as a Phasor diagram showing relative phase angles and magnitudes between
phases. A shortcut button is provided to access the Utility Symmetrical components
information screen as follows:
3.5.3. GENERATOR METERING PAGE
The generator metering page provides detailed voltage and frequency metering data
for the generator supply. Metering data is displayed in both text and graphical
representation. On 3 phase systems, all phase to phase and phase to neutral voltages
are displayed as well as a Phasor diagram showing relative phase angles and
magnitudes between phases. A shortcut button is provided to access the Generator
Symmetrical components information as shown for Utility Metering.
