TSC 900 TRANSFER SWITCH CONTROLLER
PM 151 REV 1 15/10/08 Thomson Power Systems

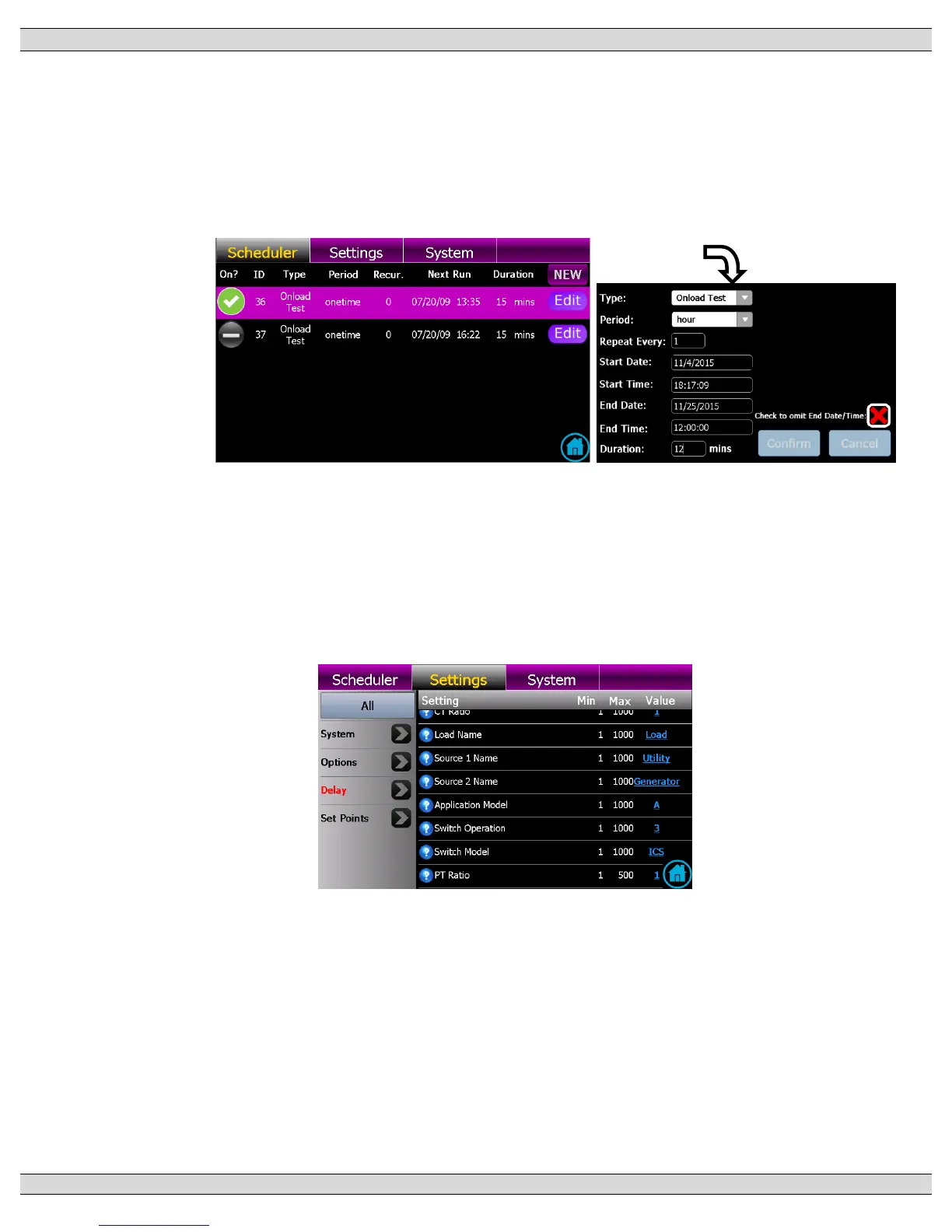

3.5.9. SCHEDULER PAGE
The scheduler page is utilized to set on load or off-load Exercise events using a
calendar based scheduler. Multiple exercise events, dates and times can be selected.
By pressing the “New” or “Edit” buttons a pop-up menu will appear as shown below.
Refer to Operating Instruction section of this manual for further details on how to
configure the Exercise Scheduler.
3.5.10. SETTINGS PAGE
The settings page is utilized for programming or configuring any timer, voltage set
point, frequency set point, I/O mapping or optional features in the controller. The
settings can be viewed via different filter settings based on function. Refer to the
Programming section of this manual for further details on function programming.
