Marathon TSC 900 - Programmable Input Mapping; Rated Generator Power Setting; CT Ratio (Current Transformer); PT Ratio (Potential Transformer)

TSC 900 TRANSFER SWITCH CONTROLLER
PM 151 REV 1 15/10/08 Thomson Power Systems
51

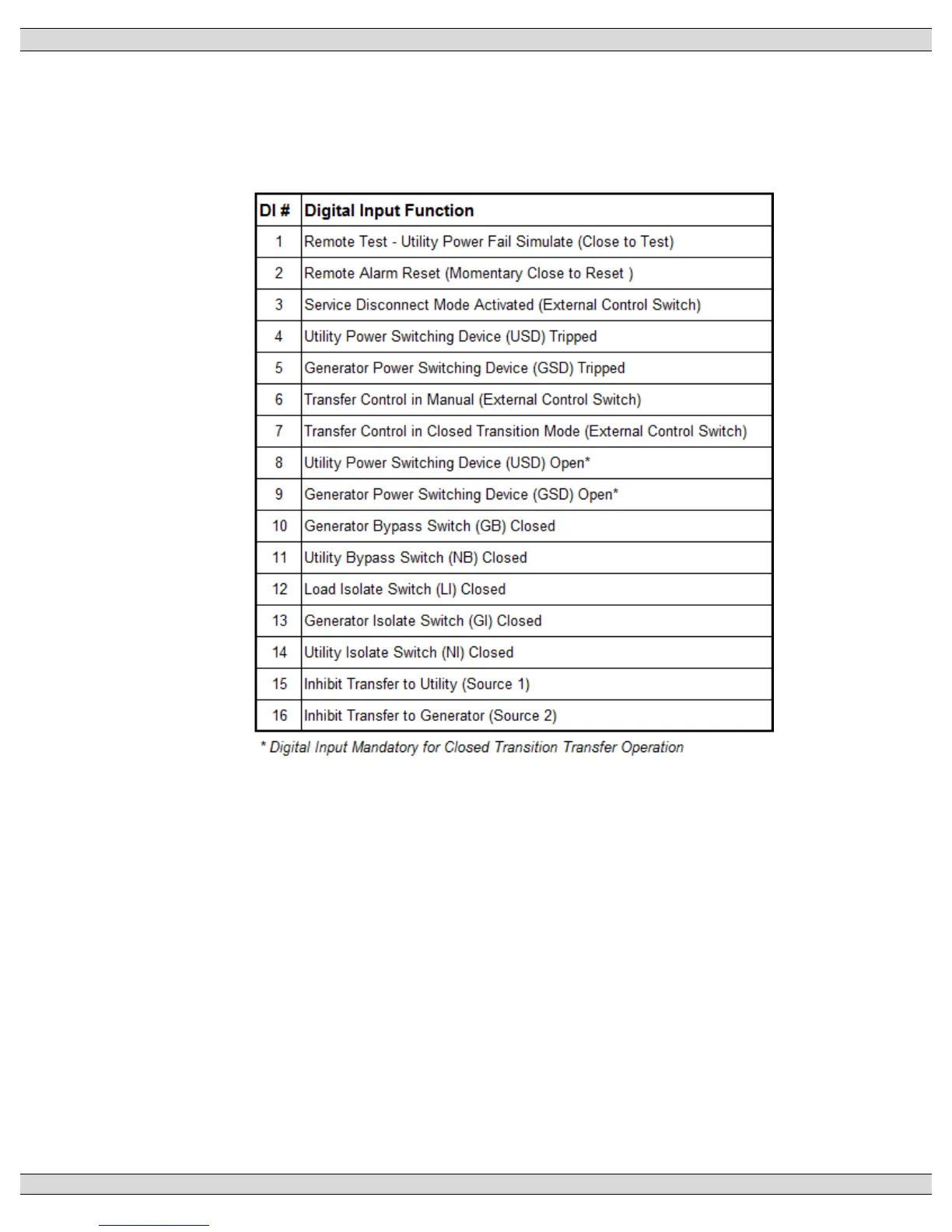

5.7. PROGRAMMABLE INPUT MAPPING
All 16 Programmable inputs can be mapped to a number of different parameters to suit the
application. The TSC 900 is factory programmed with the following programmable input
mapping defaults:
