TSC 900 TRANSFER SWITCH CONTROLLER
PM 151 REV 1 15/10/08 Thomson Power Systems

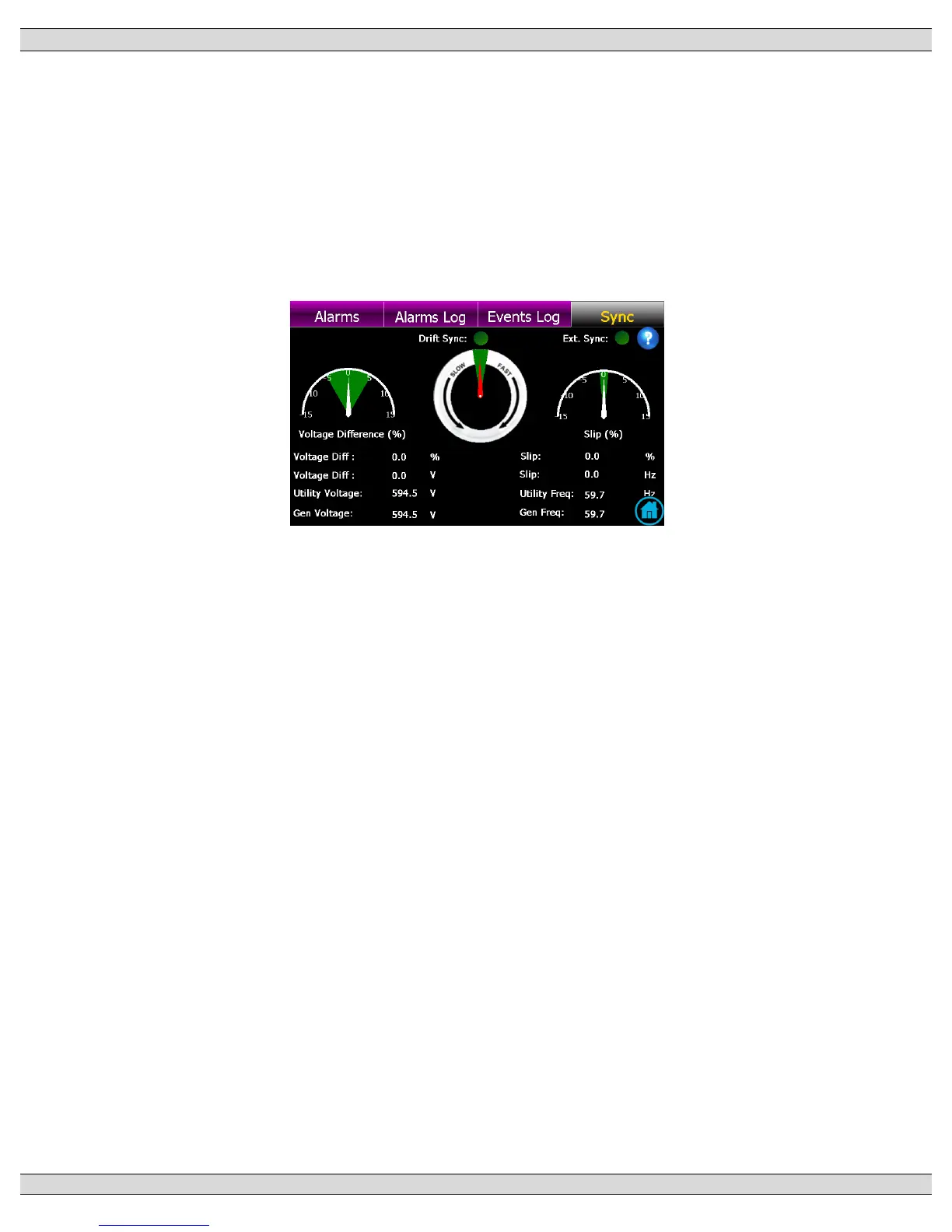

3.5.8. SYNC PAGE
The virtual synchroscope page is utilized for applications when the ATS is provided
with closed transition or fast in-sync transfer capability. This page will display the
phase angle difference, voltage difference and slip frequency difference between two
available sources.
Note: The Sync page is only visible if the ATS model is capable of closed transition
transfer operation or open transition in-sync transfer operation
