TSC 900 TRANSFER SWITCH CONTROLLER
PM 151 REV 1 15/10/08 Thomson Power Systems
4. OPERATING INSTRUCTIONS

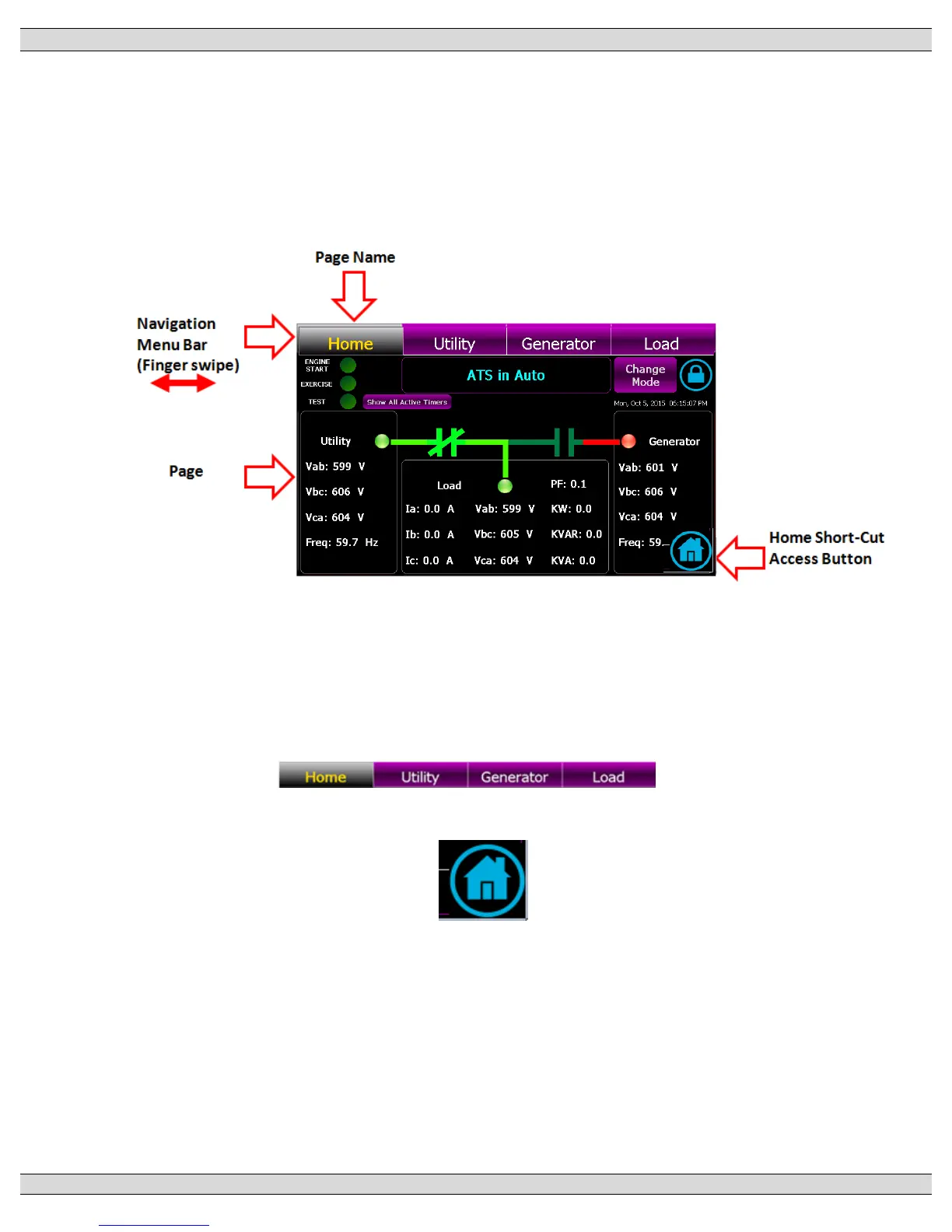

The GHC software provides the TSC 900 control and monitoring information which is visible on the
GHC Display or remote PC. All screen page navigation is controlled by a touchscreen display using a
“finger swipe” motion and/or button press actions. The GHC has pre-programmed display pages
which are selected manually using the touchscreen display. The following screen naming conventions
will be used throughout the document when describing the GHC software screens:
4.1. GHC SCREEN PAGE NAVIGATION
Two methods are available to manually select a desired screen page as follows:
1) Navigation Menu Bar –a finger swipe motion can be used (swipe left or right) on
the menu bar itself.
2) Home Short-Cut Button - To directly access the Home Page from any screen
press the following ICON:
To Next Page
