6.5 Dip-Switch programming

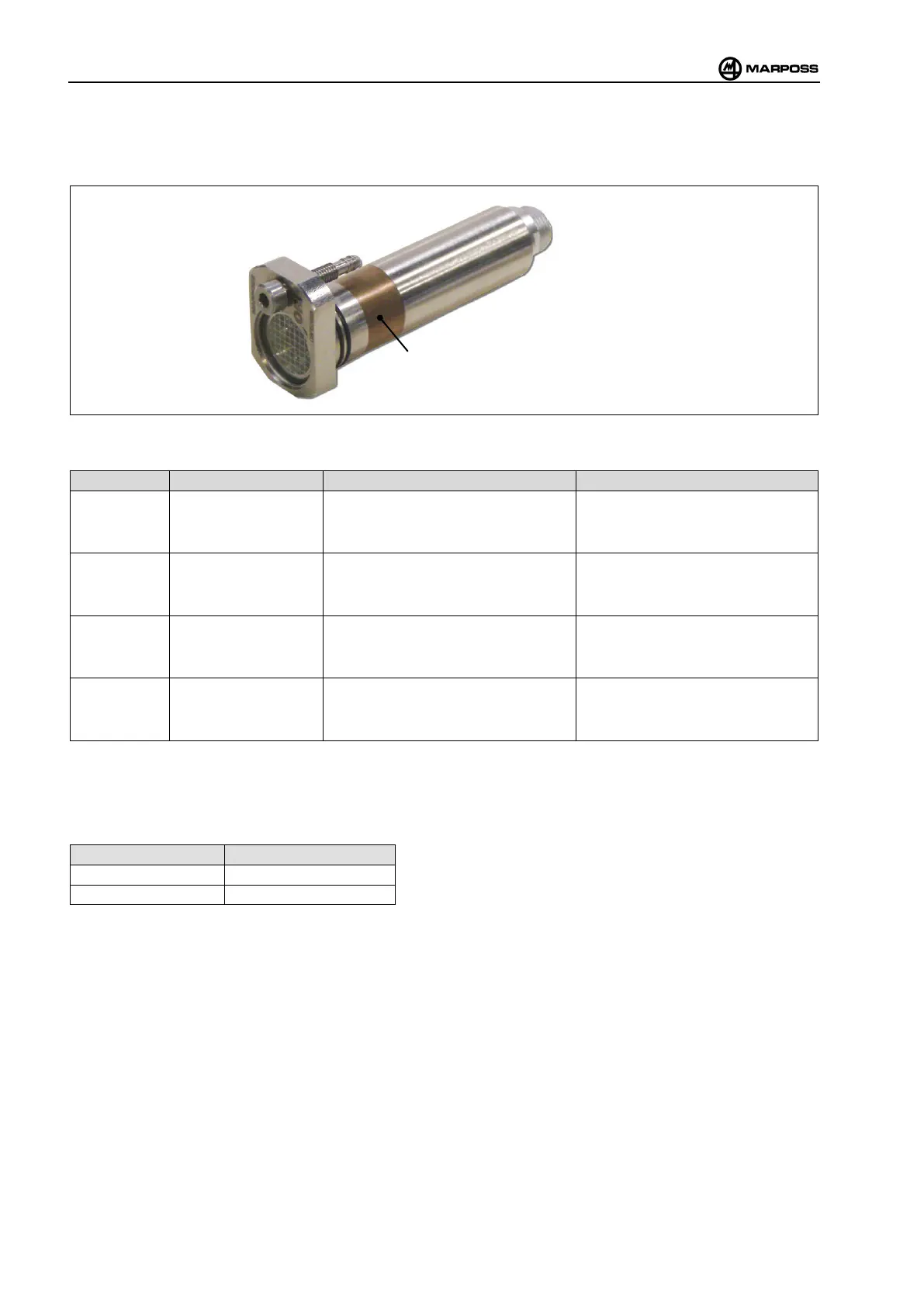

The system is programmed by a series of DIP_SWITCHES accessed by turning the ring D (Figure 6-7):
Figure 6-7. Dip-Switch programming.
DIP-SWITCH
NOME
OFF
ON
1 SKIP ENABLE
PROBE OUTPUT=SKIP (*pulse to 0
each time the probe status changes)
PROBE OUTPUT=NORMAL (probe
status; at rest or deflected)
2 PROBE POLARITY Probe output contact N.C. N.O.
3
LOW BATTERY
POLARITY
N.C. N.O.
4
SELECTIVE
ACTIVATION
Selective activation
Activated
Selective activation
Deactivated
N.C.Normally closed
N.O.Normally open
* 44ms pulse each time the touch status changes
DIP SWITCH 4
IDENTIFICATION CODE
Open / 0V
1 (A)
24V
2 (B)
D
