© Martin Engineering GmbH 26 M3727UK-09/15
Installation
2. Route the safety cable (C) through the lock washer and make
a loop with an 80 mm diameter.
3. Install a cable clip (D) as closely to the loop as possible and an
additional cable clip at a distance of around 40 mm.
4. The free end of the safety cable, however, must be at least
25 mm in length.
5. Tighten the screws alternately and evenly to a defined torque,
see Table 2.
6. Repeat steps 2-5 on the air cannon tank.

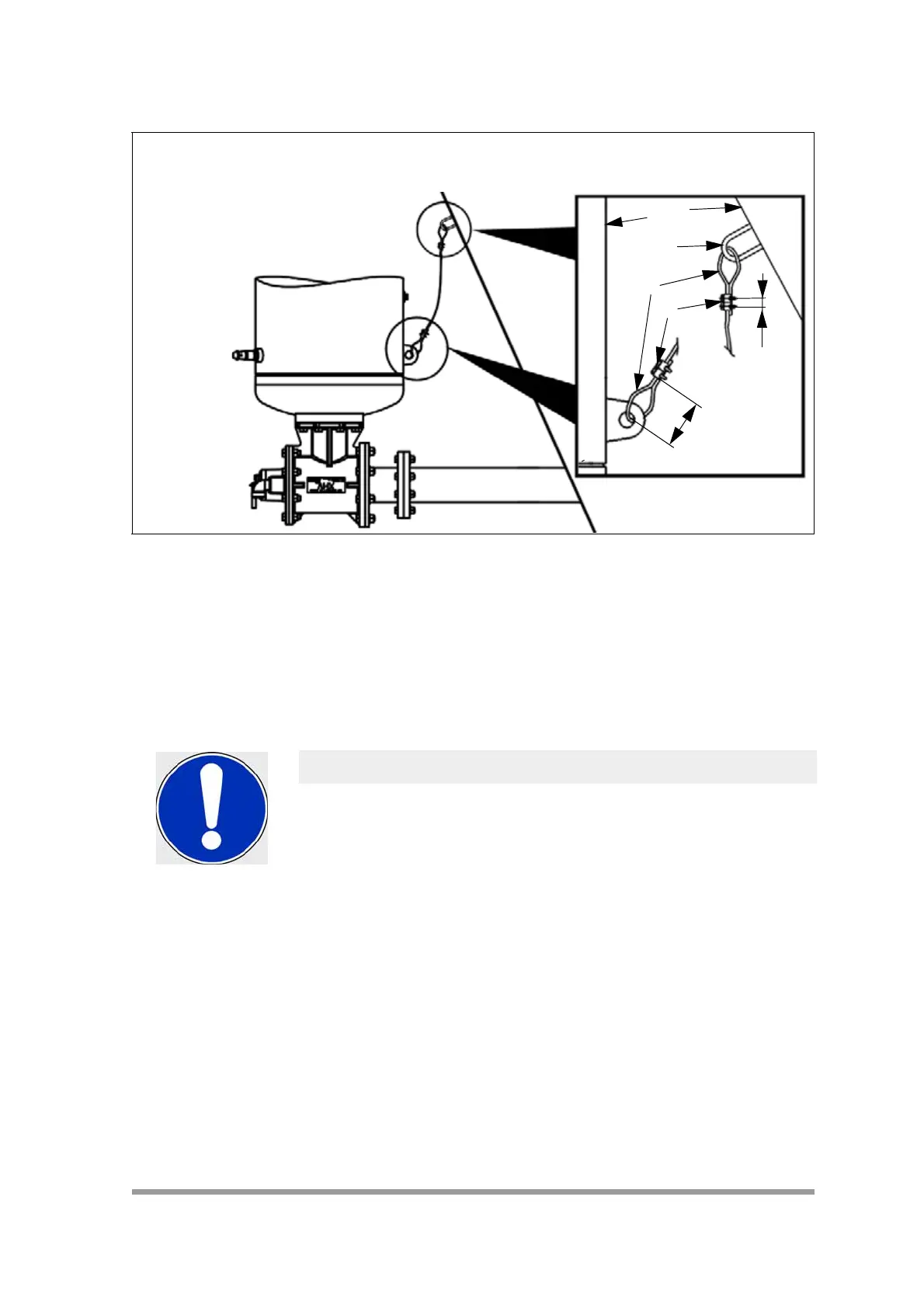

Fig. 6
NOTE
Install the safety cable with a sag of 50 to 75 mm. Secure the ends
of any shortened ropes against protruding wires (risk of injury).
A. Lock washers (2)
B
A
C
D
E
40
8
0
E. Air cannon tank
Cable clips (4)D.
Safety cable
C.
B.
rings (2)
Container wall
