Martin Tornado - MARTIN TORNADO 6-Inch Venting Valve

© Martin Engineering GmbH 57 M3727UK-09/15
Part numbers
9.6 MARTIN
®
TORNADO 6-inch venting valve

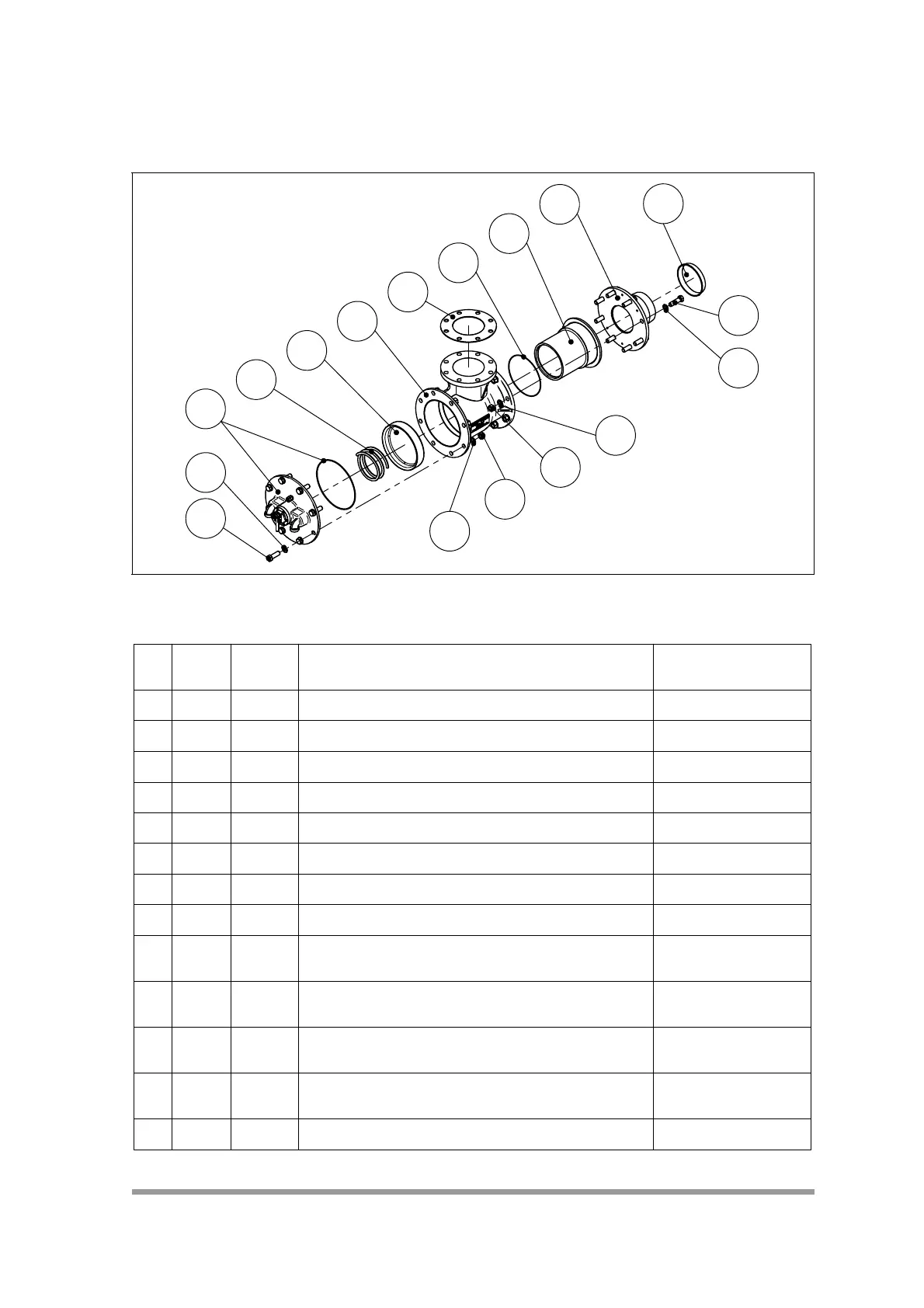

Fig. 21: Part no. 37852-E+E
12
9
12
8
3
7
2
5
6
1
4
13
10
12
11
12
11
ND
Item /
Pos.
Qty. /
Anz.
Description / Beschreibung P/N / Teile-Nr.
1 1 Piston seat 6" / Kolbensitz 36113
2 1 Valve body 6" / Ventilgehäuse 36114
3 1 Compression spring 6" / Druckfeder 36167
4 1 Discharge flange 6" / Ausblasflansch 36170+E
5 1 Gasket 6" / Flachdichtung 36173+E
6 1 O-Ring Ø8,7" / O-Ring 36262
7 1 Dual Seal Piston 6" / Dual Seal Kolben 37963+E
8 1 Tornado valve cap 6" / Tornadoventildeckel 37986-E+E
98
HHC screw M20 x 60 - DIN 933, (1.0032) galv. /
Sechskantschraube
41081-20060BZP88
10 8
HHC screw M20 x 70 - DIN 933, (1.0032) galv. /
Sechskantschraube
41081-20070BZP88
11 16
Hex nut M20 - DIN 934, (1.0032) galv. /
Sechskantmutter
41086-20BZP
12 32
Washer spring M20 - DIN 127, (1.0032) galv. /
Federring
41090-20AZP
13 1 Plastic cap 6" / Plastikkappe 36264
