Part numbers
9.9 MARTIN
®
TORNADO 4-inch venting valve

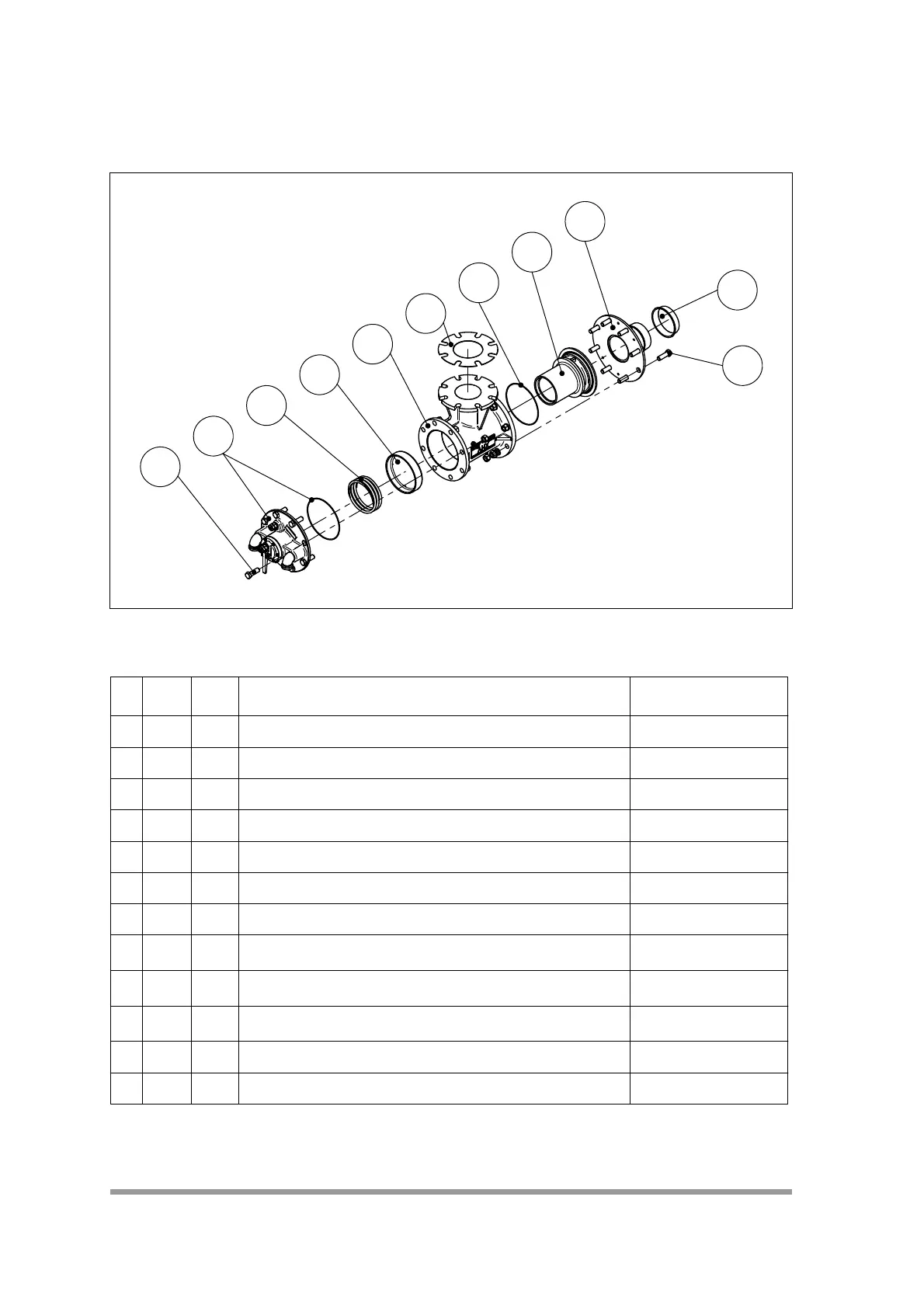

Fig. 24: Part no. 37797-E+E
5
12
8
7
8
3
6
2
11
4
1
ND
Item /
Pos.
Qty. /
Anz.
Description / Beschreibung P/N / Teile-Nr.
1 1 Piston Seat 4" / Kolbensitz 35075+E
2 1 Valve body 4" / Ventilgehäuse 35076+E
3 1 Compression spring 4" / Druckfeder 35077+E
4 1 O-Ring 171,1mm ID x 2,6mm CS Viton / O-Ring* 35078+E
5 1 Discharge flange 4" / Ausblasflansch 35081+E
6 1 Dual Seal Piston 4" / Dual Seal Kolben 37962+E
7 1 Tornado valve body cap 4" / Ventildeckel 37985-E+E
816
HHC screw M16 x 50 - DIN 933, (1.0032) galv. /
Sechskantschraube
41081-16050BZP88
916
Hex nut M16 - DIN 934, (1.0032) galv. /
Sechskantmutter
41086-16BZP
10 16
Washer spring M16 - DIN 127, (1.0032) galv. /
Federring
41090-16AZP
11 1 Gasket 4" / Flachdichtung 41385
12 1 Plastic cap 4" / Plastikkappe 25452+E
