Part numbers
9.12 MARTIN
®
TORNADO 2-inch venting valve

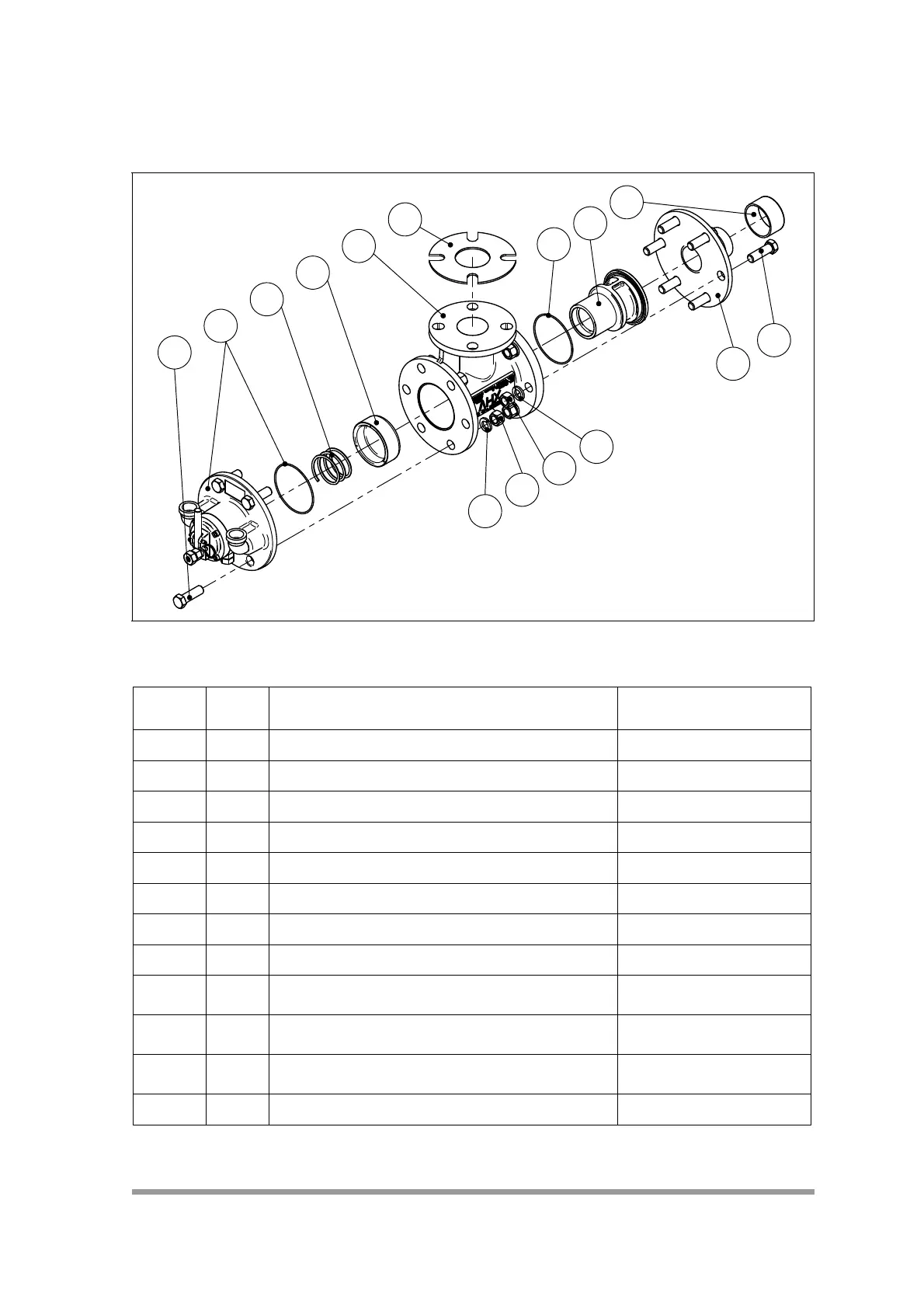

Fig. 27: Part no. 37862-E+E
9
11
10
1
11
2
12
6
9
4
3
7
8
5
10
Item /
Pos.
Qty. /
Anz.
Description / Beschreibung P/N / Teile-Nr.
1 1 Valve body 2" / Ventilgehäuse 35853-B
2 1 Discharge flange 2" / Ausblasflansch 35860+E
3 1 Piston seat 2" / Kolbensitz 35861
4 1 O-Ring 3-3/4" / O-Ring 35863
5 1 Compression spring 2" / Druckfeder 35865
6 1 Gasket 2" / Flachdichtung 35872
7 1 Dual Seal Piston 2" / Dual Seal Kolben 37961
8 1 Tornado valve cap 2" / Tornadoventildeckel 37984-E+E
910
HHC screw M16 x 50 - DIN 933, (1.0032) galv.
/ Sechskantschraube
41081-16050BZP88
10 10
Hex nut M16 - DIN 934, (1.0032) galv. /
Sechskantmutter
41086-16BZP
11 10
Washer spring M16 - DIN 127, (1.0032) galv. /
Federring
41090-16AZP
12 1 Plastic cap 2" / Plastikkappe 25451
