16 Wizard user manual
A termination plug is simply an XLR connector with a 120 ohm, 0.25 W resistor
soldered across pins 2 and 3.

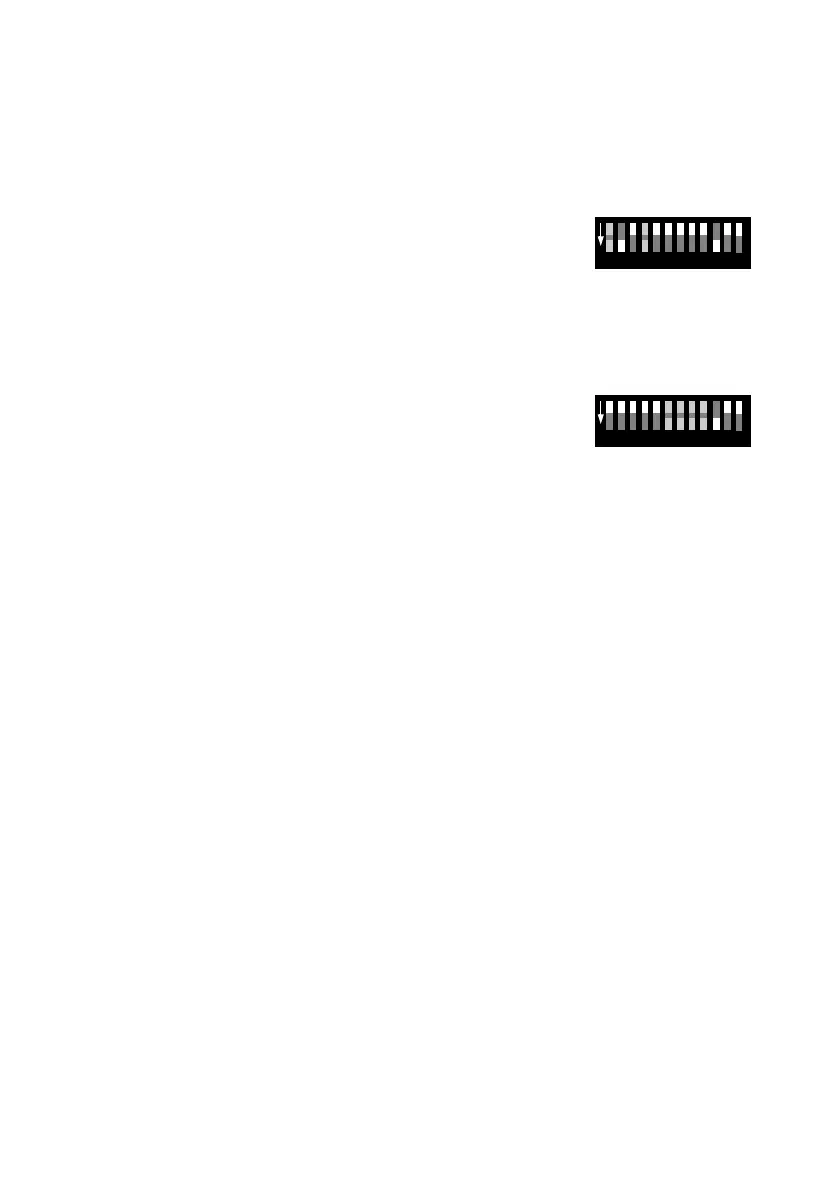

Setting the master
Important! Set only 1 fixture as master (DIP-switch pin 2 and 10 ON).
1 Set DIP-switch pins 2 and 10 to ON.
2 Set DIP-switch pins 3, 5, 6, 7, 8, 9, and 11 to OFF.
3 Select trigger and speed options with DIP-switch pins 1
and 4 (see “Stand-alone settings” on page 17).
Setting a slave
1 Set DIP-switch 10 to ON.
2 Set pins 1, 2, 3, 4, 5 and 11 to OFF.
3 Select options with DIP-switch pins 6, 7, 8, and 9 (see
“Stand-alone settings” on page 17). If none of these options are set then the slave
fixture will mimic the master exactly. Use these options if you want a slave fixture to
behave differently, for example, to make a show more interesting.
102 3 4 51 86 7 9
ON
1211
102 3 4 51 86 7 9
ON
1211
