INSTALLING
11
cod. G19503950
3
M
L
D
Fig. 9
G
Fig. 8
H
M1
O
P
N
Fig. 10

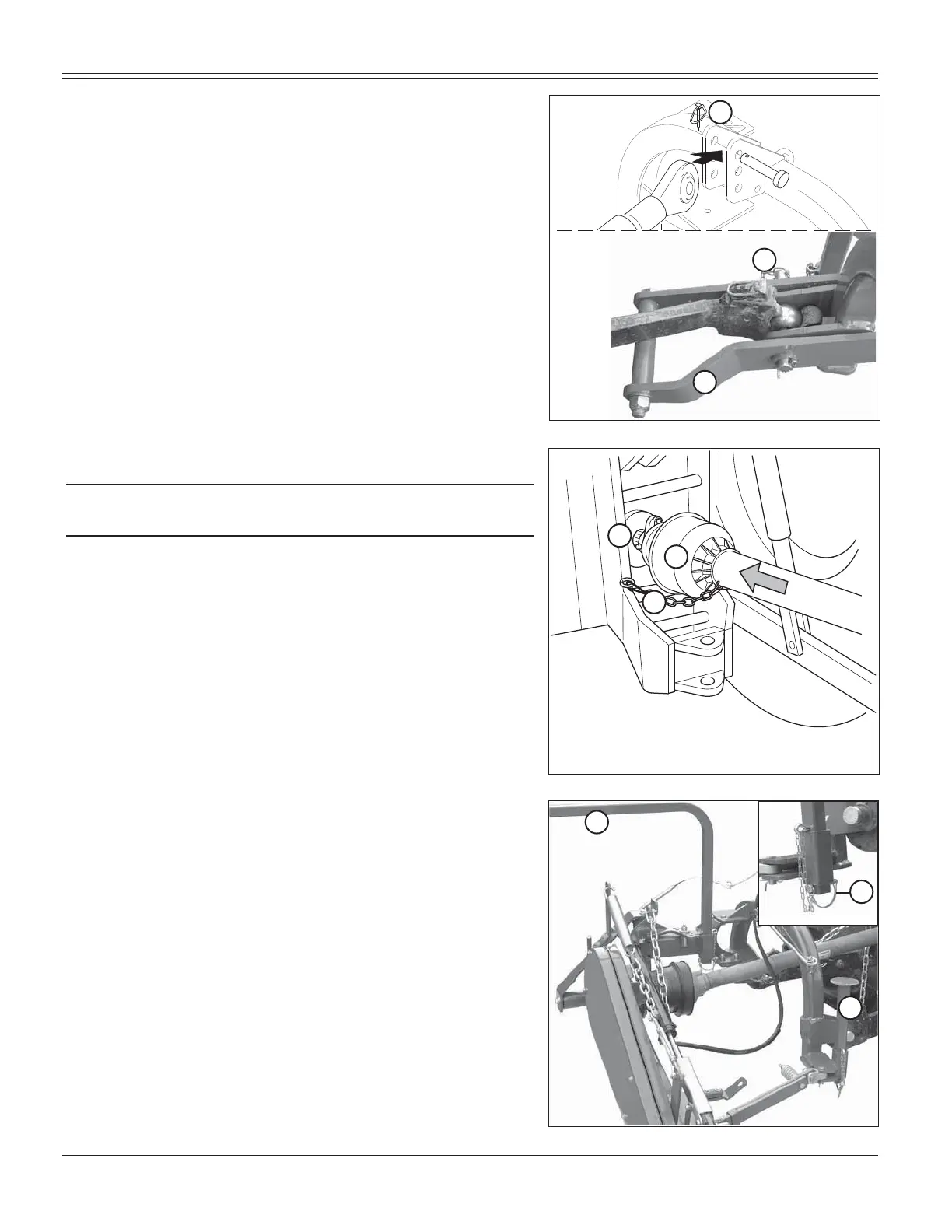

3. Hook the oscillating arms of the tractor to pins (E and
))LJ7KHKRLVWLQJDUP+)LJPXVWEH¿[HGXQ-
derneath the tractor arm. Lock in place with the snap-in
split pins (G Fig. 8)
4. Lock the lift links using the relative chains (I, Fig. 7)
and couplings parallel to the tractor. This operation must
be carried out to prevent the machine from moving in a
horizzontal direction.
5. Install PTO shaft to tractor (Fig. 9).
IMPORTANT: Sickle bar mower MUST BE level front
to rear.
Make sure PTO shaft is locked on the tractor PTO prior
to engagement (L). Check that the guard (M) is free to
WXUQDQG¿[LWZLWKWKHUHODWLYHODWFK0
6. Remove the guard over the cutters (16, Fig. 4) and
remove the tirant (7, Fig.4).
7. Lift-up sickle bar.
8. Remove spring locking pin (N, Fig. 10) from parking
stand.
9. Remove support (O and P, Fig. 10) and remount them,
upside-down in their seat .
10. Fasten with spring locking pin (N, Fig. 10).
