Maschio FIORE - OPERATING - HYDRAULIC LIFTING SYSTEM; Use of HYDRAULIC lifting system

OPERATING - HYDRAULIC LIFTING SYSTEM
22
cod. G19503950
3
Use of HYDRAULIC lifting system (Fig. 32)
To install the hydraulic lifting kit of the
mower, on versions with mechanical
lifting, it is necessary to remove some
parts of the equipment. Some pieces
to be detached from the equipment
are indicated on page 23 (ref. 1).
Install the Kit following the in-
structions given on page 23
(ref. 2 to 11).

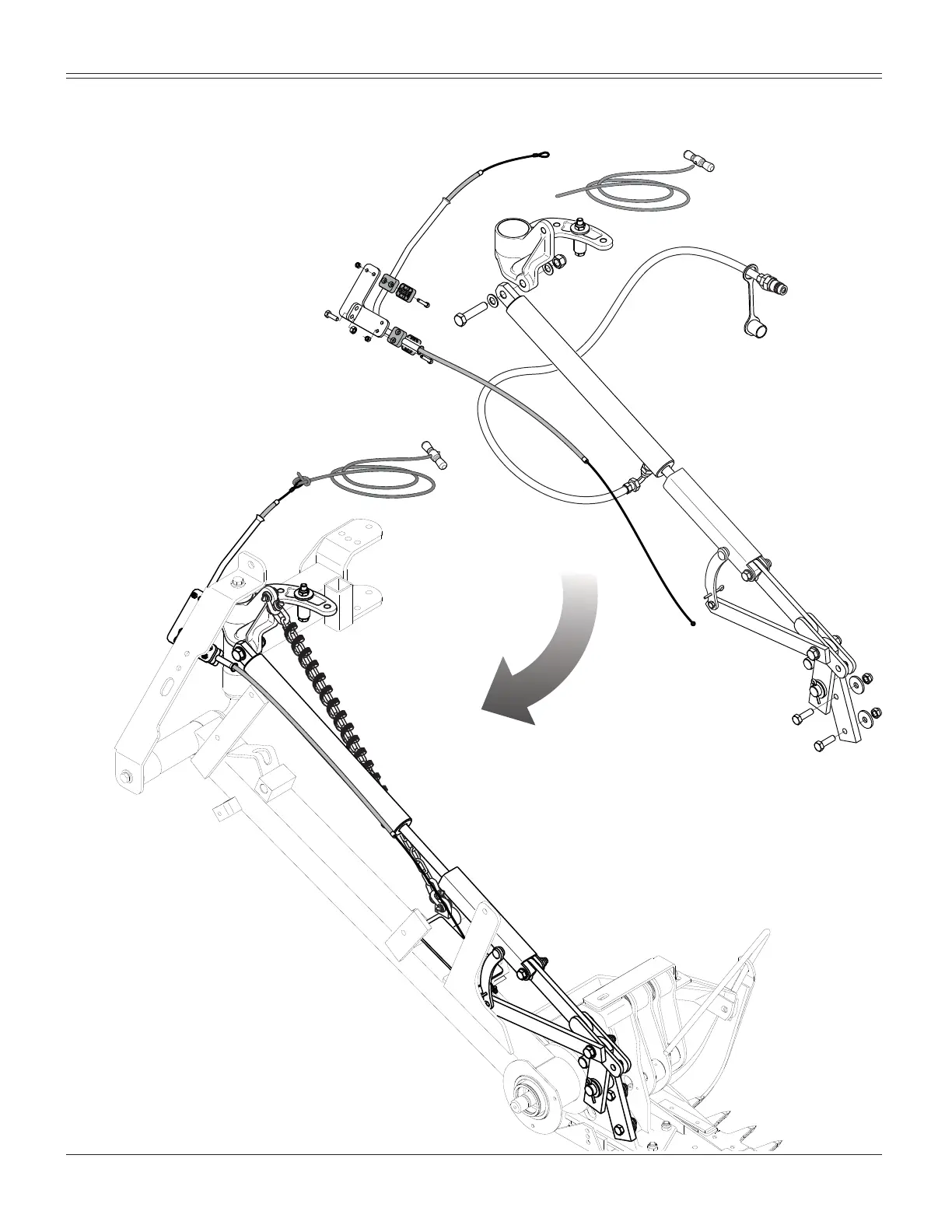

Fig. 32
