ASSEMBLY
43
cod. G19503950
3
Foreword

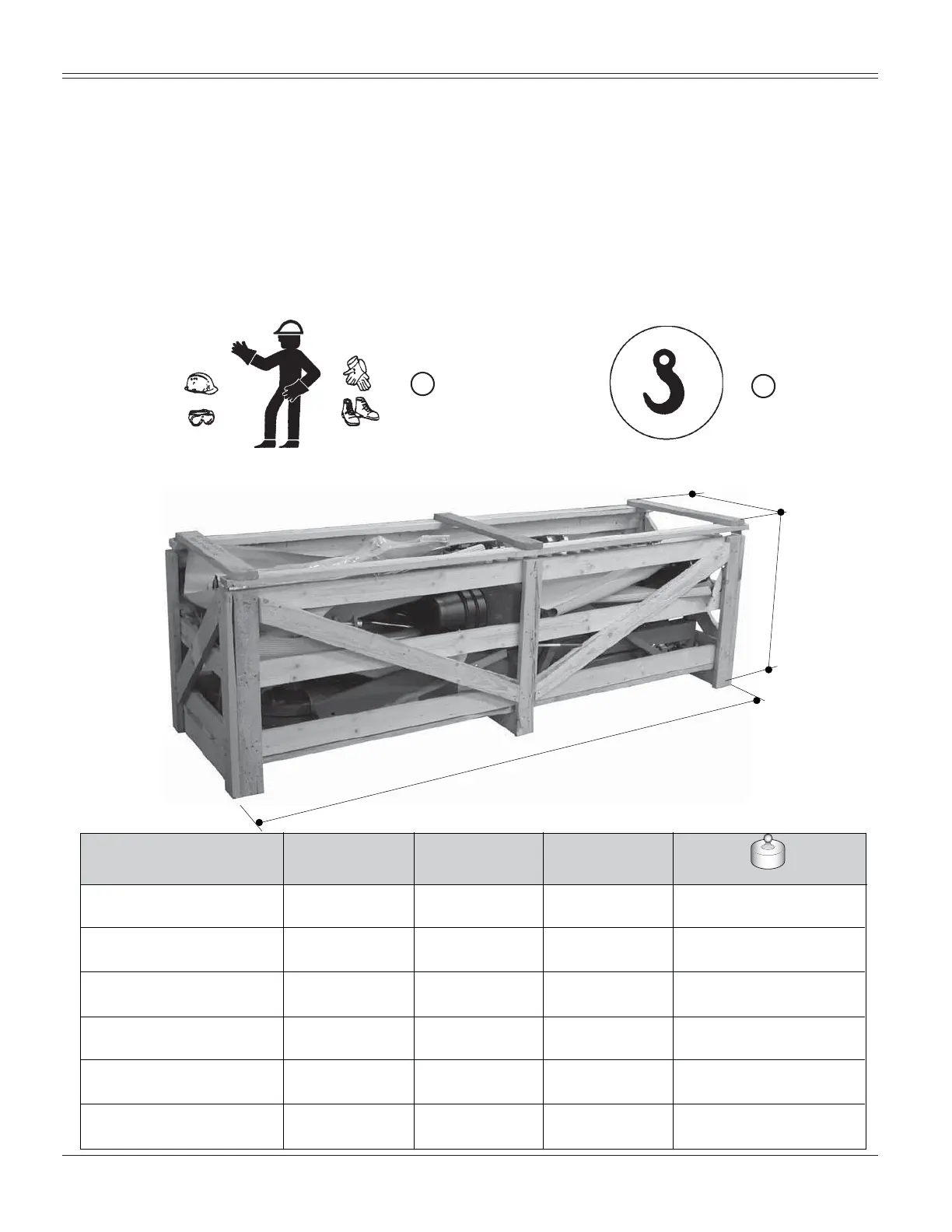

This chapter describes the phases involved in assembling a crated mower. When handling and assem-
bling the unit, and subsequently during use and maintenance, always use suitable personal protection
devices (A): always wear suitable clothing and the indicated protections. See the operating manual
supplied with the unit for indication of the symbols used in this manual. When handling the unit, lift it
by hooking up the special attachments and using a suitable hoist or crane rated for the weight of the
unit. This operation is quite dangerous and must only be performed by prepared, responsible person-
QHO7KHPDFKLQHZHLJKWLVLQGLFDWHGRQWKH,'ODEHO7KHKRRNXSSRLQWVDUHLGHQWL¿HGE\WKH³KRRN´
symbol (B). When moving the unit, make certain that all protections and safety devices are in place.
A
B
FIORE 175 (X2) 234 -  70 -  74 -  520 - 
FIORE 205 (X2) 234 -  70 -  74 -  560 - 
FIORE 235 (X2) 275 -  73 -  72,5 -  600 - 
FIORE 175 (X5) 234 -  140 -  100 -  1200 - 
FIORE 205 (X5) 234 -  140 -  100 -  1300 - 
FIORE 235 (X5) 234 -  140 -  100 -  1400 - 
A B C
(cm - LQFK)(kg - lb)(cm - LQFK)(cm - LQFK)
TYPE
A
B
C
Dimensions and weight
